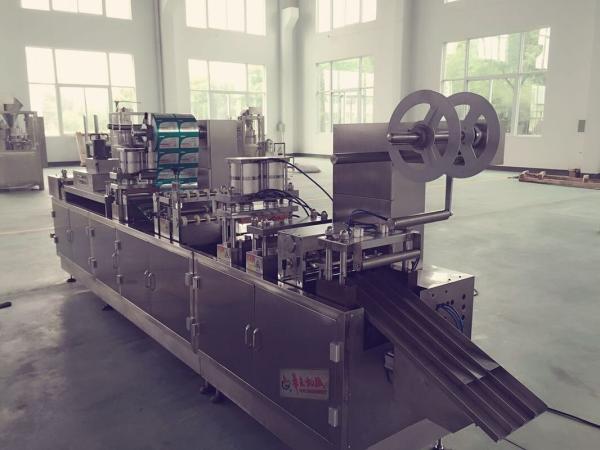

Pharmaceutical Automatic Tropical Blister Packing Machine For Soft Gel Capsule
Pharmaceutical Automatic Tropical Blister Packing Machine For Soft Gel Capsule
Specifications
Brand Name :
HUALE MACHINERY
Model Number :
DPP-250F
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1Set
Price :
$15000-$30000
Supply Ability :
5 Sets per month
Delivery Time :
within 1 months after receiving the machine deposit
Packaging Details :
packed with plastic film then fixed in export wooded box
Product Name :
Tropical Aluminum Plastic Aluminum Blister Packing Machine
Pulling :
Servo motor driving
Punch Pin :
PTFE（High temperature resistant, non stick coating）
Detection System :
Mechanical detection or Visual inspection
Used :
Alu-Plastic-Alu Blister and Alu-plastic Blister
Machine Model: :
DPP-250F
Certification: :
CE and ISO9001
Description

Pharmaceutical AutomaticTropical Blister Packing Machine For Soft Gel Capsule

Quick Features:

Machine Model: DPP-250F

Machine power: 380V 50HZ three phase, the voltage can be adjusted according to customer actual use

Certification: CE and ISO9001

Performance and characteristics:

1. Product detecting and rejecting functions: check out the pills of which the rate of defect is above 15%, half-filled capsules and empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing and displaying the position and situation of the waste plate on the main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point reject and continuous reject.
5. System protective function: the system will alarm if troubles happen.

TECHNICAL PARAMETER

Machine Model DPP-250F

Double Function

ALU-PLASTIC-ALU

ALU-PLASTIC

Cutting Frequency(ideal sizes:80*57mm)

15-30 cutting/min

20-45 cutting/min

Max. Forming Area and Depth

250×120×15mm

250×120×15mm

Adjustable Scope of Travel(mm)

30-120mm

30-120mm

Packaging material(I.D.Φ75)

PVC(mm)

(0.15-0.4)×260×(Φ400)

(0.15-0.4)×260×(Φ400)

PTP(mm)

(0.02-0.15)×260×(Φ250)

(0.02-0.15)×260×(Φ250)

Alu Alu Foil

(0.10-0.12)×260×(Φ400)

Paper(mm)

(50-100)g/㎡

×260×(Φ300)

Power

380V 50Hz 11.5kw

380V 50Hz 8.5kw

Air compression(self-prepared)

0.6-0.8Mpa≥0.5m³/min

Recycle water or circulating water consumption

60-100L/h

Overall Dimension(L*W*H)(including foundation)

4450×800×1600

Dimension of Each Part

1400×800×1600(front)

1650×800×1450(middle)

1400×800×1450(back)

Weight

About 1700kg

OVERALL SKETCH

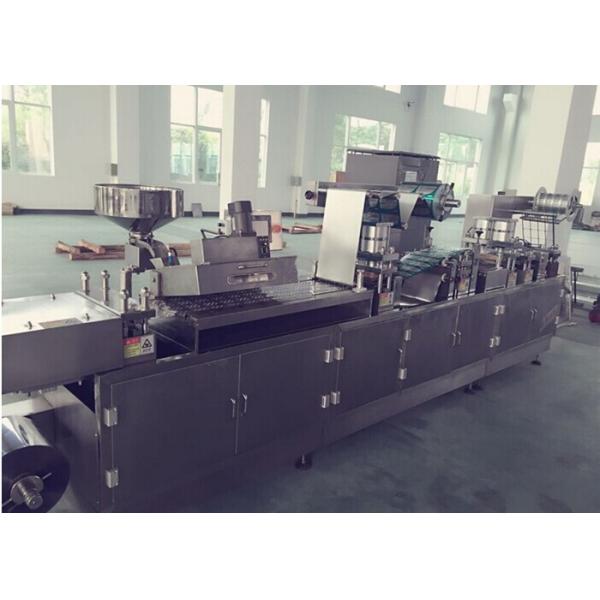

Pharmaceutical Automatic Tropical Blister Packing Machine For Soft Gel Capsule

1: PVC feeder 2: PVC transporting roller 3: Heating box 4: Forming mechanism(the material of punch head is PTFE)

5: Medicine feeder(The manual feeding without this station)

6: Touch-screen 7: PTP transporting roller

8: Heat-sealing mechanism 9: Trace-pressing mechanism

10: PTP feeding mechanism & scrap-collector 11: Tow mechanism

12: Blanking mechanism 13: Finished product output

Pharmaceutical Automatic Tropical Blister Packing Machine For Soft Gel Capsule

PACKAGE

  • The machine will not be shaking in transport with wooden fixed.
  • The machine will not be affected with damp in transport with packed with PE plastic bags.
  • Easy shaking station will fixed with hard rope.
  • Long machine will packed separatly.
  • If there are strict requirements, chassis can use iron girders.
