Specifications
Accuracy :
Turntable diameter: 800mm
Weight :
1800kg
customized support :
OEM, OBM
Voltage :
380 V
Accuracy Class :
High Accuracy
warranty :
1 Year
MOQ :
1 piece
Brand Name :
HUAKAI
Place of Origin :
Guangdong, China
power :
800W
Dimension :
1.5*1.5*2.3(m)
Protection Class :
IP65
Application :
Abrasion Tester
Type :
Testing Machine
Price :
$7,500-9,000 / piece
Frequency :
50HZ
Description
Product Overview
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
The Disc Type Caster Durability Testing Machine is designed for durability and fatigue life testing of industrial casters,
office chair casters, and swivel wheels. It simulates real-world long-term rolling performance under various loads, speeds, and obstacle conditions to evaluate caster quality and lifespan. The system features a motor-driven turntable with adjustable speed and a weight-based loading method. An intelligent touchscreen interface is provided for easy operation, precise parameter control, and data storage.
Functions & Applications
* Simulates real-world rolling and fatigue conditions for various caster types.
* Performs endurance, life cycle, and rolling distance tests with customizable settings.
* Touchscreen control system for precise test parameter adjustment.
* Widely used in furniture factories, caster manufacturing plants, and quality inspection labs.
Product Paramenters
Item
Specification
Control System
Touchscreen control
Load Capacity
Dual stations, 250kg per side, total 500kg
Loading Method
Weight-based loading
Obstacle Heights
2mm, 3mm, 5mm
Turntable Diameter
800mm
Obstacle Installation Direction
Vertical installation
Auto Stop Functions
Overload stop, distance stop, time stop, damage detection stop
Speed Range
4 km/h
Wheel Diameter Range
50–200 mm
Screw Thread Sizes
M8, M10, M12, M14
Mounting Hole Distance
73 x 44 mm
Hole Diameter
8 mm
Stroke Control Range
0.05 – 999.9 km
Main Machine Dimensions
1.5m x 1.5m x 2.3m (L x W x H)
Machine Weight
Approx. 1800kg
Power Supply
380V ±10%, 50Hz
Products Description

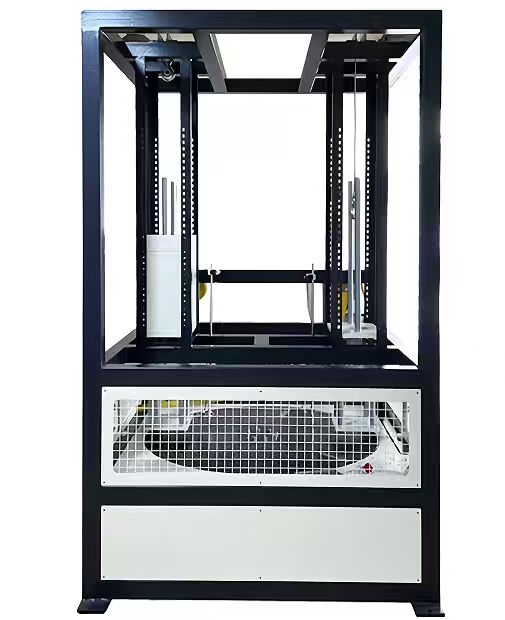

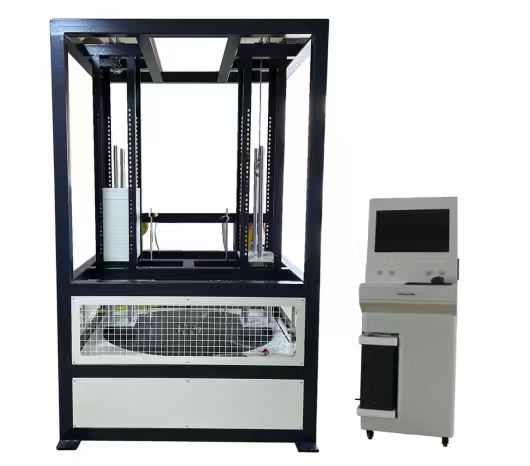

Structure & System Configuration
The equipment consists of a motor-driven rotating turntable, a weight-based loading system, and customizable caster fixtures. The touchscreen interface allows operators to easily set speed, distance, and load parameters. Custom fixtures can be designed according to customer requirements to accommodate various caster models.
Compliance Standards
* Complies with ISO caster durability testing standards.
* Meets QB/T and other related national testing standards.
Details Images
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Certifications
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Company Profile
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster
Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.
• Shipping Options: By sea, air, or express courier according to customer preference.
