TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
Specifications
MOQ :
1 piece
Type :
Testing Machine
Accuracy Class :
High Accuracy
customized support :
OEM, OBM
Accuracy :
Rotation Speed: 60/72 rpm
warranty :
1 Year
Application :
Abrasion Tester
Weight :
18kg (excluding vacuum cleaner)
Counter :
LED display, 0~999,999, automatic stop
Dimension :
330*430*310mm
Voltage :
220 V
Price :
$1,000-2,000 / piece
Brand Name :
HUAKAI
power :
200W
Protection Class :
IP65
Place of Origin :
Guangdong, China
Description
Product Overview
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
The Taber Abrasion Tester is one of the most widely used instruments worldwide for evaluating product durability. It is suitable for materials such as plastics, paper, coatings, textiles, leather, and flooring. This instrument provides fast and accurate methods for research, development, and quality control, conforming to multiple international standards including ASTM, ISO, NEMA, TAPPI, DIN, SAE, and JIS.

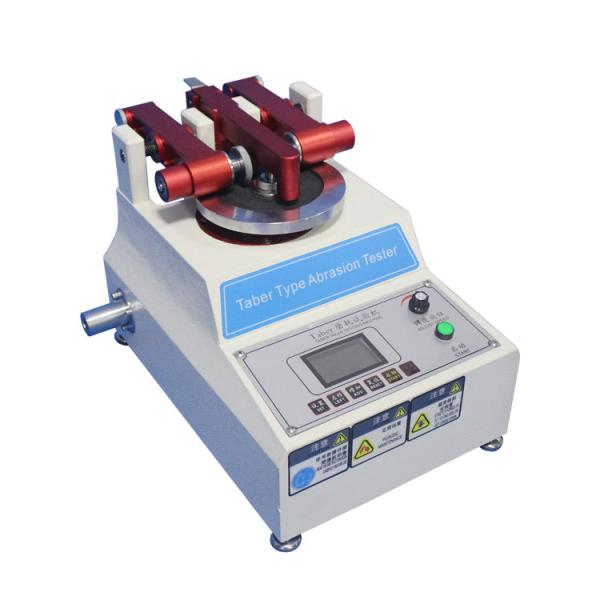

The upper part of the tester consists of a specimen holder and a pair of abrasive wheels with counterweights. During testing, the motor drives the specimen holder to rotate, causing friction between the abrasive wheels and the specimen. After the preset number of cycles, the test stops automatically, and the wear level is observed to evaluate the abrasion resistance of the material.
Product Paramenters
Item
Specification
Specimen Size
Outer diameter Ø108mm, inner diameter Ø8mm or 3mm (D)
Abrasion Wheel
Ø2” (max. 45mm), width 1/2”
Distance Between Wheels
53mm
Wheel to Specimen Center Distance
37–38mm
Rotation Speed
60/72 rpm
Load Weights
250g, 500g, 1000g
Counter
LED, 0–999,999 cycles, automatic stop
Specimen to Suction Distance
3mm
Machine Size (L×W×H)
330×430×310mm
Weight
18kg (excluding vacuum unit)
Power Supply
AC 220V, 50Hz, Single Phase
Accessories
Specimen cutter, wrench, one set of abrasive wheels, one pack of sandpaper
Material Type
Recommended Abrasive Wheel
Coating
CS10, CS17
Floor Tile
CS17, H18
Plywood
CS32, CS33
Plastic
H18, H22, CS17
Fabric
H18, H22, CS17
Products Description
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
Application
The Taber Abrasion Tester is widely applied for durability testing of luggage, carpets, paperboard, clothing, glass, plastic
coatings, tiles, metal plating, paint, varnish, decorative laminates, plastic sheets, textiles, elastic flooring, road marking
paints, anodized layers, blankets, electronic components, decorative panels, waxes, labels, leather covers, dental materials,
automotive interiors, resins, and furniture.
Standards
DIN-53754, DIN-53799, DIN-53109, DIN-52347, TAPPI-T476, ASTM-D1044, ASTM-D3884, ISO-5470
Details Images
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
Certifications
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
Company Profile
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
TABER-type Abrasion Tester for Coatings, Plastics and Textiles, TABER Abrasion Tester for Coated Leather
Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.
• Shipping Options: By sea, air, or express courier according to customer preference.
