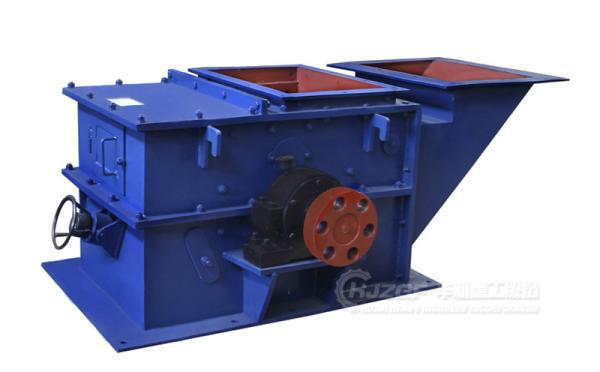

Ring Hammer Crusher Equipment Used In Thermoelectricity Cement Coal
Ring Hammer Crusher Equipment Used In Thermoelectricity Cement Coal
Specifications
Name :
Coarse And Medium Crushing Equipment
Production capacity :
Various
Applicable materials :
iron ore, steel slag, phosphate rock
Application :
highway, railroad, chemical industry
Feature :
high efficiency
Key Selling Points :
High Yield Rate ,Low Operation Cost
Place of Origin :
China
Brand Name :
Huaji
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Description

Ring Hammer Crusher product description

Ring Hammer Crusher is suitable for crushing various medium-hardness materials with compressive strength not more than 150Mpa and water not more than 12%, such as coal, coal gangue, coke, slag, red sandstone, shale, loose limestone, etc. It has the features of simple structure, high efficiency and energy saving, low noise and dust. It is characterized by simple structure, large crushing ratio, high efficiency and energy saving, low noise and low dust. It can be widely used in thermoelectricity, cement, coal, metallurgy, building materials, highway, combustion and chemical industries.

Ring Hammer Crusher working principle

The main part of the ring hammer crusher is the rotor with hammer head, which is composed of spindle, turntable, pin and hammer head. The rotor is driven by the motor to rotate at high speed in the crushing chamber, the material enters into the crushing chamber from the inlet, and is struck by the high-speed movement of the hammer head, impacting, shearing and grinding the material to be crushed. In the lower part of the rotor, there is a screen plate, the crushed materials smaller than the size of the screen hole particles discharged through the screen plate, larger than the size of the screen hole material blocked on the screen plate to continue to be struck by the hammer and grinding, and ultimately reach the size of the final through the screen plate discharged out of the machine, according to the user's requirements to customize the grate gap, change the size of the material, in order to meet the needs of different users.

Ring Hammer Crusher Technical Parameters

Model Rotor Diameter
(mm)		 Rotor length
(mm)		 Spindle speed
(r/min)		 Feed size
(mm)		 Output granularity
(mm)		 production capacity
(t/h)		 Motor power
(Kw)
PCH0404 400 400 970 ≤200 ≤30 16-25 11
PCH0604 600 400 970 ≤200 ≤30 22-23 15
PCH0606 600 600 970 ≤200 ≤30 30-60 30
PCH0808 800 800 980 ≤200 ≤30 75-105 45
PCH1010 1000 1000 740 ≤300 ≤30 160-245 90
PCH1016 1000 1600 740 ≤300 ≤30 300-500 155
PCH1216 1200 1600 740 ≤400 ≤30 500-800 355
PCH1221 1210 2100 740 ≤400 ≤30 800-1000 400
