HUAHENG TOA77 Medium-Thick-Wall Pipeline Welding Equipment for Pipe-to-Pipe Welding
HUAHENG TOA77 Medium-Thick-Wall Pipeline Welding Equipment for Pipe-to-Pipe Welding
Specifications
Tungsten Electrode Diameter(mm) :
Φ2.4、Φ3.2
Weldable Pipe ID(mm) :
Φ19.05～Φ45 (3/4″～13/4″)
Weldable Pipe OD(mm) :
Φ45～Φ77 (1 3/4″～3″)
Protective Gas :
Argon
Weldable Material :
Carbon Steel, Stainless Steel
Wire Diameter(mm） :
Φ1.0（Standard）
Description

Open-Head Orbital Welding System

TOA77 Medium-Thick-Wall Pipeline Welding Equipment

Breaking away from traditional enclosed designs, the HUAHENG TOA series features an innovative open-head structure. This breakthrough design enables precise process control while significantly improving operational visibility. Built for medium-thick-wall pipelines, it executes smooth horizontal circumferential welds and navigates complex vertical pipe joints with ease. Its lightweight welding head maintains perfect surface contact throughout operation, ensuring reliable, high-precision welding even in the most challenging industrial environments.

Suitable for fusion welding or wire-fed welding with the integrated TB1501 wire feeder (AVC & oscillation).

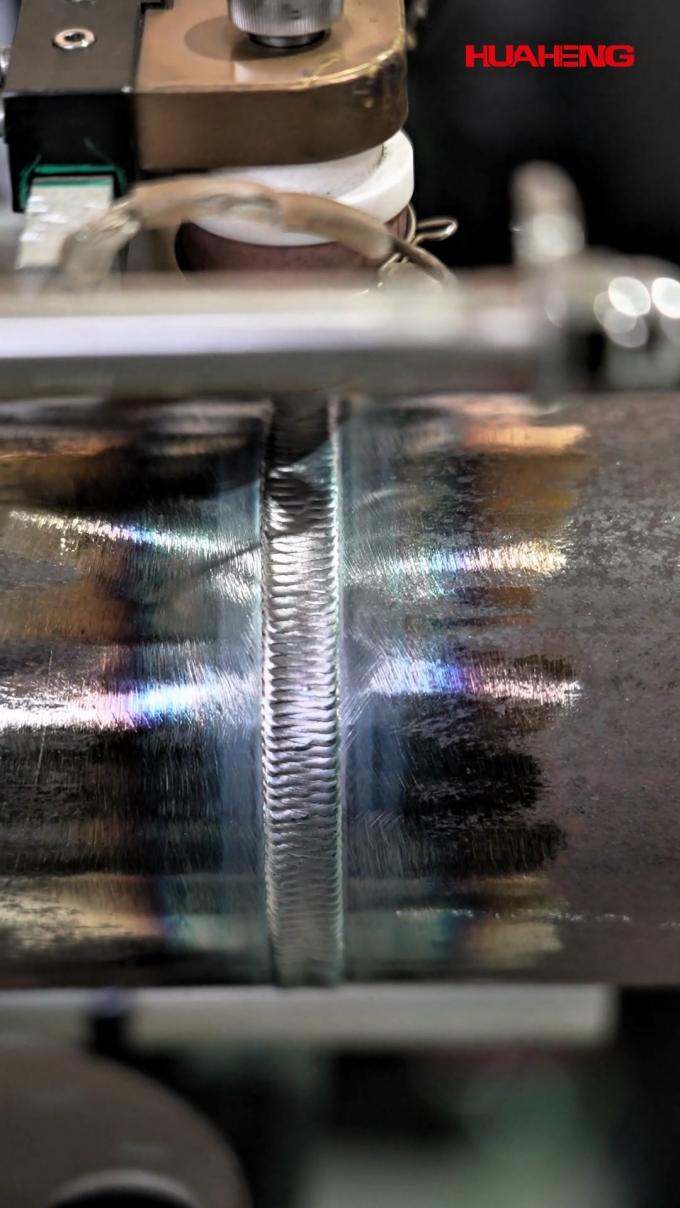

HUAHENG TOA77 Medium-Thick-Wall Pipeline Welding Equipment for Pipe-to-Pipe Welding

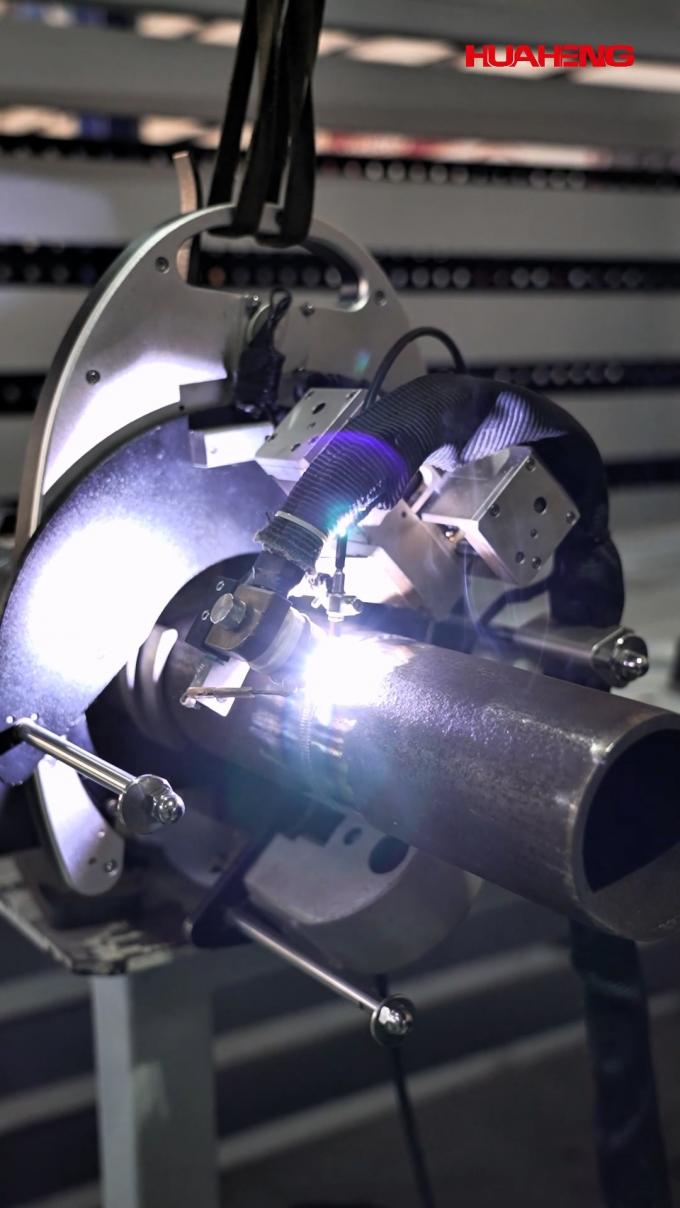

HUAHENG TOA77 Medium-Thick-Wall Pipeline Welding Equipment for Pipe-to-Pipe Welding

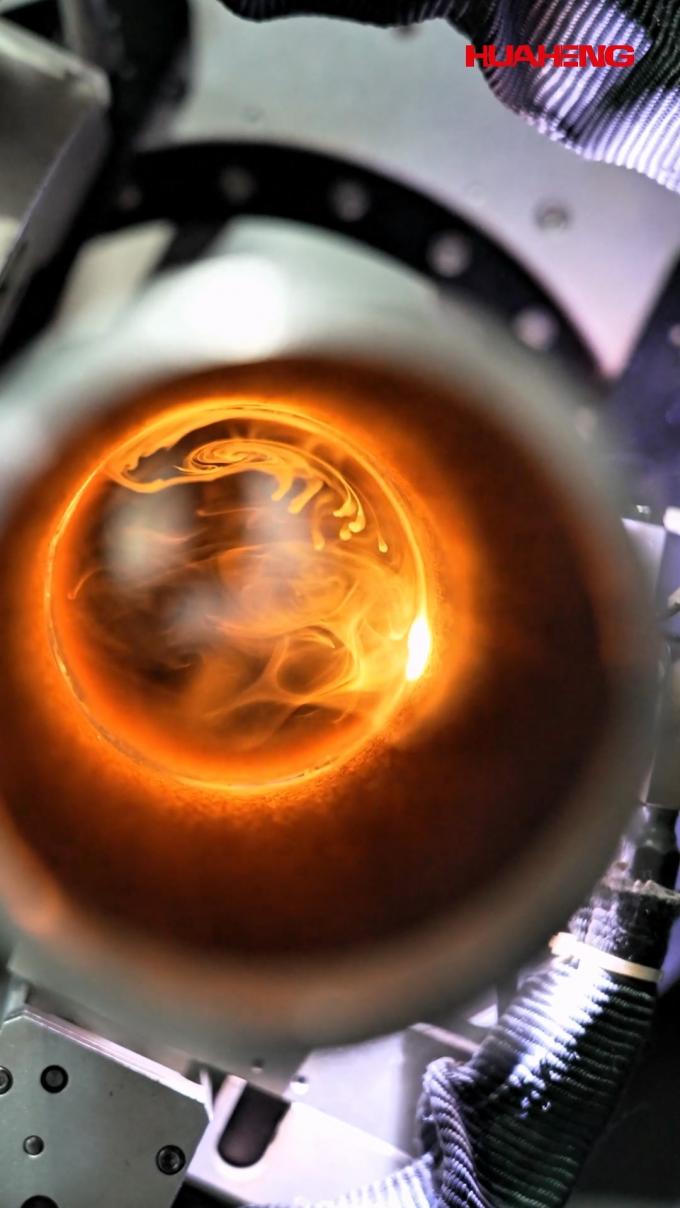

HUAHENG TOA77 Medium-Thick-Wall Pipeline Welding Equipment for Pipe-to-Pipe Welding
HUAHENG TOA77 Medium-Thick-Wall Pipeline Welding Equipment for Pipe-to-Pipe Welding

Technical Parameters

Parameter TOA77 TOA130 TOA180 TOA230 TOA320
Weldable Pipe Diameter
Inner clamp Φ19.05 – Φ45 (3/4″ – 1 3/4″) Φ38.1 – Φ76 (1 1/2″ – 3″) Φ50.8 – Φ114.3 (2″ – 4 1/2″) Φ120 – Φ178 (4 1/2″ – 7″) Φ150 – Φ230 (6″ – 9″)
Outer clamp Φ45 – Φ77 (1 3/4″ – 3″) Φ76 – Φ130 (3″ – 5″) Φ114.3 – Φ180 (4 1/2″ – 7″) Φ178 – Φ230 (7″ – 9″) Φ230 – Φ324 (9″ – 12 3/4″)
Tungsten electrode diameter (mm) Φ2.4, Φ3.2 Φ2.4, Φ3.2 Φ2.4, Φ3.2 Φ2.4, Φ3.2 Φ2.4, Φ3.2
Spinning speed (rpm) 0.19 – 3.8 0.11 – 2.2 0.09 – 1.8 0.05 – 1.0 0.026 – 0.52
Yaw width (mm) 20 40 40 40 40
Arc length height (mm) 40 40 40 40 40
Max. wire feed speed (mm/min) 1800 1800 1800 1800 1800
Main Dimensions (mm) TOA77 TOA130 TOA180 TOA230 TOA320
A 220 300 375 425 550
B 180 235 285 300 315
C 112 – 132 156 – 196 184 – 224 195 – 235 230 – 270
D 92 165 225 250 297
E 82 132 182 232 328
F 320 400 525 570 680
Weight (kg) 5.5 (without cable) 10.8 (without cable) 19.5 (without cable) 21.5 (without cable) 36 (without cable)
Dimensions (mm) 370 × 220 × 320 435 × 300 × 400 445 × 375 × 525 465 × 425 × 570 430 × 610 × 680
