National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
Specifications
MOQ :
1
Payment Terms :
T/T
Price :
100
Delivery Time :
7
Brand Name :
HG Crane
Place of Origin :
China
Model Number :
Hook type double wheel 1t- 50t；Hook type single wheel 0.5t -20t； Hook type three-wheel 2t - 50t； Ring type single wheel 1t - 20t； Hook type four-wheel 5t - 50t； Ring-type double wheel 1t - 50t； Ring-type three-wheel 3t - 50t； Ring type four-wheel 5t - 50t；
Description
Highlights at a glance

High-Quality Bearing: Ensures durability and long-lasting performance
in heavy-duty applications.

Multi-Wheel Design: Offers versatile lifting solutions for various loads and industries.

Open and Close Functionality: Simplifies installation and maintenance processes.

Suitable for Warehousing: Ideal for efficient material handling in logistics
and mining environments.

Single Wheel and Multi-Wheel Options: Accommodates different lifting needs
and configurations.

National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

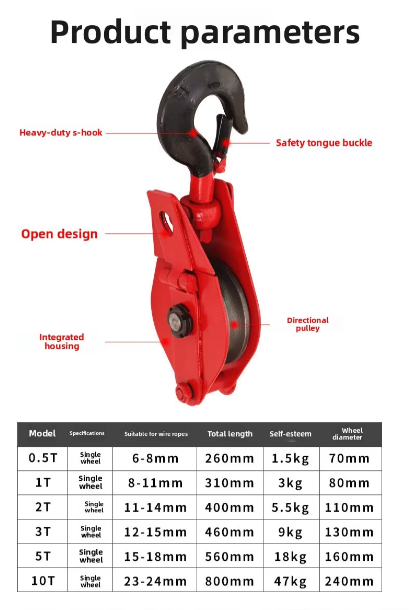

Model Specifications Suitable for wire ropes Total length Self weight Wheel diameter
0.5T single wheel 6-8mm 260mm 1.5kg 70mm
1T single wheel 8-11mm 310mm 3kg 80mm
2T single wheel 11-14mm 400mm 5.5kg 110mm
3T single wheel 12-15mm 460mm 9kg 130mm
5T single wheel 15-18mm 560mm 18kg 160mm
10T single wheel 23-24mm 800mm 47kg 240mm
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

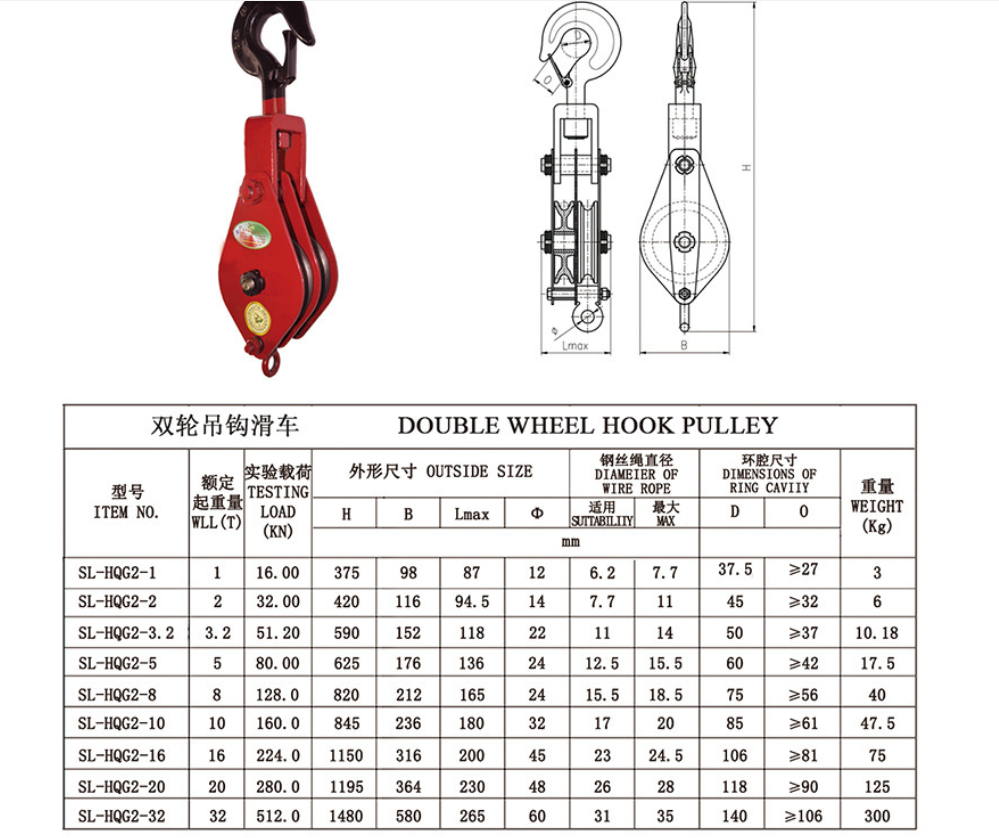

DOUBLE WHEEL HOOK PULLEY
ITEM NO. WLL(T) TESTINGLOAD(KN) OUTSIDE SIZE DIAMEIER OFWIRE ROPE DIMENSIONS OF RING CAVIIY WEIGHT(Kg)
H B Lmax Φ SUTTABILIIY MAX D O
mm

SL-HQG2-1 1 16.00 375 98 87 12 6.2 7.7 37.5 ≥27 3
SL-HQG2-2 2 32.00 420 116 94.5 14 7.7 11 45 ≥32 6
SL-HQG2-3.2 3.2 51.20 590 152 118 22 11 14 50 ≥37 10.18
SL-HQG2-5 5 80.00 625 176 136 24 12.5 15.5 60 ≥42 17.5
SL-HQG2-8 8 128.0 820 212 165 24 15.5 18.5 75 ≥56 40
SL-HQG2-10 10 160.0 845 236 180 32 17 20 85 ≥61 47.5
SL-HQG2-16 16 224.0 1150 316 200 45 23 24.5 106 ≥81 75
SL-HQG2-20 20 280.0 1195 364 230 48 26 28 118 ≥90 125
SL-HQG2-32 32 512.0 1480 580 265 60 31 35 140 ≥106 300

National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

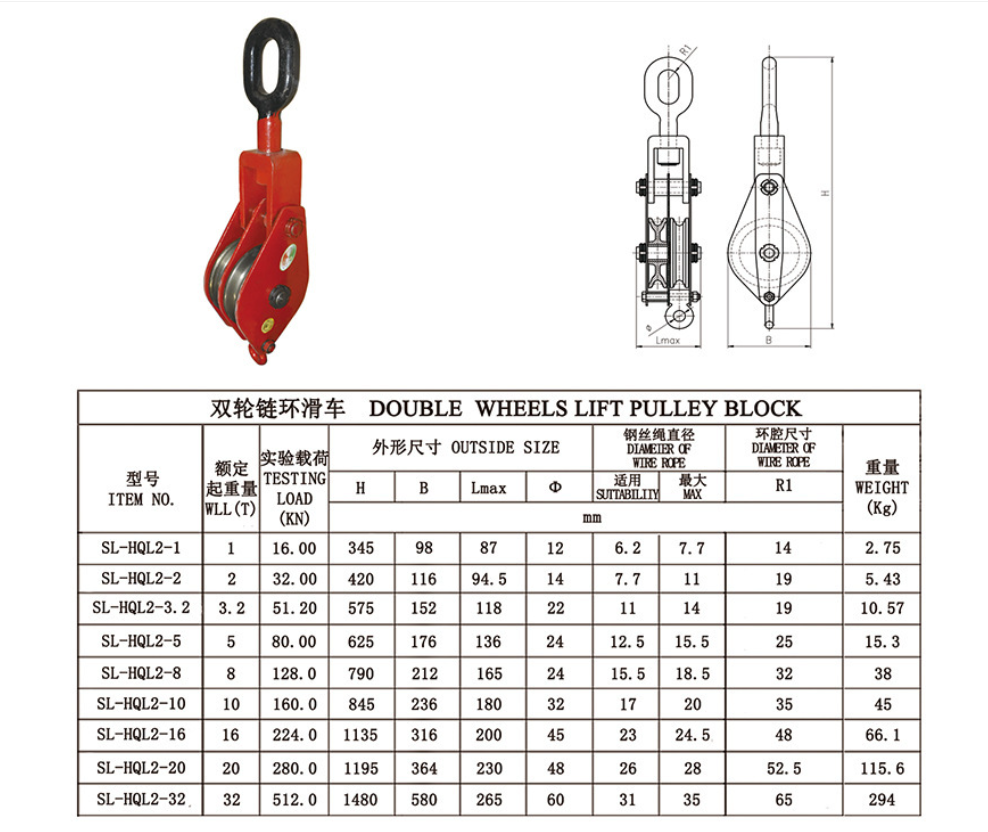

DOUBLE WHEELS LIFT PULLEY BLOCK
ITEM NO. WLL(T) TESTINGLOAD(KN) OUTSIDE SIZE DIAMEIER OFWIRE ROPE DIMENSIONS OF RING CAVIIY WEIGHT(Kg)
H B Lmax Φ SUTTABILIIY MAX R1
mm
SL-HQG2-1 1 16.00 345 98 87 12 6.2 7.7 14 2.75
SL-HQG2-2 2 32.00 420 116 94.5 14 7.7 11 19 5.43
SL-HQG2-3.2 3.2 51.20 575 152 118 22 11 14 19 10.57
SL-HQG2-5 5 80.00 625 176 136 24 12.5 15.5 25 15.3
SL-HQG2-8 8 128.0 790 212 165 24 15.5 18.5 32 38
SL-HQG2-10 10 160.0 845 236 180 32 17 20 35 45
SL-HQG2-16 16 224.0 1135 316 200 45 23 24.5 48 66.1
SL-HQG2-20 20 280.0 1195 364 230 48 26 28 52.5 115.6
SL-HQG2-32 32 512.0 1480 580 265 60 31 35 65 294
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

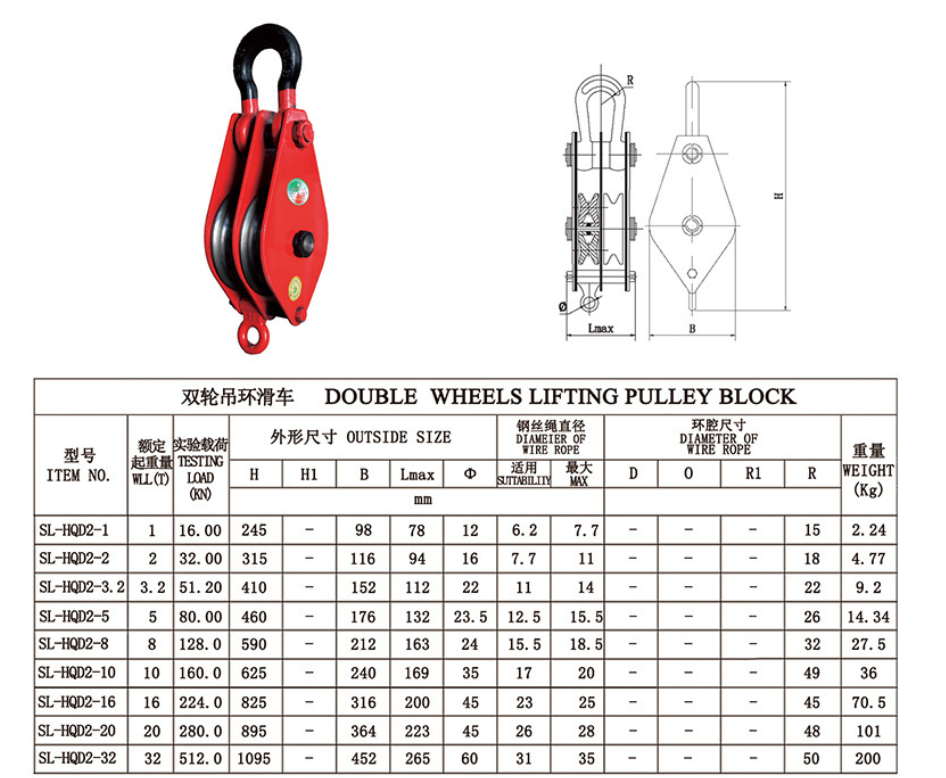

DOUBLE WHEELS LIFTING PULLEY BLOCK
ITEM NO. WLL(T) TESTINGLOAD(KN) OUTSIDE SIZE DIAMEIER OFWIRE ROPE DIMENSIONS OF RING CAVIIY
 WEIGHT(Kg)
H B Lmax Φ SUTTABILIIY MAX D O R1 R
mm
SL-HQG2-1 1 16.00 245 98 78 12 6.2 7.7

15 2.24
SL-HQG2-2 2 32.00 315 116 94 16 7.7 11

18 4.77
SL-HQG2-3.2 3.2 51.20 410 152 112 22 11 14

22 9.2
SL-HQG2-5 5 80.00 460 176 132 23.5 12.5 15.5

26 14.34
SL-HQG2-8 8 128.0 590 212 163 24 15.5 18.5

32 27.5
SL-HQG2-10 10 160.0 625 240 169 35 17 20

49 36
SL-HQG2-16 16 224.0 825 316 200 45 23 25

45 70.5
SL-HQG2-20 20 280.0 895 364 223 45 26 28

48 101
SL-HQG2-32 32 512.0 1095 452 265 60 31 35

50 200
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

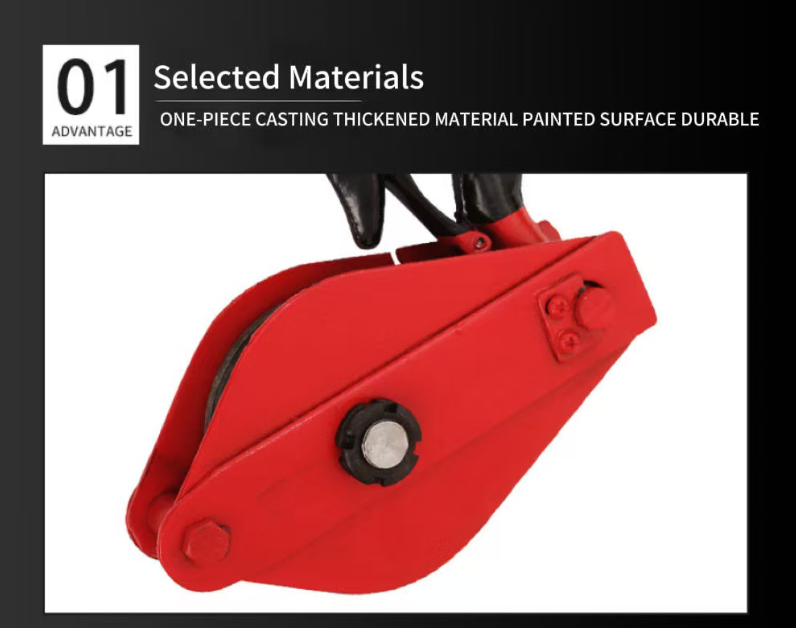

Selected Materials
ONE-PIECE CASTING THICKENED MATERIAL PAINTED SURFACE DURABLE
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

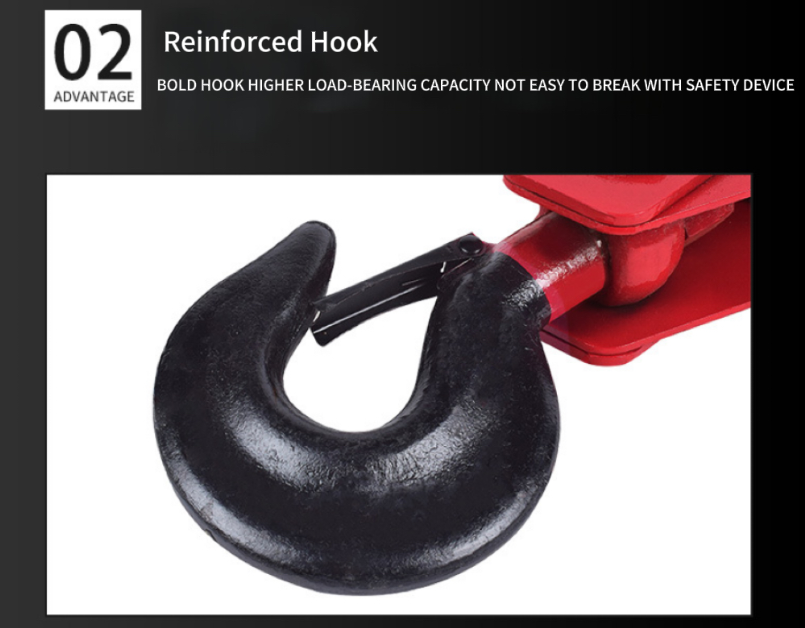

Reinforced Hook
BOLD HOOK HIGHER LOAD-BEARING CAPACITY NOT EASY TO BREAK WITH SAFETY DEVICE
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

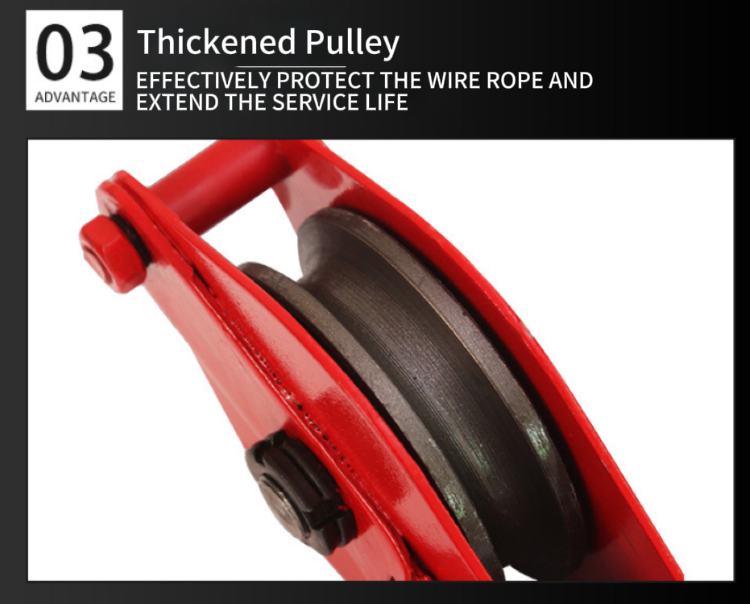

Thickened Pulley
EFFECTIVELY PROTECT THE WIRE ROPE AND
EXTEND THE SERVICE LIFE
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

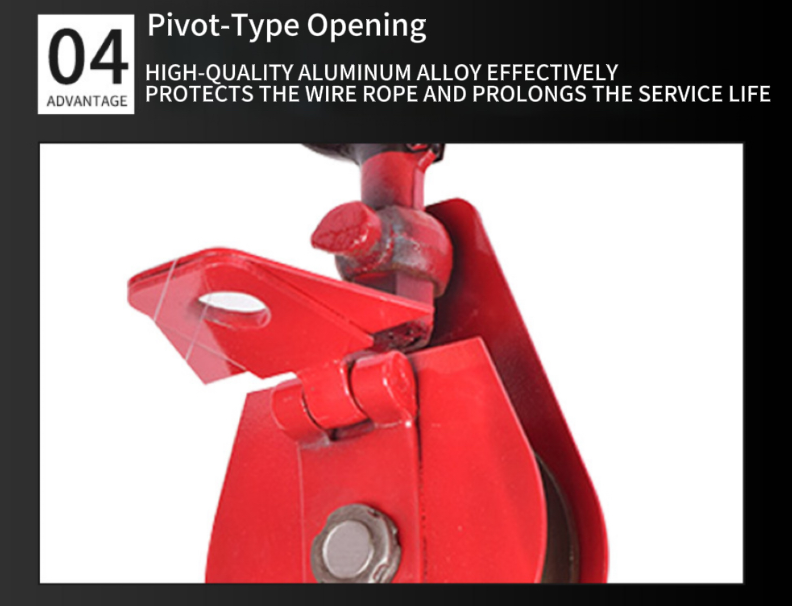

Pivot-Type Opening
HIGH-QUALITY ALUMINUM ALLOY EFFECTIVELY
PROTECTS THE WIRE ROPE AND PROLONGS THE SERVICE LIFE
National Standard Steel Wire Rope Pulley with High-Quality Bearing and Multi-Wheel Design for Open and Close Functionality in Heavy-Duty Lifting

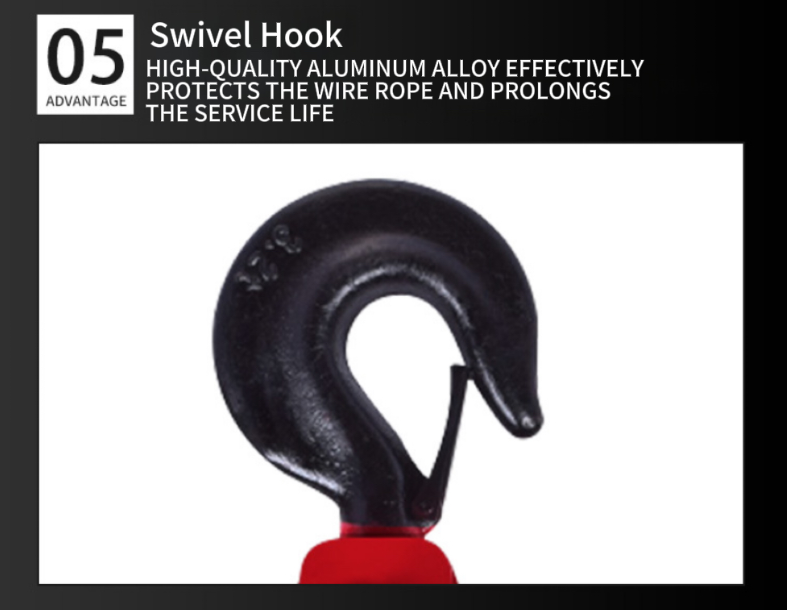

Swivel Hook
HIGH-OUALITY ALUMINUM ALLOY EFFECTIVELY
PROTECTS THE WIRE ROPE AND PROLONGSTHE SERVICE LIFE

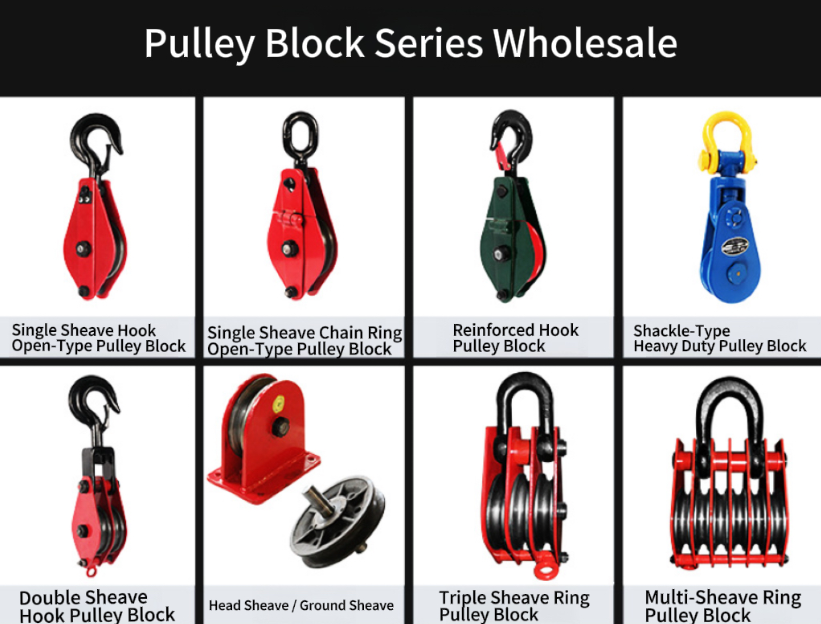

Pulley Block Series Wholesale
