Specifications
Model Number :
Cycloidal Pin Reducer Rated Power：0.37-55kw
Place of Origin :
China
MOQ :
1
Price :
49-120 USD
Payment Terms :
T/T
Delivery Time :
7 Days
Packaging Details :
Wooden Case
Description
Cycloidal Pin Wheel Speed Reducer for Lifting Platforms
Efficient cycloidal gearbox designed specifically for lifting platform applications, offering reliable performance and durable construction.
Solid Shaft Output In-line Cycloidal Gearbox Gear Motor
Features keyed solid shaft output configuration for direct power transmission in industrial applications.

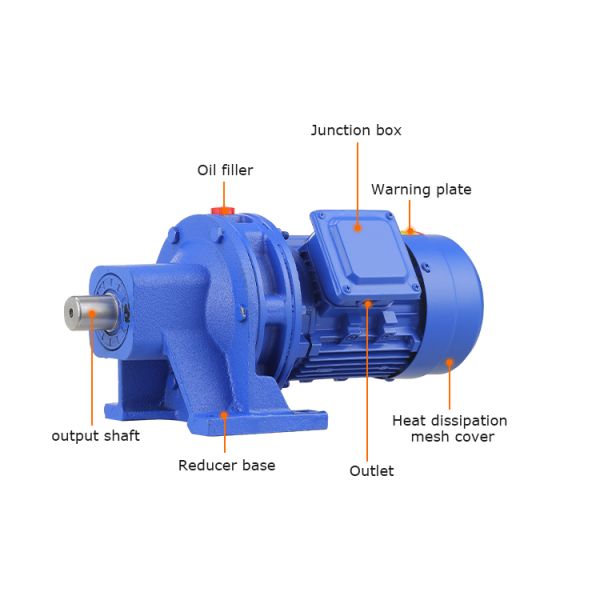

Key Components
  • Housing: Cast Iron construction for maximum durability
  • Gearset: Precision Cycloid Wheel & Pin Wheel design

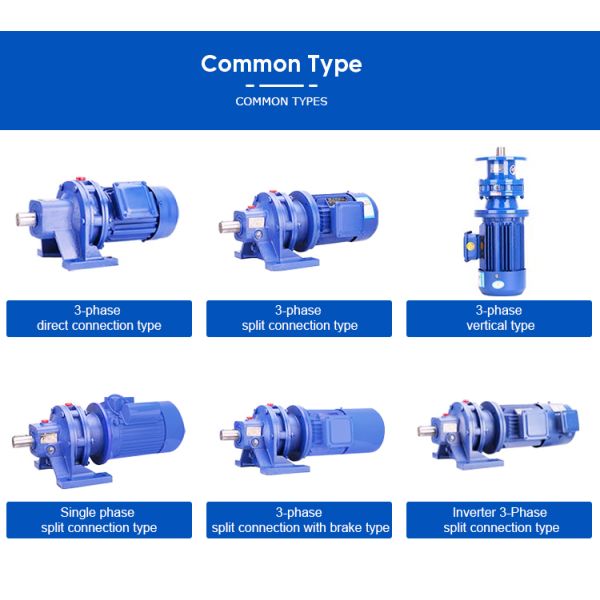

  • Input Configurations: Compatible with various electric motors including AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, and Hydraulic Motor
  • Motor Interface: IEC-normalized Motor Flange with Keyed Solid Shaft Input
  • Output: Keyed Solid Shaft Output for reliable power transmission
Cycloidal Pin Wheel Speed Reducer with Solid Shaft Output and Cast Iron Housing for High Torque Applications Cycloidal Pin Wheel Speed Reducer with Solid Shaft Output and Cast Iron Housing for High Torque Applications Cycloidal Pin Wheel Speed Reducer with Solid Shaft Output and Cast Iron Housing for High Torque Applications Cycloidal Pin Wheel Speed Reducer with Solid Shaft Output and Cast Iron Housing for High Torque Applications Cycloidal Pin Wheel Speed Reducer with Solid Shaft Output and Cast Iron Housing for High Torque Applications Cycloidal Pin Wheel Speed Reducer with Solid Shaft Output and Cast Iron Housing for High Torque Applications

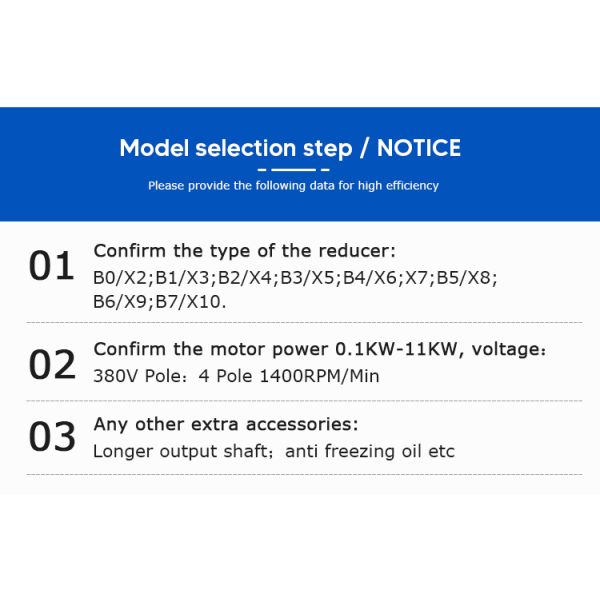

Model selection step / NOTICE
Please provide the following data for high efficiency
1.Confirm the type of the reducer:
B0/X2;B1/X3;B2/X4;B3/X5;B4/X6;X7;B5/X8;B6/X9;B7/X10.

2.Confirm the motor power 0.1KW-11KW, voltage:
380V Pole: 4 Pole 1400RPM/Min

3.Any other extra accessories:
Longer output shaft; anti freezing oil etc

Gearbox Technical Parameters
Single Stage Models
Model Power (kW) Ratio Max. Torque (Nm) Output Shaft Dia. (mm) Input Shaft Dia. (mm)
X2(B0/B12) 0.37~1.5 9~87 150 Φ25(Φ30) Φ15
X3(B1/B15) 0.55~2.2 9~87 250 Φ35 Φ18
X4(B2/B18) 0.75~4.0 9~87 500 Φ45 Φ22
X5(B3/B22) 1.5~7.5 9~87 1,000 Φ55 Φ30
X6(B4/B27) 2.2~11 9~87 2,000 Φ65(Φ70) Φ35
X7 3.0~11 9~87 2,700 Φ80 Φ40
X8(B5/B33) 5.5~18.5 9~87 4,500 Φ90 Φ45
X9(B6/B39) 7.5~30 9~87 7,100 Φ100 Φ50
X10(B7/B45) 15~45 9~87 12,000 Φ110 Φ55
X11(B8/B55) 18.5~55 9~87 20,000 Φ130 Φ70
Two Stage Models
Model Power (kW) Ratio Output Shaft Dia. (mm) Input Shaft Dia. (mm)
X32(B10) 0.25~0.55 121~1849 Φ35 Φ15
X42(B20/B1812) 0.37~0.75 121~1849 Φ45 Φ15
X53(B31/B2215) 0.55~1.5 121~1849 Φ55 Φ18
X63(B41/B2715) 0.75~2.2 121~1849 Φ65(Φ70) Φ18
X64(B42/B2718) 0.75~2.2 121~1849 Φ65(Φ70) Φ22
X74 1.1~3.0 121~1849 Φ80 Φ22
X84(B52/B3318) 1.5~4.0 121~1849 Φ90 Φ22
X85(B53/B3322) 2.2~5.5 121~1849 Φ90 Φ30
X95(B63/B3922) 3.0~7.5 121~1849 Φ100 Φ30
X106(B74/B4527) 4.0~11 121~1849 Φ110 Φ35
X117(B84/B5527) 4.0~15 121~1849 Φ130 Φ40(Φ35)
Available Ratios
Single Stage: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
Two Stage: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
