Specifications
Place of Origin :
Henan, China
Brand Name :
HUAGONG
Price :
300~8000 USD/SET
MOQ :
1
Payment Terms :
T/T
Delivery Time :
25 Days
Certification :
CE
Rated Lifting Moment :
101-160Kn
Max. Lifting Load :
5t
Span :
3-16m
Color :
Clients' Requirments
Power supply :
Customer request
Lifting mechanism :
Electric hoist
Model Number :
HD
Supply Ability :
500 Set/Sets per Month
Packaging Details :
Woodenbox
Description
Electric Hoist Lifting Crane Running Mechanism - Single Beam Overhead Bridge Crane
Product Overview
Electric Hoist Overhead Crane with 5t Max Lifting Load and European Type End Carriage for Industrial Use

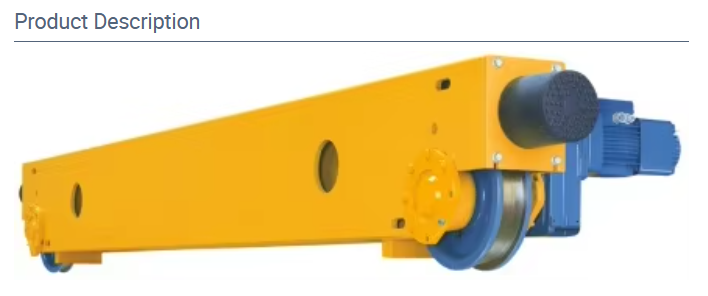

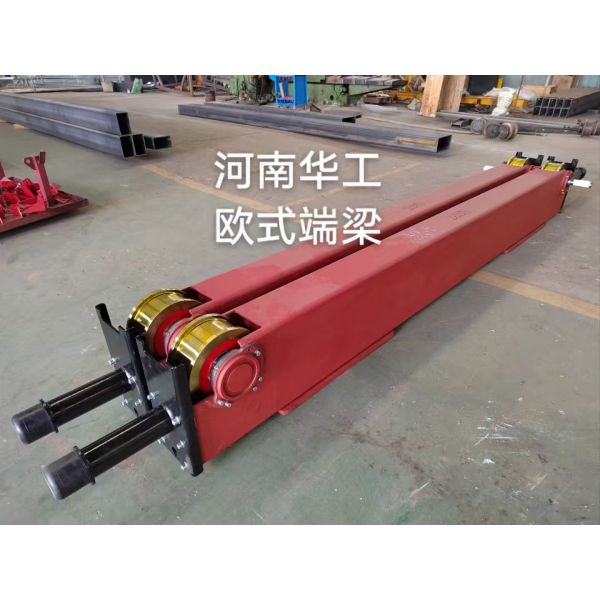

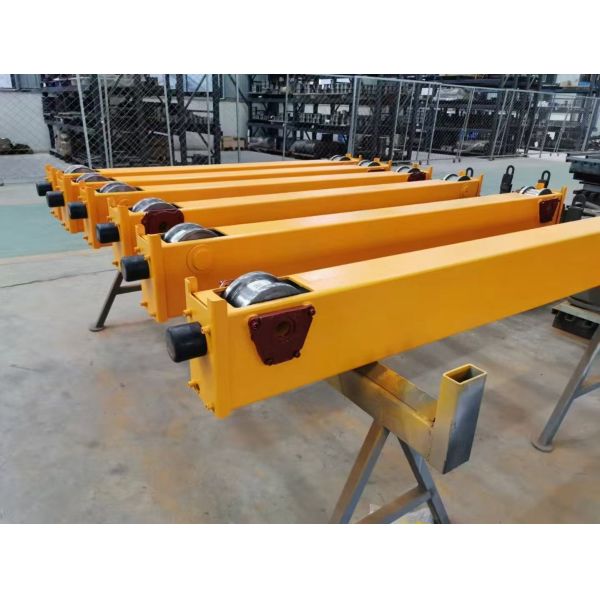

End carriage constructed from rectangular tube with transmission mechanism using gear reducer motor. Equipped with open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead cranes. Wheel tread surface undergoes heat treatment for enhanced durability.
Simple installation requiring only welding of main beam and end beam after correction. This design facilitates easy crane manufacturing, installation, and maintenance.
European type end carriage utilizes F-series reducer and hollow shaft drive, achieving working duty up to M5 classification.
Technical Specifications

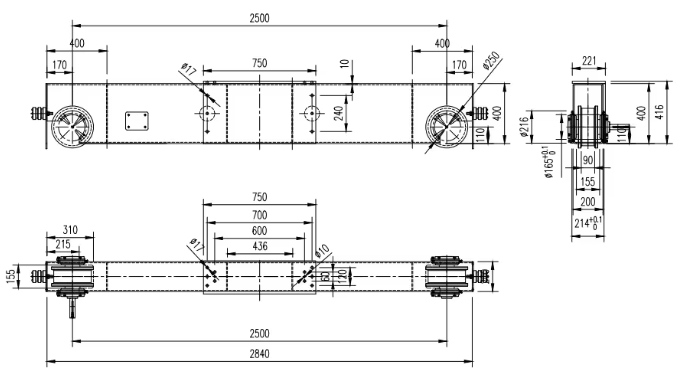

End Carriage Model Application Crane Model Rectangular Steel Tube Wheel Size Motor Power
L125-20 1t-11.5m 150*150*6 W125*60 0.3KW*2
L160-25 2t/3t-16.5m 150*200*8 W160*70 0.4KW*2
L200-30 5t-22.5m 150*250*8 W200*70 0.4KW*2 / 0.75KW*2
L250-35A 10t-28.5m 200*250*8 / 200*300*8 W250*80 0.75KW*2 / 1.1KW*2 / 1.5KW*2
L315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2
Key Features
Electric Hoist Overhead Crane with 5t Max Lifting Load and European Type End Carriage for Industrial Use
  • Suitable for various single girder and double girder overhead cranes
  • Girder connection with end beam via welding or strength bolts - bolt holes customized per client requirements

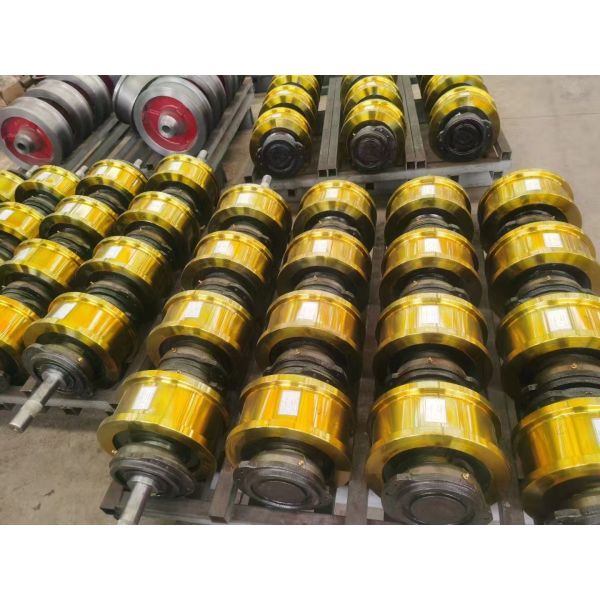

  • Wheel diameters from 150-500mm based on wheel pressure requirements, featuring wear-resistant characteristics
  • Driving mechanism utilizes soft start motor for safe and reliable operation - three-in-one driving mechanism available as option
  • Custom manufacturing according to client specifications
Electric Hoist Overhead Crane with 5t Max Lifting Load and European Type End Carriage for Industrial Use Electric Hoist Overhead Crane with 5t Max Lifting Load and European Type End Carriage for Industrial Use Electric Hoist Overhead Crane with 5t Max Lifting Load and European Type End Carriage for Industrial Use
