Specifications
Brand Name :
HUAGONG
Place of Origin :
Henan, China
Price :
250~300 USD
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
7 days
Model Number :
CD MD
Certification :
CE
Lifting Speed :
6 m/min, 8 m/min, 10 m/min, 60 m/min, 28 m/min
Load Capacity :
20t
Material :
Steel, Metal
Sling Type :
Wire Rope, Wire Rope
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory
Condition :
New
Machinery Test Report :
Provided
Power Source :
Electric, Electric
Warranty :
1 Year
Weight (KG) :
340 kg
Use :
Construction Hoist, Construction Hoist
Maximum Lifting Weight :
20T
Lift Speed :
20/30m/min
Capacity :
0.25T~32T
Application :
Warehouse,etc.
Maximum Lifting Height :
30m
Description
20T Load Capacity Custom Steel Wire Rope Electric Hoist
Industrial material handling solution featuring 20-30m/min lift speed for precise and efficient operations.
20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use 20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use
Product Description
20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use

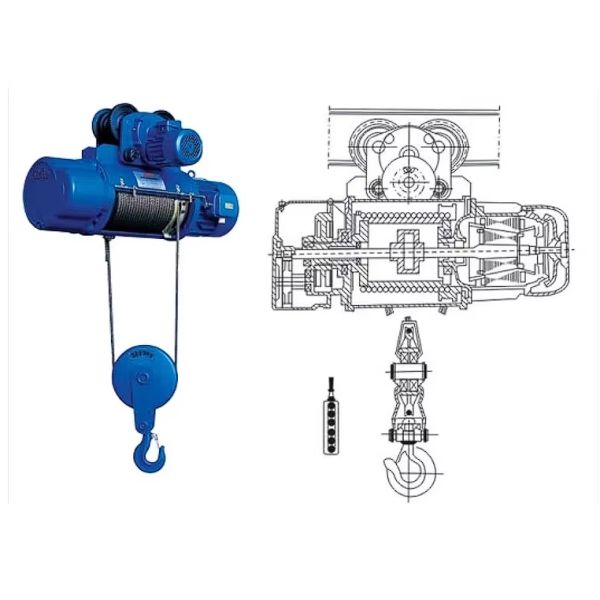

CD1/MD1 Electric Wire Rope Hoist Series

The CD1 Electric Hoist operates at normal speed, meeting general industrial requirements. The MD1 Electric Hoist features an additional hoisting motor and slow-speed actuating device, providing dual-speed operation for precise material handling tasks.

Available Specifications
  • Capacity Range: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T
  • Lifting Height: 6m, 9m, 12m, 18m, 24m, 30m, up to maximum 100m

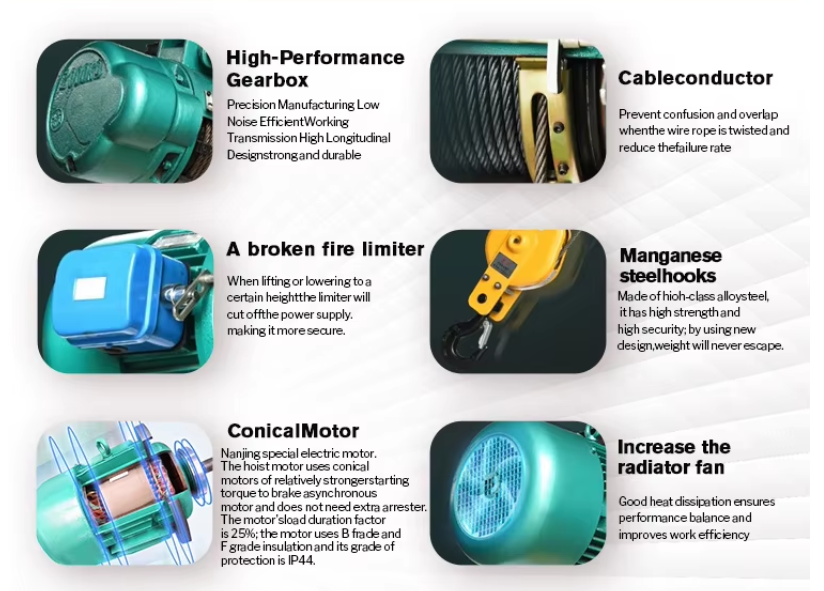

High-Performance Gearbox
Precision Manufacturing Low Noise Efficient WorkingTransmission High Longitudinal Designstrongand durable.


Cableconductor
Prevent confusion andoverlap when the wire rope is twisted and reduce thefailure rate.


A broken fire limiter
When lifting or lowering to a certain heightthe limiter will cutoffthe power supply making it more secure.


Manganese steelhooks
Madeofhioh-class alloysteel,ithas high strength and high security; by using new design,weight will neverescape.


ConicalMotor
Nanjingspecialelectric motor.The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does notneed extra arrester.The motor'sload duration factoris 25%; the motor uses B frade andF grade insulationand its grade ofprotection is IP44.


Increase the radiator fan
Good heat dissipetion ensuresperformance balance and improves work efficiency.

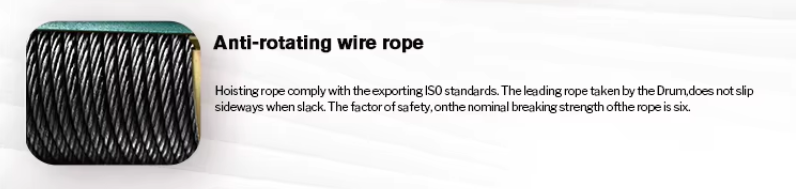

Anti-rotating wire rope
Hoisting rope complies with the exporting ISO standards. The leading rope taken by the Drum does not slip sideways when slack. The factor of safety on the nominal breaking strength of the rope is six.

20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use 20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use

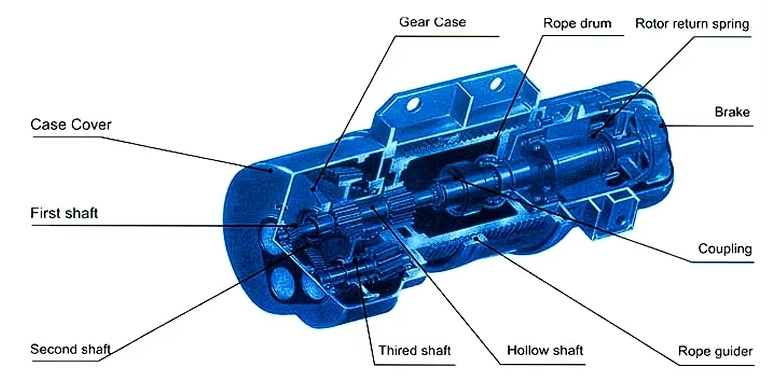

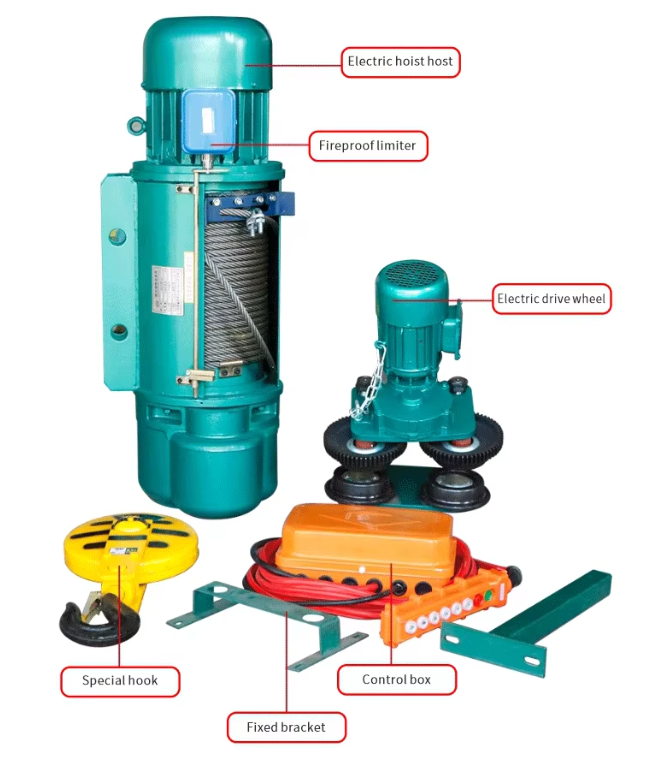

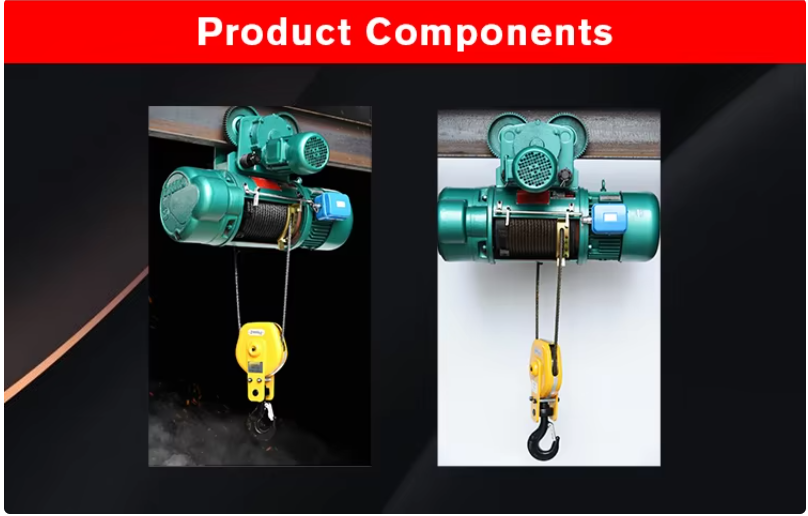

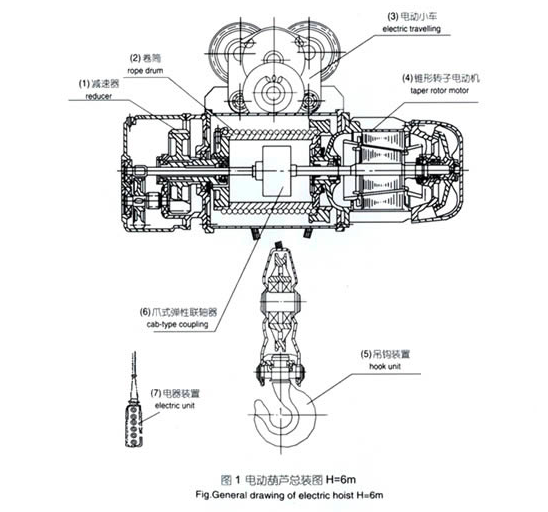

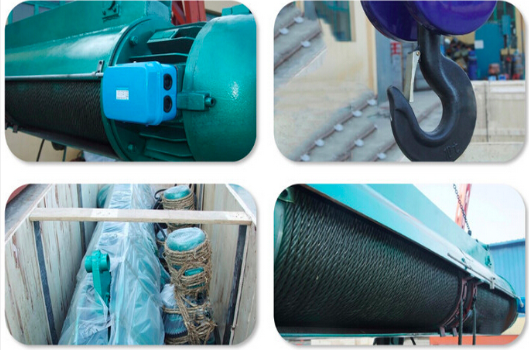

Key Components and Construction
20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use 20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use

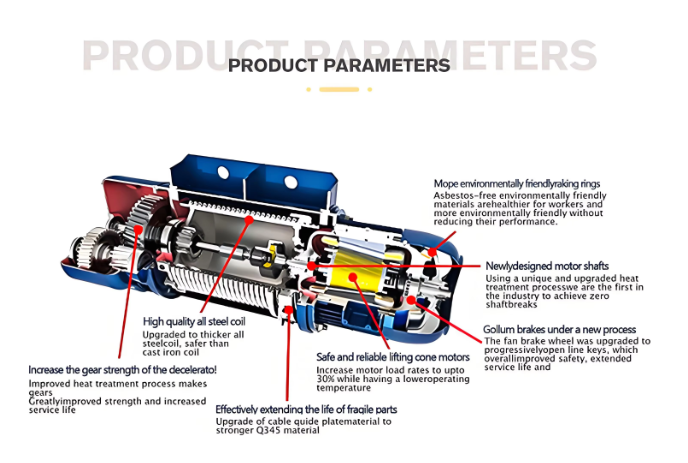

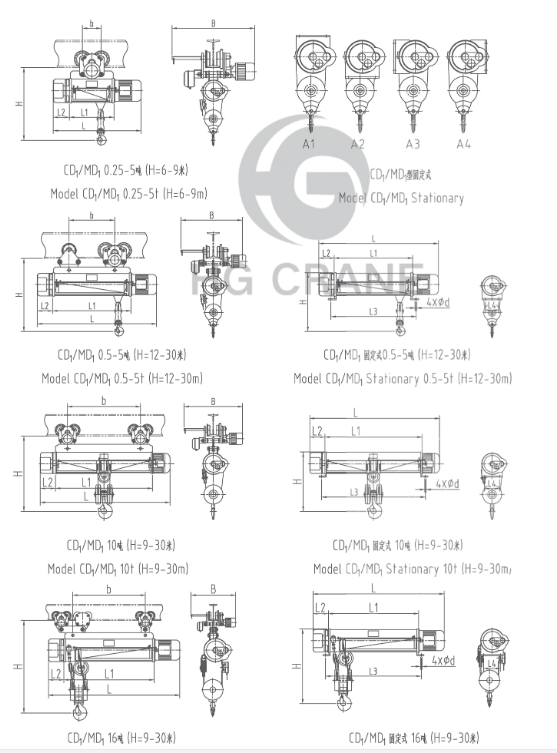

Technical Parameters
20t Load Capacity Electric Wire Rope Hoist with 20/30m/min Lift Speed and Steel Construction for Industrial Use
Type CD1(MD1)
Capacity (t) 0.25 0.5 1 2 3 5 10 16
Lifting Height(m) 3~9 6~12 6~30 6~30 6~30 6~30 9~30 9~30
Lifting Speed(m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Traveling Speed (m/min) 20 20/30 18
Rail 10-20b 16-28b 20a-32c 25a-50b 32b-50b 32b-63c
Work Duty M4
Power 3PH AC 380V 50Hz
