Specifications
Place of Origin :
Henan, China
Brand Name :
HGCRANE
Price :
≥800 USD
Model Number :
Custom-designed
Certification :
CE
MOQ :
1 SET
Payment Terms :
T/T
Supply Ability :
100 SET/Month
Delivery Time :
25 days
Packaging Details :
wooden pallet
Machinery Test Report :
Provided
Warranty :
1 Year
Applicable Industries :
Machinery Repair Shops, Manufacturing,Construction works
Condition :
New
Material :
HT200, cast steel 20#,Q235B, Q345B,etc
Application :
crane hoist,LH,QD,QZ,MH,LD
OEM :
Accepted
Color :
Custuestomer's Request
Description
Versatile Electric Hoist Wire Rope Drums for Construction, Warehouses and Workshops
Wire rope drums are critical components in hoisting mechanisms that experience significant wear during long-term operation. Similar to crane wheels in traveling mechanisms, drum grooves gradually wear down, which can accelerate wire rope deterioration and create serious safety hazards. Drum replacement is more complex than wheel replacement, requiring disassembly of the entire hoisting unit including motor, brake system, wire rope, and hook assembly.

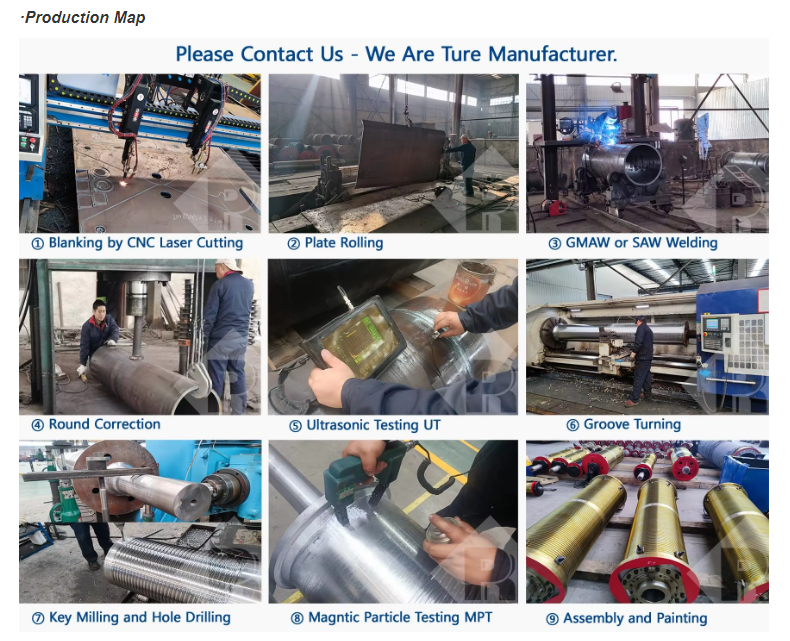

Drum Manufacturing Expertise
HG CRANE specializes in manufacturing two primary drum types: cast iron rope drums and steel plate rope drums. For smaller diameters, we utilize seamless steel tubes to ensure optimal performance and durability.
  • Cast iron drums feature self-lubricating properties for better wire rope compatibility
  • Rolling steel plate construction for larger diameter drums
  • Custom-designed drums available for specialized project requirements

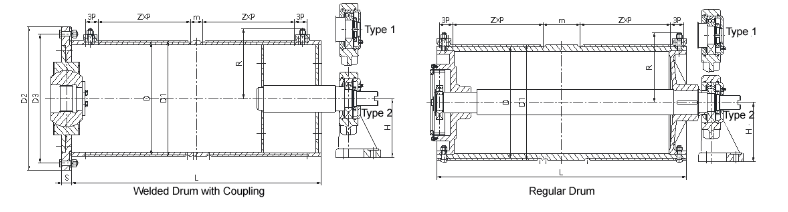

Technical Specifications
Property Value
Nominal Diameter 300-500/200-300/500-800/800-1000
Drum Body Length 1500-2500/2500-3500/3500-4000
Categories Drums
Our steel plate rope drums accommodate diameters up to 3000mm with surface hardness reaching 60 HRC. Weihua drum sets feature compact structures, lightweight design, and high assembly precision, making them ideal for metallurgy, mining, port operations, and energy industry applications.

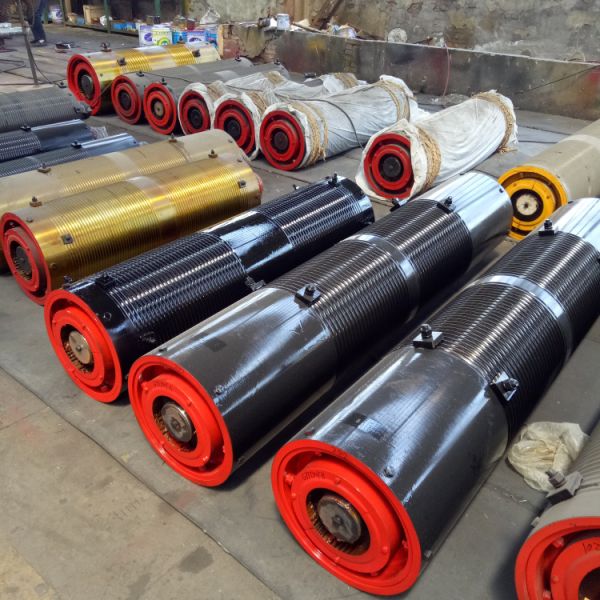

Assembly Display
Custom-designed Wire Rope Drum with High-assembly Precision and 3000mm Diameter Capacity for Crane Hoists Trolley
Custom-designed Wire Rope Drum with High-assembly Precision and 3000mm Diameter Capacity for Crane Hoists Trolley
Custom-designed Wire Rope Drum with High-assembly Precision and 3000mm Diameter Capacity for Crane Hoists Trolley
Custom-designed Wire Rope Drum with High-assembly Precision and 3000mm Diameter Capacity for Crane Hoists Trolley
Custom-designed Wire Rope Drum with High-assembly Precision and 3000mm Diameter Capacity for Crane Hoists Trolley
Product Packaging
Custom-designed Wire Rope Drum with High-assembly Precision and 3000mm Diameter Capacity for Crane Hoists Trolley
