Specifications
Place of Origin :
Henan, China
Brand Name :
HGCRANE
Price :
CN¥6.97-31.36/units
MOQ :
50M
Payment Terms :
T/T
Delivery Time :
3 DAYS
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty :
1 Year
Voltage :
AS NEED
Current :
AS NEED
Part name :
busbar
Brand :
HG CRANE
Packing :
Wooden Case
Cross Sectional Di :
1.5~50mm
Status :
Soft State
Insulation Material :
PVC
Application :
Construction Wire Mesh, Protecting Mesh, Lifting Equipments
Description
Soft State Safety Seamless Busbar Overhead Crane Conductor Rail
Our advanced crane busbar system delivers reliable power transmission for heavy machinery operations with customizable voltage requirements. Engineered for optimal performance and safety in demanding industrial environments.
Premium Construction: 99.99% oxygen-free copper core ensures superior conductivity and long-term reliability.
Key Features
  • Seamless conductor design eliminates voltage drops and power interruptions
  • Excellent conductivity with minimal energy loss
  • Simple installation and maintenance procedures
  • Durable construction resists wear and extends service life
  • Flexible design allows for easy modifications and replacements
  • Compact size for efficient transportation and handling
  • Enhanced safety features prevent contact line injuries
Technical Specifications
Turning Radius Minimum turning radius 750 mm

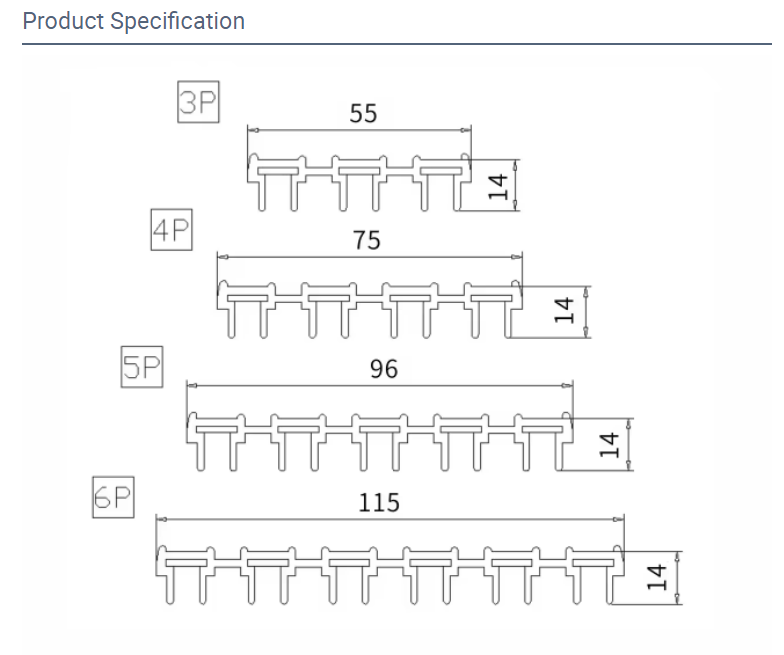

Conductor Quantity 3P, 4P, 6P configurations available
Current Rating 50A to 120A
Key Characteristics No interface, compact size, easy installation, simple maintenance, bendable design
Applications Single beam cranes, gantry cranes, entertainment facilities, warehouse storage equipment, and similar industrial machinery
Product Images

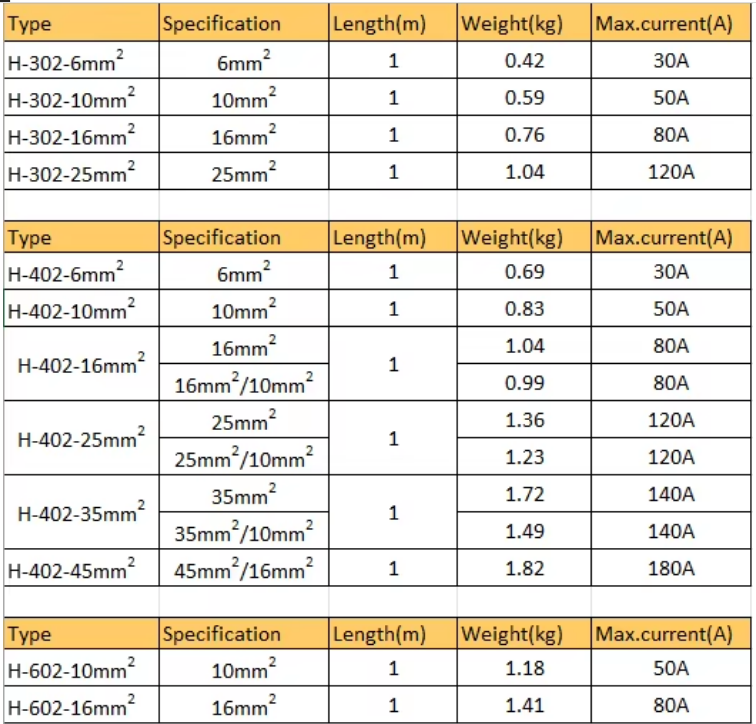

Type Specification Length(m) Weight(kg) Max.current(A)
H-302-6mm² 6mm² 1 0.42 30A
H-302-10mm² 10mm² 1 0.59 50A
H-302-16mm² 16mm² 1 0.76 80A
H-302-25mm² 25mm² 1 1.04 120A

Type Specification Length(m) Weight(kg) Max.current(A)
H-402-6mm² 6mm² 1 0.69 30A
H-402-10mm² 10mm² 1 0.83 50A
H-402-16mm² 16mm² 1 1.04 80A
16mm²/10mm² 1 0.99 80A
H-402-25mm² 25mm² 1 1.36 120A
25mm²/10mm² 1 1.23 120A
H-402-35mm² 35mm² 1 1.72 140A
35mm²/10mm²
1.49 140A
H-402-35mm² 45mm²/16mm² 1 1.82 180A

Type Specification Length(m) Weight(kg) Max.current(A)
H-602-10mm² 10mm² 1 1.18 50A
H-602-16mm² 16mm² 1 1.41 80A

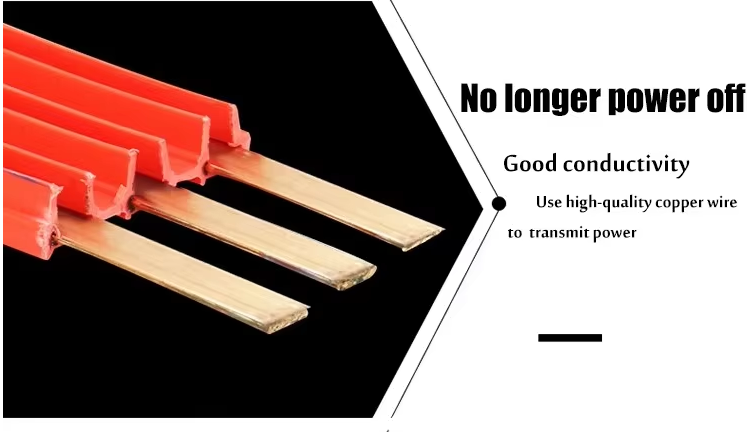

No longer power off

Good conductivity Use high-quality copper wire to transmit power

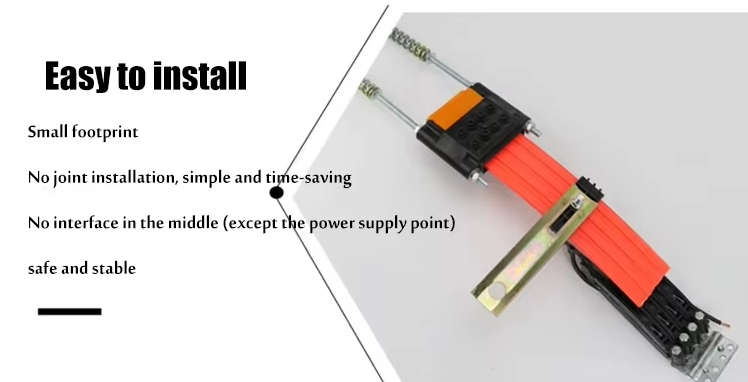

Easyto install

Small footprint
No joint installation, simple and time-saving
No interface in the middle (except the power supply point)
safe and stable
