Glass Suction Cup Lift with 800 kg Load Capacity Customizable Dimension and CE Certification for Glass Installation

Specifications

Brand Name :

HUAGONG

Place of Origin :

Henan, China

Price :

500~9000 USD

MOQ :

1 set

Payment Terms :

T/T

Delivery Time :

15 days

Compatible Material Type :

Glass, Metal, Plastic, Stone

Load Capacity :

800 kg

Number of pads :

8, 1, 10, 4

Warranty :

1 Year

Condition :

New

Controls :

Remote Control, Manual Control, Automatic Control

Dimension(L*W*H) :

customizable

Bag handle :

Horizontal Handle

Load Movement :

Horizontal, 90° Tilt, Manual 360° Rotation, Manual 180° Rotation

Power Source :

AC Power, Battery

Release mechanism :

Release Valve

Weight (KG) :

160

Applicable Industries :

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Other

Description

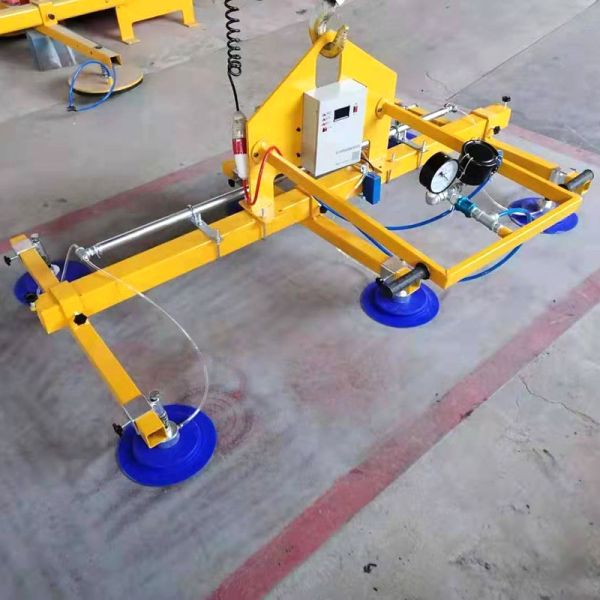

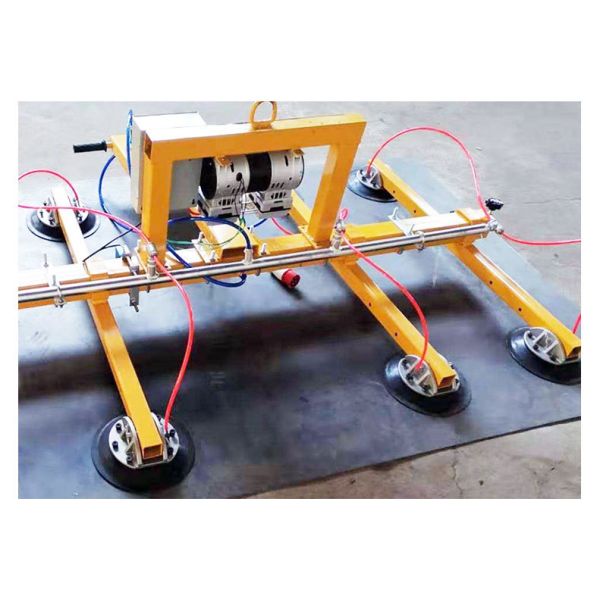

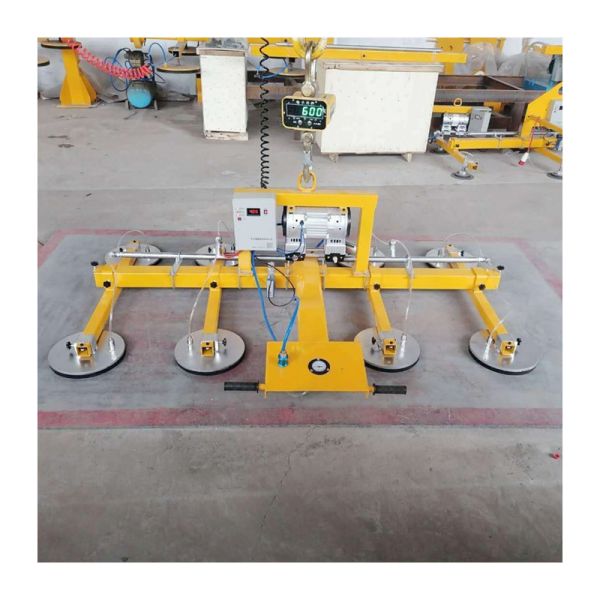

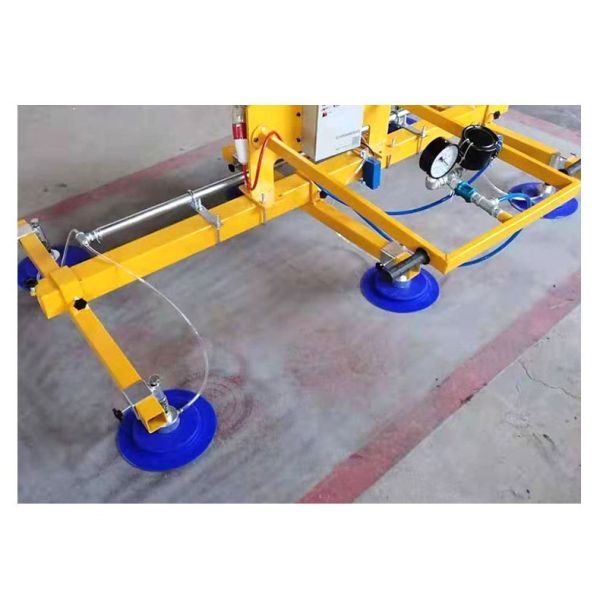

AC Power Customizable Glass Installation Robot with Electric Suction Cup System

This advanced glass handling robot features a rotating electric suction cup lift system with CE certification, designed for efficient material handling in industrial applications.

Primarily designed for laser cutting machines to achieve semi-automatic loading and unloading operations, as well as CNC punching and material handling applications. The system utilizes vacuum suction technology for rapid material handling with high stability, minimal vibration, and extended service life. Features movable suction cups with adjustable plate area control.

Product Specifications

Parameter	JS-J1000-5m	JS-J800-3m	JS-J800-2m
Product Type	Scalable Heavy-Duty Plug-in Type	Scalable Heavy-Duty Plug-in Type	Scalable Heavy-Duty Plug-in Type
Safety Loading Capacity	1000kg	800kg	800kg
Suction Cup Quantity	12	8	8
Suction Cup Diameter (mm)	200	200	200
Size (mm)	5000*1000	3000*1000	2200*1000
Sheet Size (mm)	6000*1500	4000*1500	3000*1500
Working Power Supply	220V	220V	220V

Key Features

Low noise operation - German-engineered vacuum pump with low vibration gas displacement and quiet vacuum adsorption

Low noise operation - German-engineered vacuum pump with low vibration gas displacement and quiet vacuum adsorptionExcellent material quality - Rubber suction cups capable of handling rough surface plates and withstanding high temperatures Glass Suction Cup Lift with 800 kg Load Capacity Customizable Dimension and CE Certification for Glass Installation

High efficiency - Rapid response with one-second suction engagement and two-second release cycle

Products Features

Core feature:

1. Dual Safety Guarantee: Dual-oop vacuumsystem + power-off self-locking (pressureretention 30 minutes), compliant with EN13155 safety standards.

2. Non-deotructive Handling: Food-grade NBRsuction cups enable zero-contact operation,
suitable for flat/curved/coated glass(thickness 1 -50mm).

3. Efficient and Flexible:
(1 Single-person operation for 180" rotation
and precise positioning
2) Modular suction cups for quick
replacement (5 minutes to switch between
different sizes)

4. Extreme Adaptability: Resistant to -20'C to150°C temperatures,

IP54 waterproof anddustproof, self-adaptive within a slope of 3".

Product Paramenters

Load-bearing	Number of suction cups	Size of euction cups	Main beam	Cross beam	Size of the main beam
1000KG	10	230mm	5m	1m	80*80mm
1500KG	12	230mm	5m	1m	80*80mm
2000KG	12	230mm	5m	1m	80*80mm
