Specifications
Place of Origin :
Henan, China
Brand Name :
HGCRANE
Certification :
CE ISO
Price :
3000~10000 USD
Model Number :
QD
MOQ :
SET
Payment Terms :
T/T
Delivery Time :
25 Days
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Max. Lifting Height :
20 m
Span :
25M
Warranty :
1 Year
Weight (KG) :
5000 kg
Lifting mechanism :
Heady Duty Trolley
Crane type :
Double Girder Overhead Bridge Automatic Crane
Color :
Customized Color Acceptable
Power supply :
Under Customers Local Industry Voltage
Work Duty :
A5~A8
Lifting speed :
Variable Speed (standard)
Description

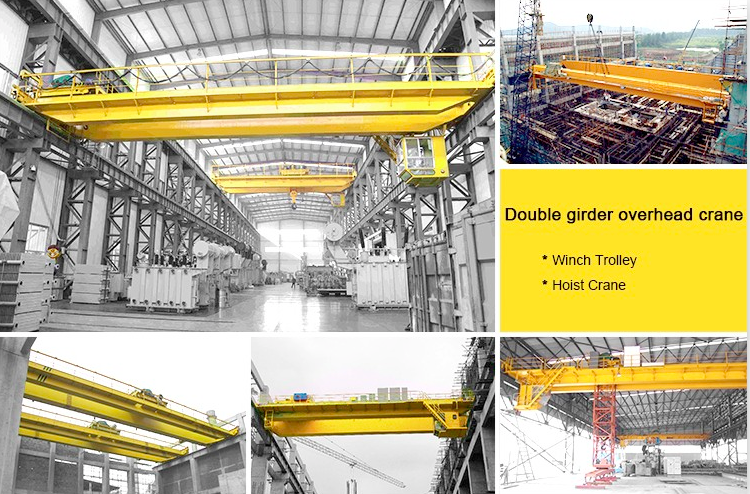

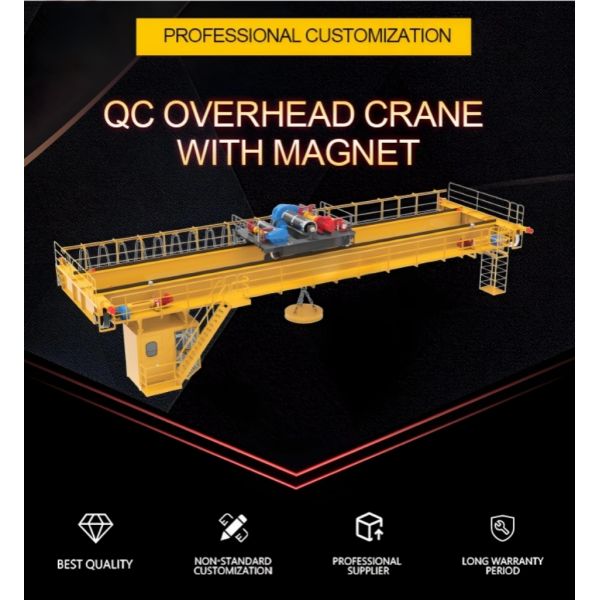

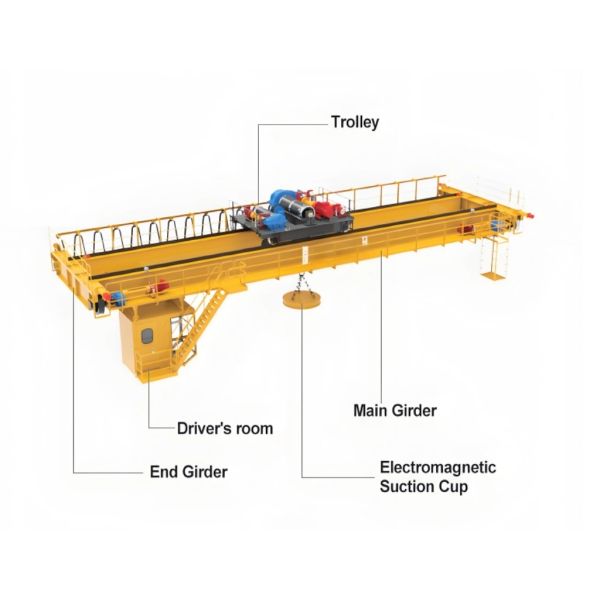

Double Girder Overhead Bridge Automatic Crane with QC Type Magnet

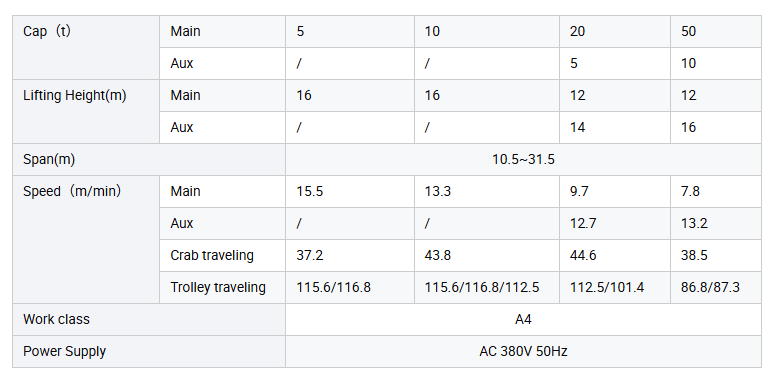

Lifting Capacity: 1 Ton, 3 Ton, 5 Ton, 10 Ton, 20 Ton, 50 Ton
Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control
ProductApplication

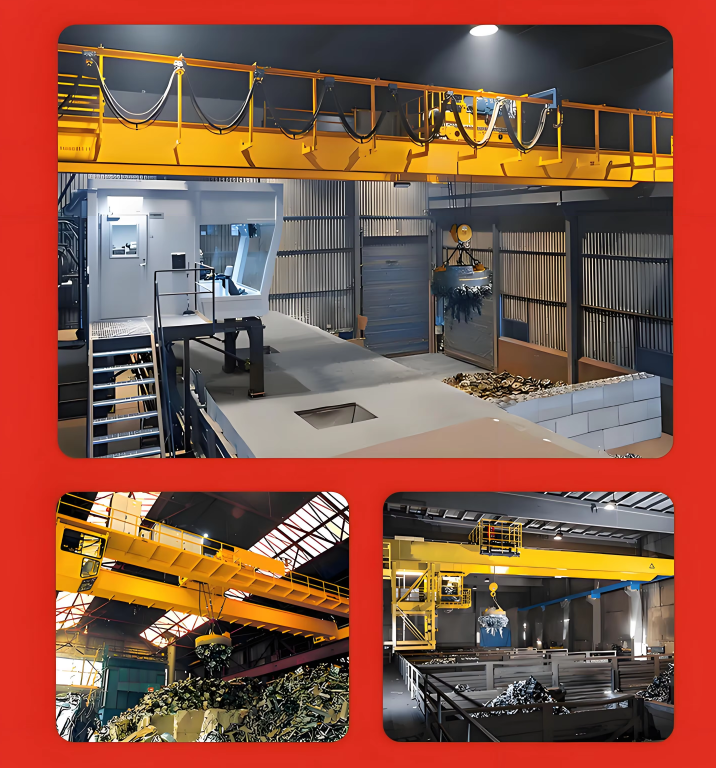

Electromagnetic overhead crane is one highly efficient material handling
equipment with removable electric magnet for handling and lifting metal.

Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control

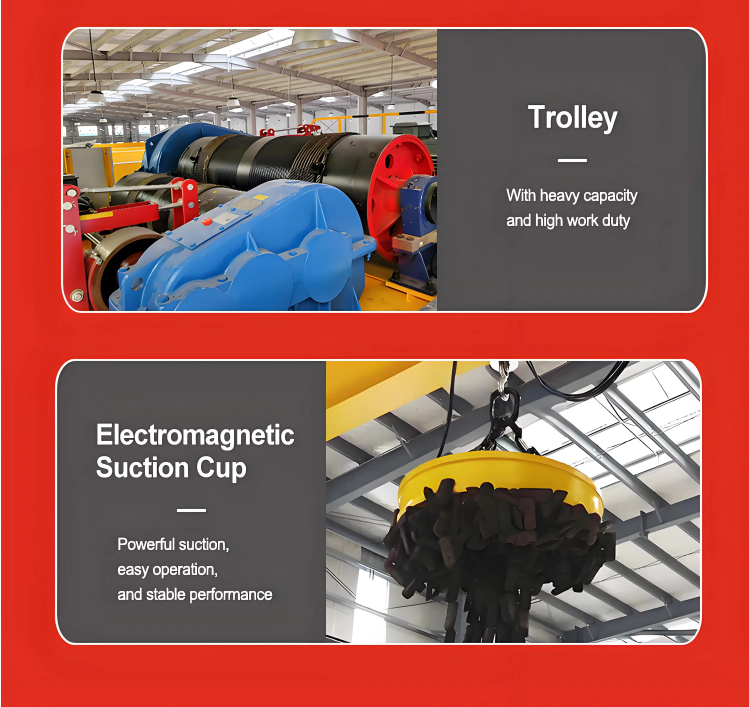

Powerful electromagnetic suckerLong span coverage Versatility and easy operation! ! Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control
Powerful electromagnetic suckerLong span coverage Versatility and easy operation! !
Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control

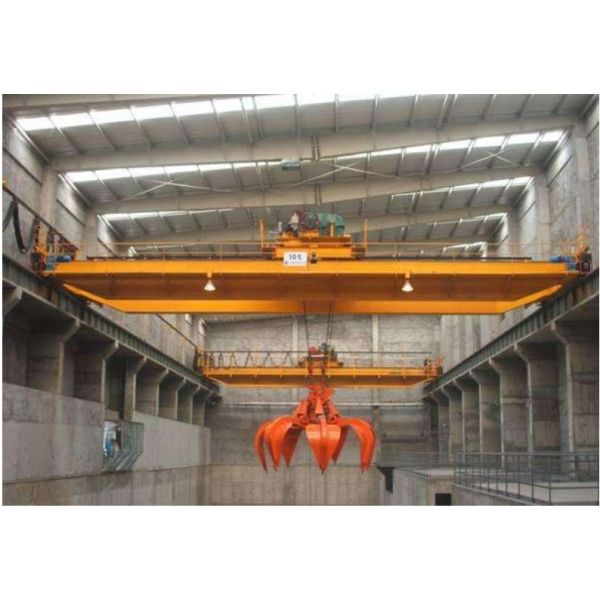

Double Girder Overhead Crane with Hydraulic Grab
The QZ grab bridge crane consists of bridge structure, cart running mechanism, trolley, electrical system, and grab mechanism. Designed for handling loose materials including sand, fertilizer, fine iron filings, and similar bulk materials.
While the lifting mechanism differs from QD bridge cranes, other operational principles remain consistent. Single main beam LZ grab cranes are available for capacities under 5 tons, but for frequent material handling and high-efficiency operations, the QZ grab bucket double beam bridge crane is the recommended solution.
Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control
Key Features & Benefits
  • Heavy-duty construction for high-efficiency operations
  • Suitable for diverse environments including high-temperature and explosion-proof applications
  • Extended service life: 30-50 years
  • Simplified installation and maintenance procedures

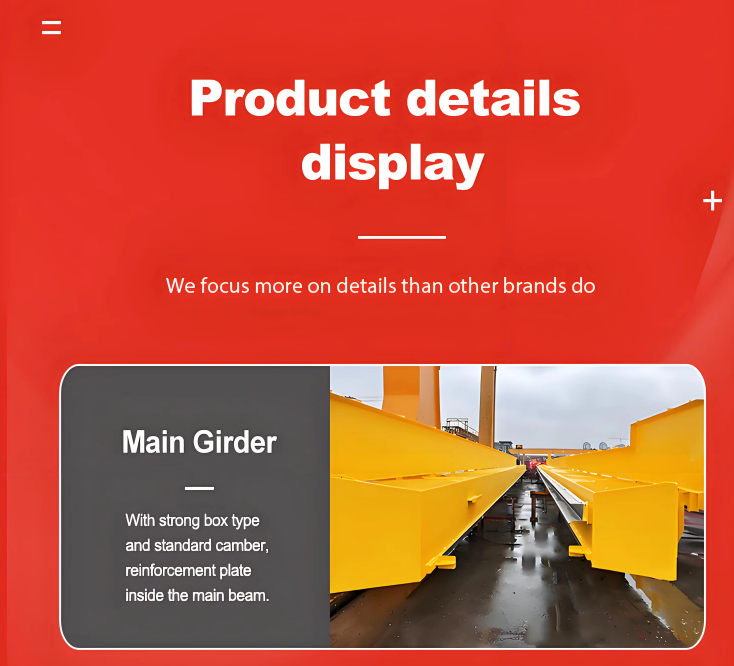

  • Optimized structural design with strong rigidity
  • Frequency inverter speed control capability

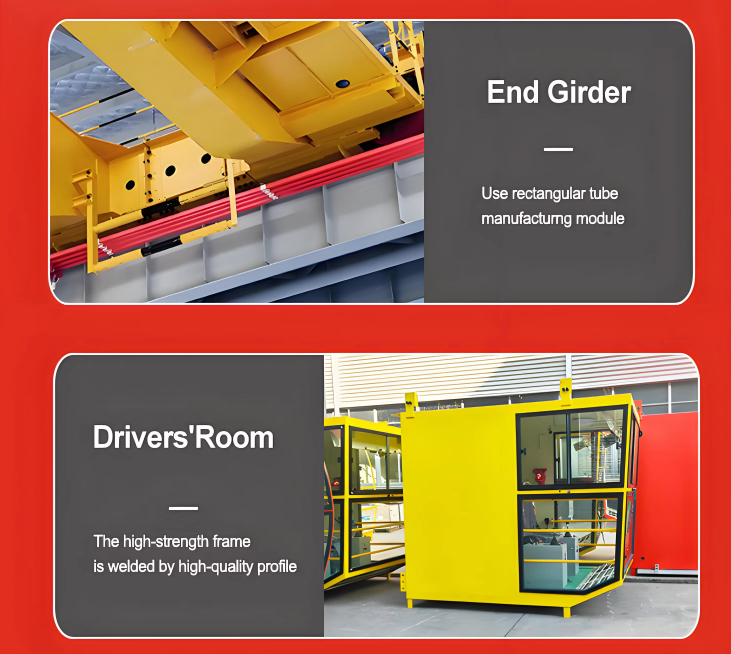

  • Multiple control options: cabin control or remote control
  • Versatile lifting attachments: hanging beam magnet, magnet chuck, grab, or C hook
  • Comprehensive safety systems including movement limit switches and load limiters
Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed ControlMagnet Control Advantages
  • Current-controlled operation eliminates manual hanging/unhooking requirements
  • Enhanced personnel safety and reduced labor intensity
  • Adjustable magnetic strength through current control for operational flexibility
  • Power storage equipment for reliable performance
  • High safety performance with easy maintenance access

Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control Double Girder Overhead Bridge Crane with QC Type Magnet and 1 Ton to 50 Ton Lifting Capacity and Variable Speed Control
