Specifications
Place of Origin :
Henan, China
Brand Name :
HUAGONG
Price :
3000~9000 USD
Model Number :
MH
Certification :
CE
MOQ :
1 SET
Payment Terms :
T/T
Delivery Time :
25 Days
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Bearing, Gearbox, Motor
Application :
Outdoor
Rated Loading Capacity :
20 Ton
Rated Lifting Moment :
50KN~3000KN
Max. Lifting Height :
6/9m
Warranty :
1 Year
Weight (KG) :
12540 kg
Power supply :
Customer request
Control method :
Remote Controller and ground control
Color :
Clients' Requirments
Lifting speed :
Variable Speed (standard)
Crane feature :
Easy Operated Girder Gantry Crane
Lifting mechanism :
Electric hoist
Type :
MH
Main electrical parts :
According to customer's needs
Description

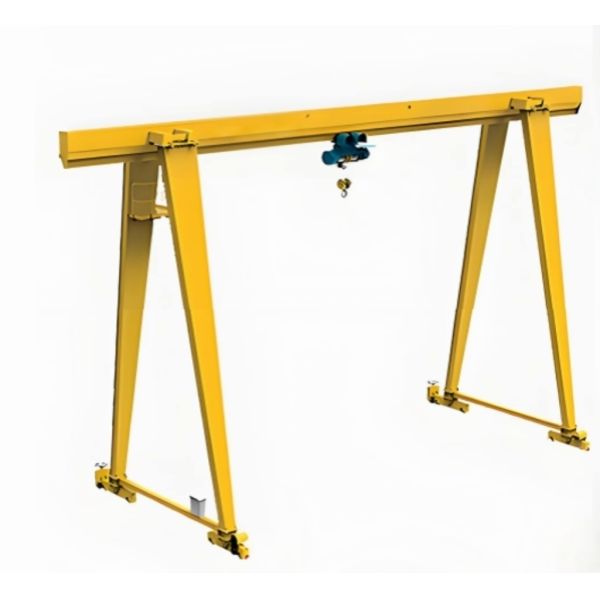

20 Ton Portable Gantry Crane with Remote and Ground Control
This heavy-duty portable gantry crane offers exceptional lifting capacity with flexible height adjustment and dual control options for maximum operational efficiency.
  • Simple and Compact Structure: Box frame design with electric hoist for cost-effective operation
  • Customizable Specifications: Tailored solutions for span, lifting capacity, and height requirements
  • User-Friendly Operation: Easy to control design that saves labor and energy
  • Durable Construction: High-quality materials ensure extended service life and reliability


20 Ton Rated Loading Capacity Portable MH Gantry Crane with Height Adjustable Feature and Remote Controller

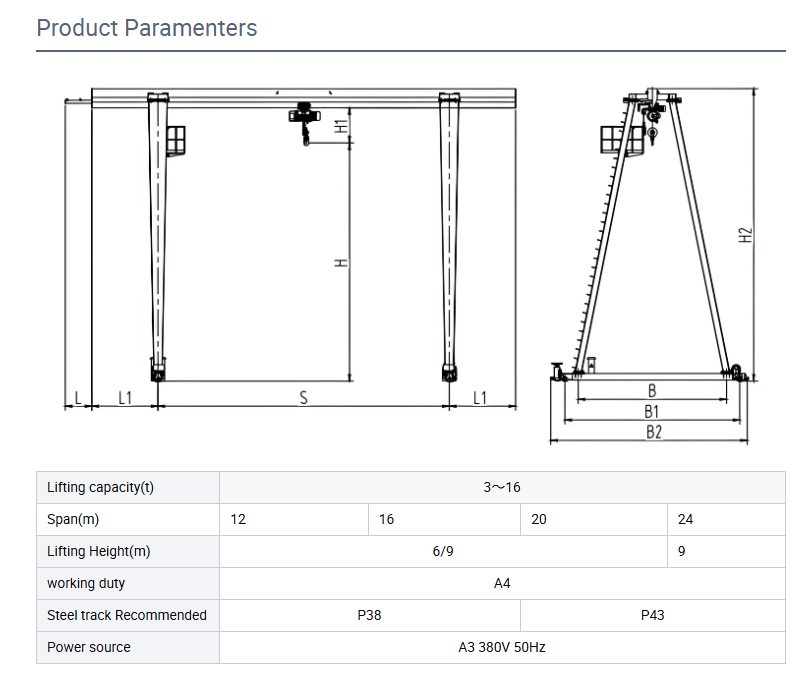

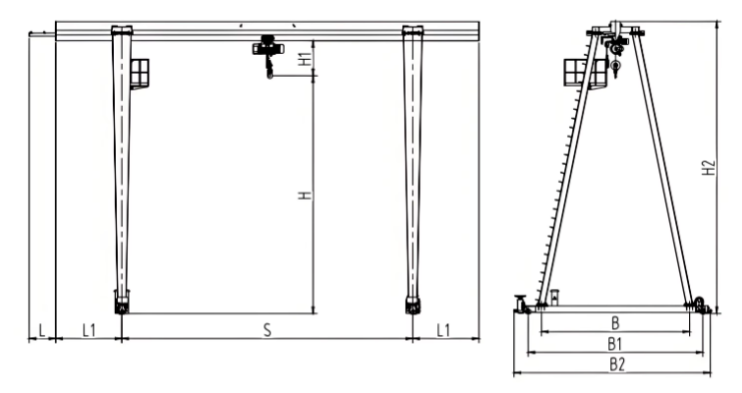

Lifting capacity(t) 3-16
Span(m) 12 16 20 24
Lifting Height(m) 6/9 9
working duty A4
Steel track Recommended P38 P43
Power source A3 380V 50Hz

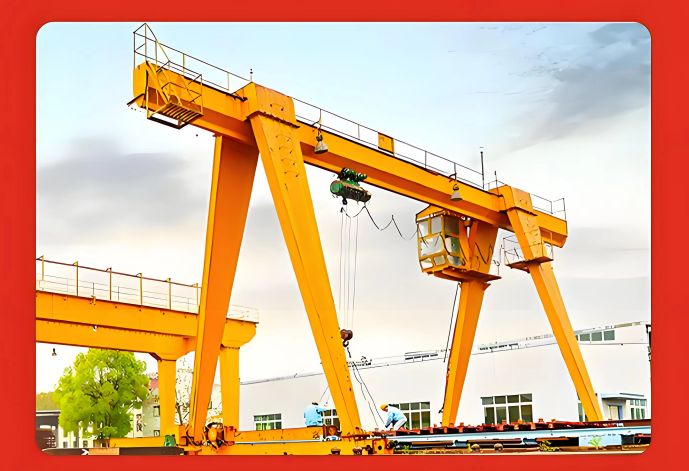

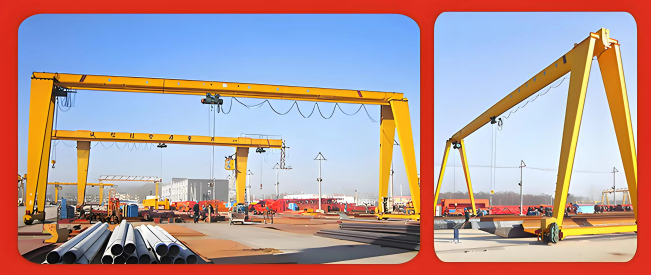

Product UsageScenario display

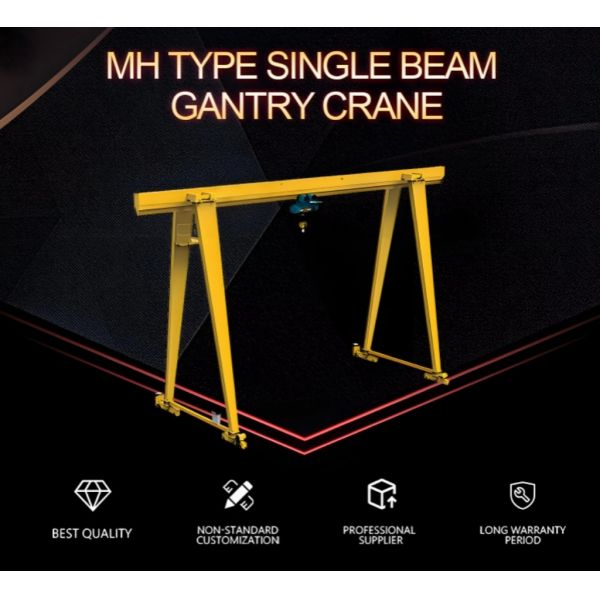

Taking electric hoist as the lifting mechanism, single beam gantry cranecould perform tasks with high efficiency and stability.

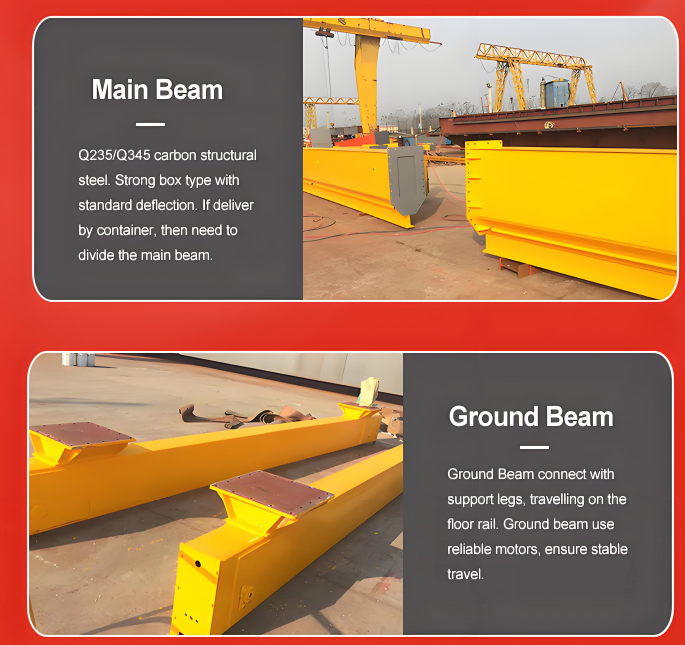

Main Beam

Q235/Q345 carbon structuralsteel. Strong box type withstandard deflection. If deliverby container, then need todivide the main beam.


Ground Beam

Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.

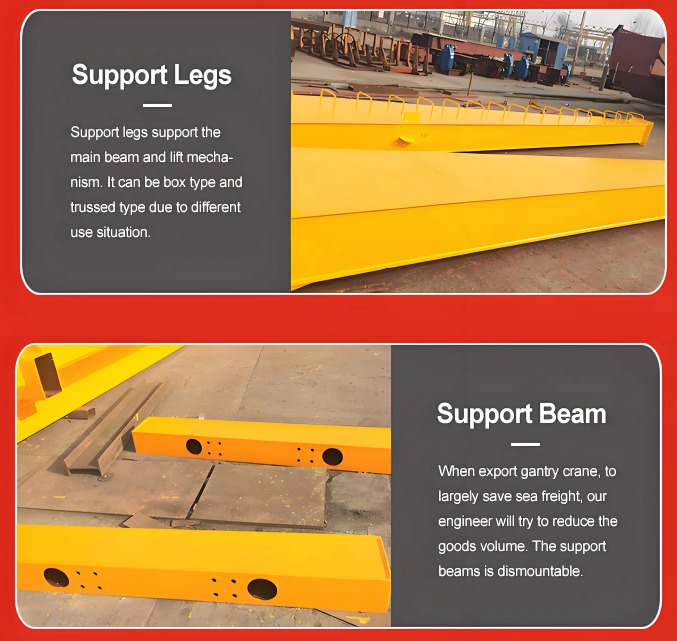

Support Legs

Support legs support themain beam and lift mecha-nism. It can be box type andtrussed type due to differentuse situation.


Support Beam

When export gantry crane, tolargely save sea freight, ourengineer will try to reduce thegoods volume. The supportbeams is dismountable.

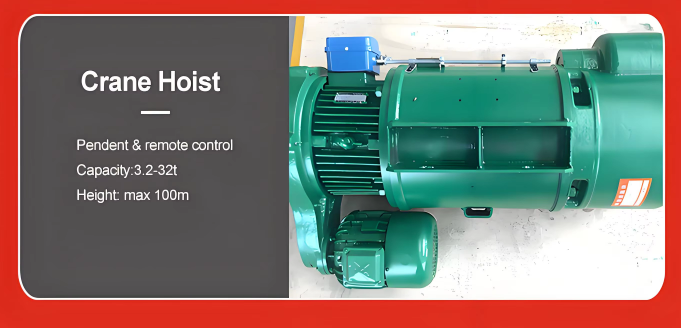

Crane Hoist

Pendent & remote control

Capacity:3.2-32t

Height max 100m

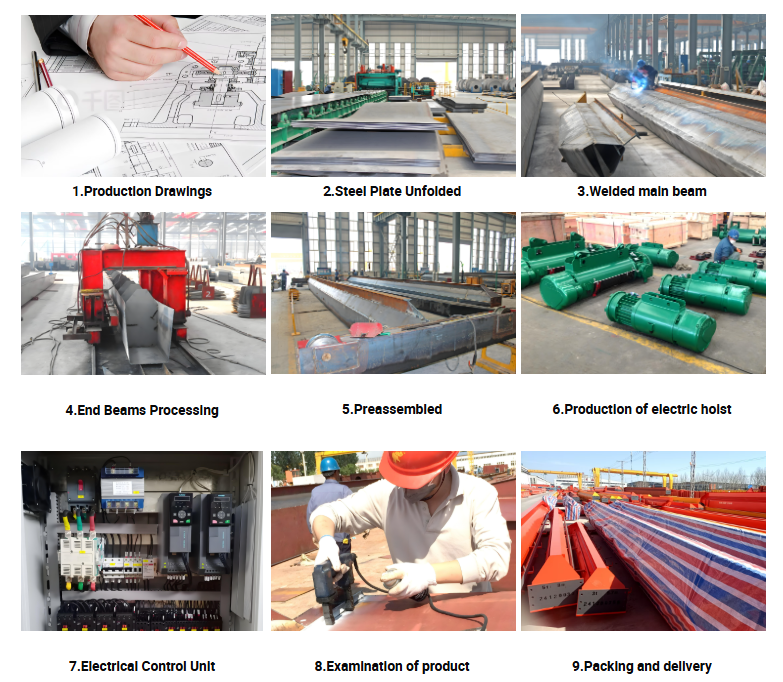

1.Production Drawings
4.End Beams Processing
7.Electrlcal Control Unlt
2.Steel Plate Unfolded
5.Preassembled
8.Examination of product
3.Welded main beam
6.Productlon of electrlc holst
9.Packing and dellvery
