Specifications
Place of Origin :
Henan, China
Brand Name :
HUAGONG
Price :
3000~9000 USD
Model Number :
MH
Certification :
CE
MOQ :
1 SET
Payment Terms :
T/T
Delivery Time :
25 Days
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Bearing, Gearbox, Motor
Application :
Outdoor
Rated Loading Capacity :
20 Ton
Rated Lifting Moment :
50KN~3000KN
Max. Lifting Height :
6/9m
Warranty :
1 Year
Weight (KG) :
12540 kg
Power supply :
Customer request
Control method :
Remote Controller and ground control
Color :
Clients' Requirments
Lifting speed :
Variable Speed (standard)
Crane feature :
Easy Operated Girder Gantry Crane
Lifting mechanism :
Electric hoist
Type :
MH
Main electrical parts :
According to customer's needs
Description
20-Ton Remote Control Adjustable Height Gantry Crane

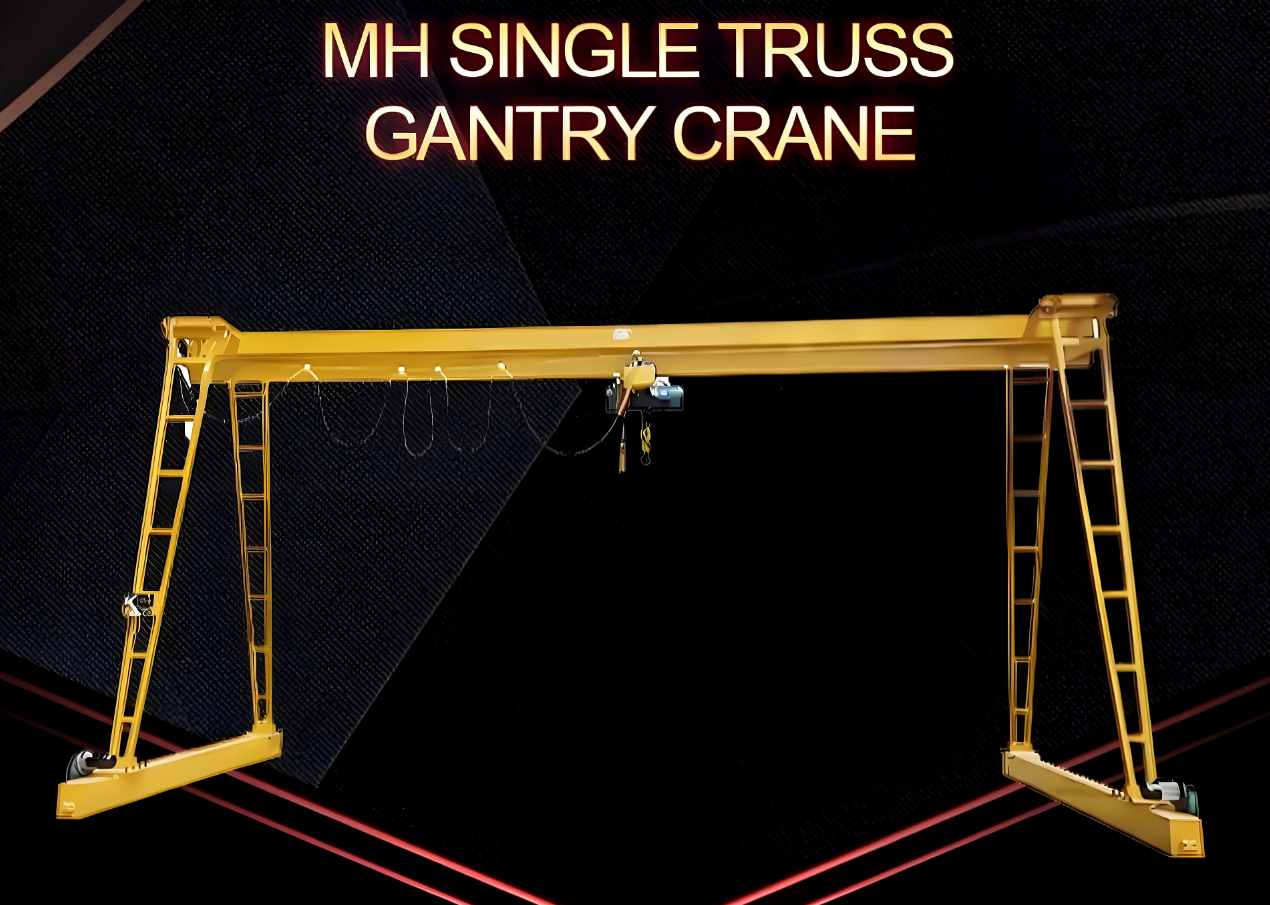

MH SINGLE TRUSS GANTRY CRANE
20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction
Simple results, non-standard customization, strong adaptability! !
20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

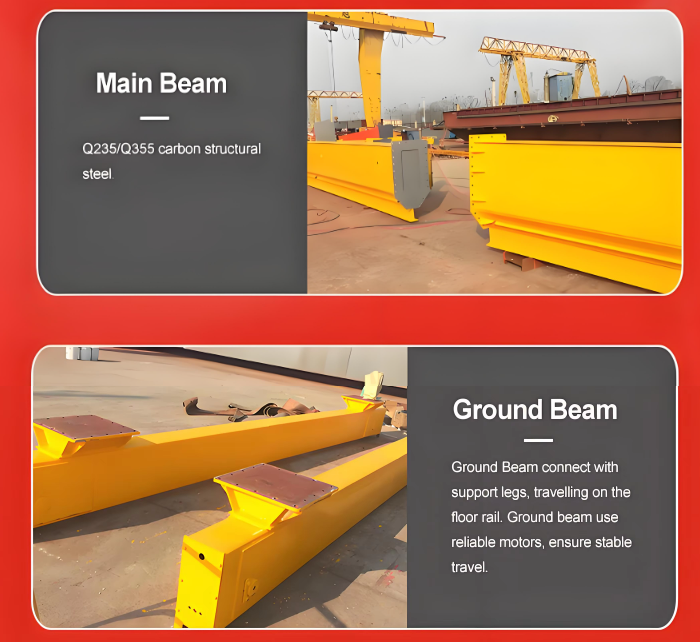

Main Beam
Q235/Q355 carbon structural steel

Ground Beam
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.

20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

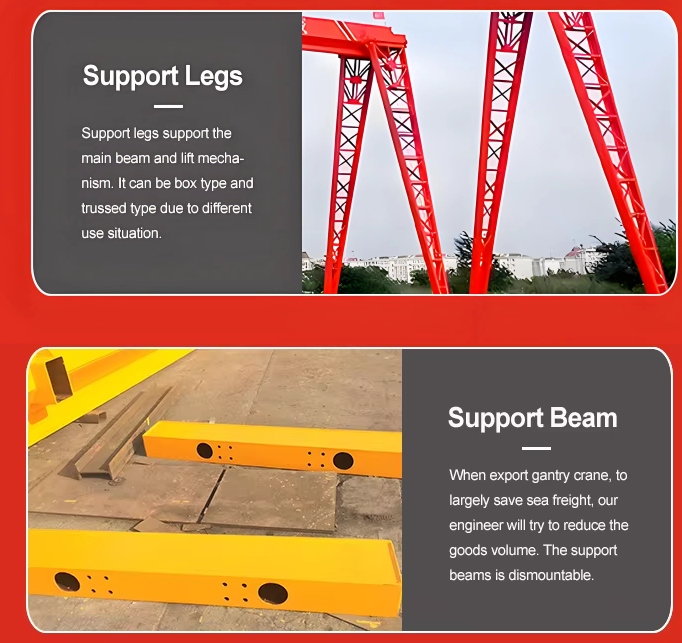

Support Legs
Support legs support themain beam and lift mecha-nism. It can be box type andtrussed type due to differentuse situation.

Support Beam
When export gantry crane, tolargely save sea freight, ourengineer will try to reduce thegoods volume. The supportbeams is dismountable.

20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

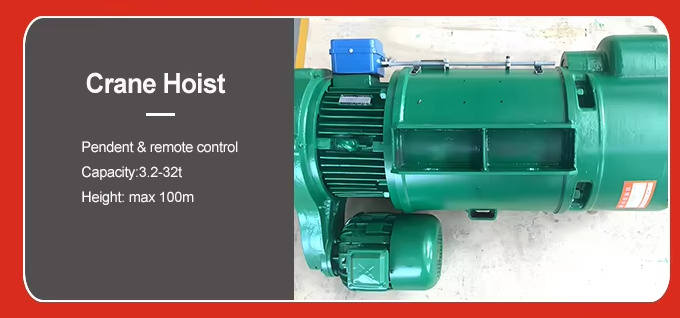

Crane Hoist
Pendent & remote control Capacity:3.2-32t Height max 100m


20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction 20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction
Key Features
  • Simple and compact structural design

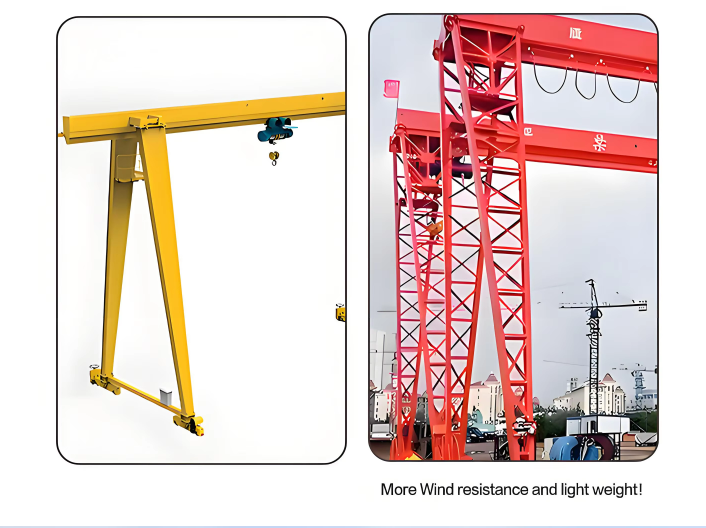

  • Minimal wind surface area for stable operation
  • Lightweight construction with strong 20-ton lifting capacity
  • Exceptional operational stability and performance
  • Reduced daily maintenance requirements
  • Cost-effective solution for plant and workshop construction
  • Dual control options: ground control and remote control
Industrial Applications
  • Logistics Warehousing: Ideal for efficient material handling in warehouse environments with optimized space utilization
  • Manufacturing Plants: Perfect for parts handling in production workshops, offering flexible operation in limited spaces
  • Port Terminals: Suitable for handling and stacking small containers, particularly effective for temporary work sites or smaller terminal operations
20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

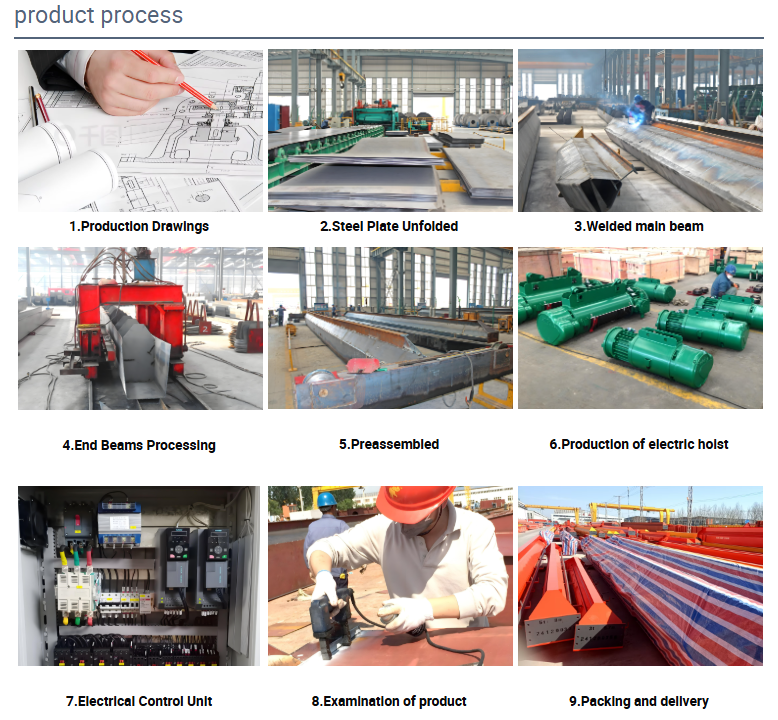

product process:
1.Production Drawings
4.End Beams Processing
7.Electrlcal Control Unlt
2.Steel Plate Unfolded
5.Preassembled
8.Examination of product
3.Welded main beam
6.Productlon of electrlc holst
9.Packing and dellvery
20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction 20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

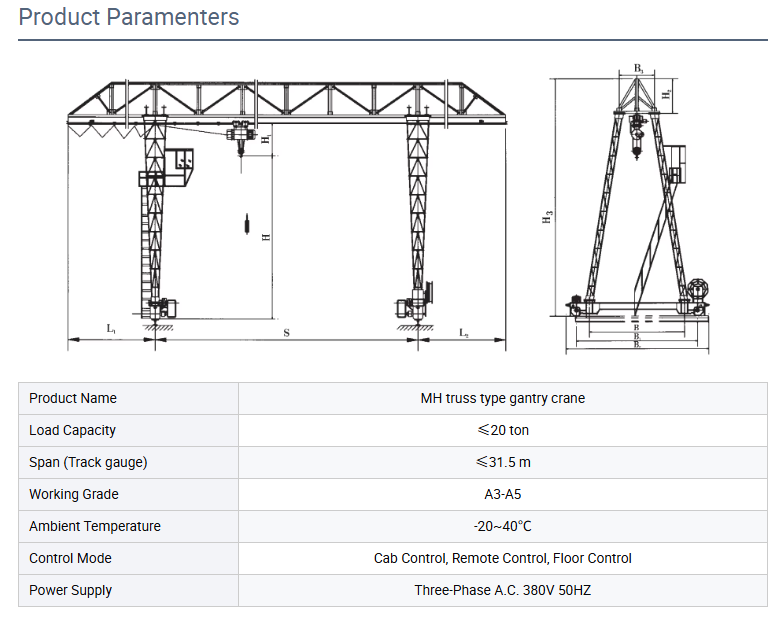

Product Name MH truss type gantry crane
Load Capacity ≤20 ton
Span (Track gauge) ≤31.5m
Working Grade A3-A5
Ambient Temperature -20~40°C
Control Mode Cab Control, Remote Control, Floor Control
Power Supply Three-Phase A.C. 380V 50HZ
