Specifications
Place of Origin :
Henan, China
Brand Name :
HGCRANE
Price :
6000~15000 USD
Model Number :
L
Certification :
CE
MOQ :
1 SET
Payment Terms :
T/T
Delivery Time :
25 DAYS
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Rated Loading Capacity :
5~50ton
Max. Lifting Height :
20 m
Span :
30
Warranty :
1 Year
Weight (KG) :
5000 kg
Hoisting tool available :
Grab, clamp, electro-magnetic etc.
Color :
Clients' Requirments
Lifting Capacity :
5~32 Ton
Control Method :
Cabin Control+Remote Control
Power Supply :
Clients' Requirments
Safety device :
Overload protection, limit switch, emergency stop etc.
Work Duty :
A3-A5
Application :
Harbor, storage yard
Description
Power Supply Clients Requirements L Type Single Girder Overhead Hoist Hook Grab Gantry Cranes Outdoor With Work Duty A3 A5 5~50ton
Professional outdoor gantry crane system designed for heavy-duty industrial applications with lifting capacities ranging from 5 to 50 tons.

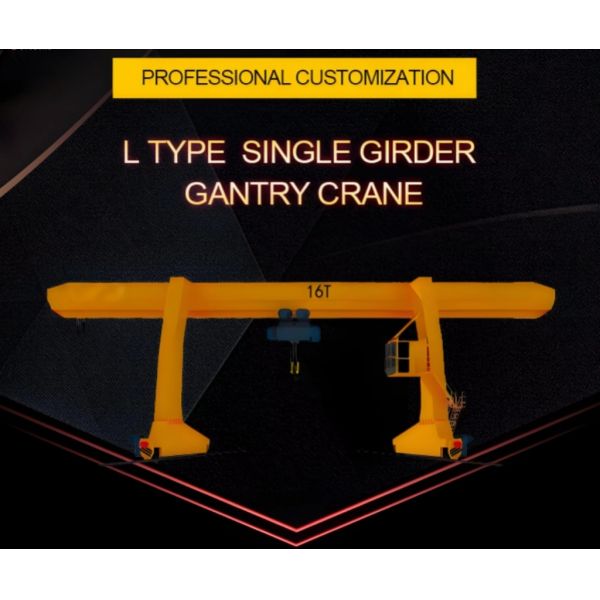

PROFESSIONAL CUSTOMIZATION
LTYPE SINGLE GIRDER GANTRY CRANE
With CE certificate,high quality material Reasonable price! !
COMPACT DESIGN: THE L-SHAPE STRUCTURE SAVES SPACE AND IS PARTICULARLYSUITABLE FOR WORKING ENVIRONMENTS WITH LIMITED HEIGHT AND AREA.
STRONG FLEXIBILITY: THE SPAN, HEIGHT AND LIFTING WEIGHT CAN BE CUSTOMIZEDACCORDING TO NEEDS TO ADAPT TO AVARIETY OF WORKING CONDITIONS.
STABLE AND RELIABLE: HIGH-QUALITY STEEL AND ADVANCED WELDING TECHNOLOGYTO ENSURE THAT THE EQUIPMENT IS STURDY AND DURABLE.

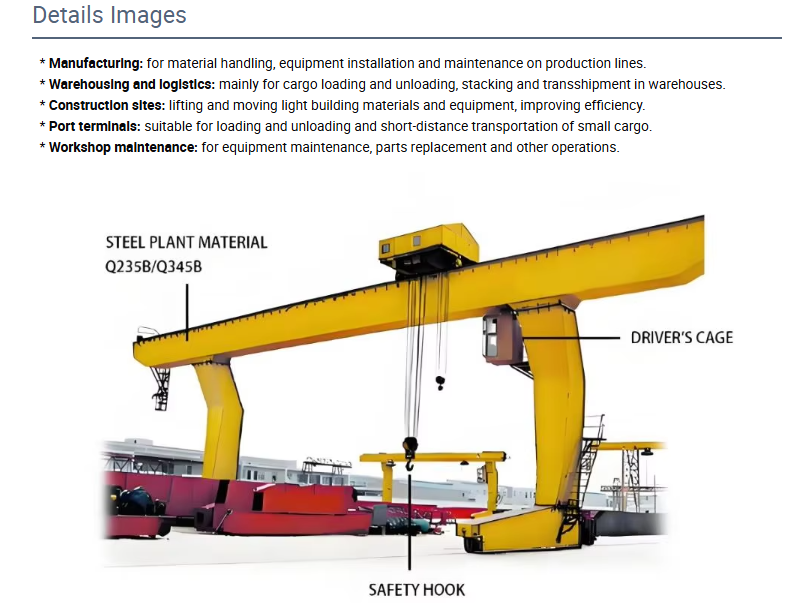

Details Images
Manufacturing: for material handling, equipment installation and maintenance on production lines.
Warehousing and loglstlcs: mainly for cargo loading and unloading. stacking and transshipment in warehouses.
Constructlon stes: lifting and moving light building materials and equipment, improving efficiency.
Port terminals: suitable for loading and unloading and short-distance transportation of small cargo.
Workshop maintenance: for equipment maintenance, parts replacement and other operations.

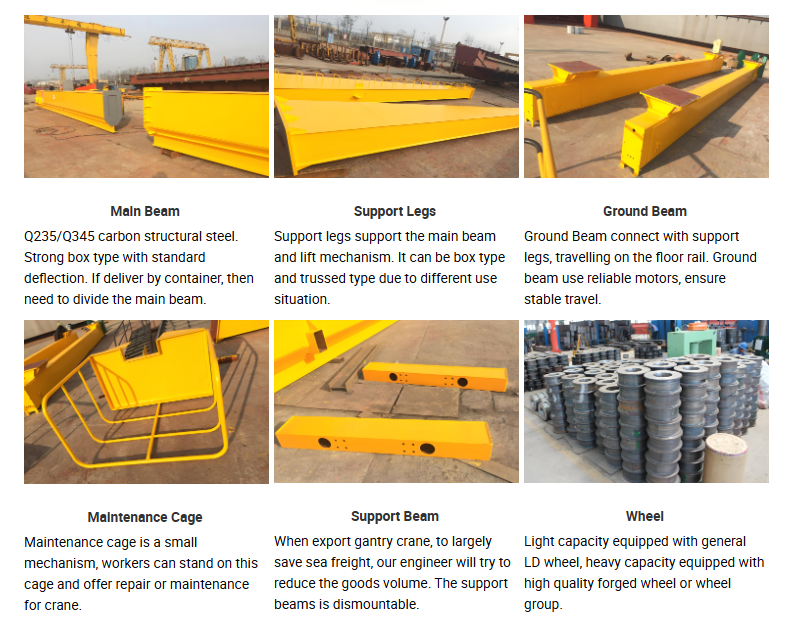

Maln Beam
Q235/Q345 carbon structural steel Strong box type with standard deflection. If deliver by container, thenneed to divide the main beam.
Support Legs
Support legs support the main beamand lift mechanism. It can be box typeand trussed type due to different usesituation.
Ground Beam
Ground Beam connect with support legs, travelling on the floor rail. Ground beam use reliable motors, ensurestable travel.
Malntenance Cage
Maintenance cage is a small mechanism, workers can stand on thiscage and offer repair or maintenance for crane.
Support Beam
When export gantry crane, to largely save sea freight, our engineer will try toreduce the goods volume. The support beams is dismountable.
Wheel
Light capacity equipped with generalLD wheel, heavy capacity equipped withhigh quality forged wheel or wheelgroup.
Why choose ourcrane?
We focus more on details than other brands do
Professional machinemanufacturingproduction
Professionalinstallation of ElectricControl Box Assembly
Special person isresponsible for themain building materials
Painting and dryingquality pass

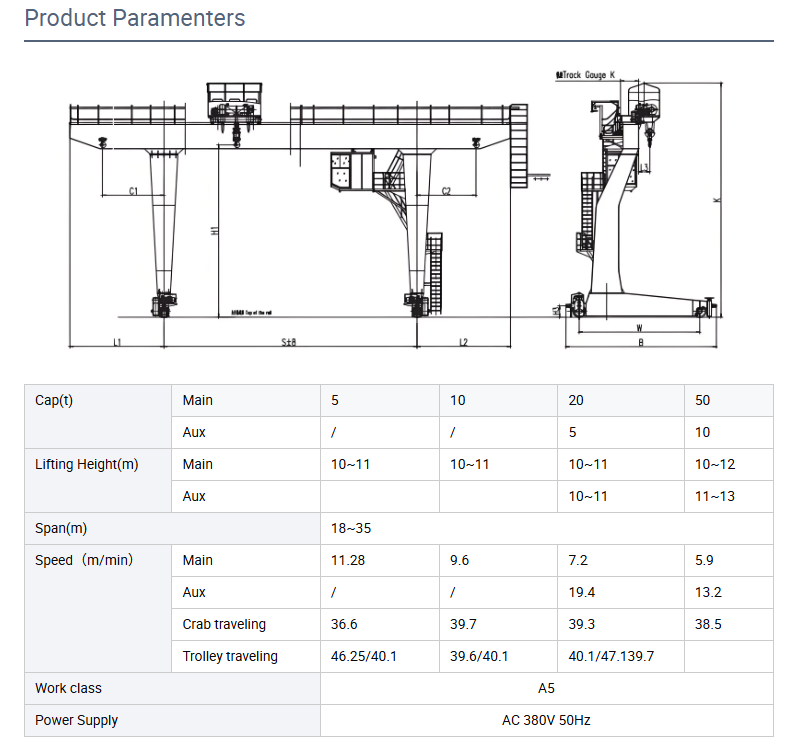

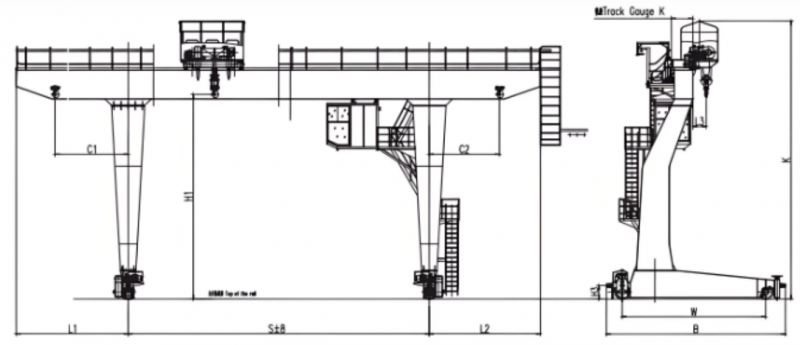

Product Paramenters
Cap(t) Main 5 10 20 50
Aux / / 5 10
Lifting Height(m) Main 10~11 10~11 10~11 10~12
Aux

10~11 11~13
Span(m)
18~35
Speed (m/min) Main 11.28 9.6 7.2 5.9
Aux / / 19.4 13.2
Crab traveling 36.6 39.7 39.3 38.5
Trolley traveling 46.25/40.1 39.6/40.1 40.1/47.139.7
Work class
A5
Power Supply
AC 380V 50Hz
