Specifications
Place of Origin :
Henan, China
Price :
500~3000 USD
Brand Name :
HG CRANE
Model Number :
MH
Certification :
CE
MOQ :
1 SET
Payment Terms :
T/T
Delivery Time :
7 days
Core Components :
Bearing, Engine, PLC, Gearbox, Motor, Pressure Vessel, Gear, Pump
Rated Loading Capacity :
450 kg, 150 kg, 45 Ton, 1Ton, 250 kg
Max. Lifting Height :
3 m
Warranty :
1 Year
Weight (KG) :
100 kg
Description

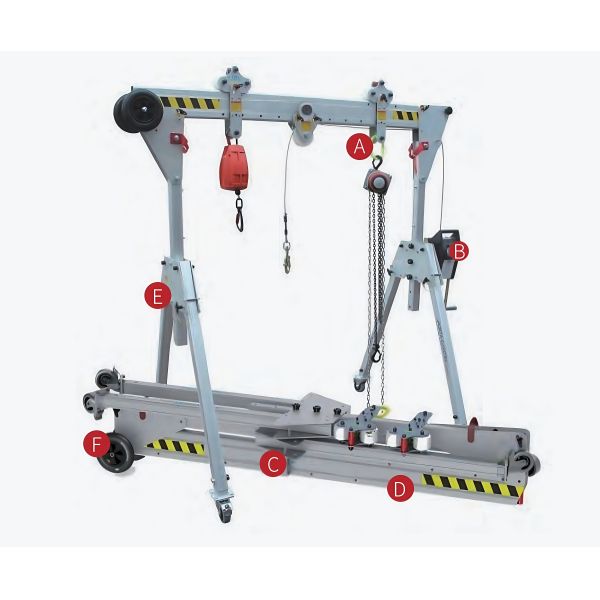

Lightweight Mini Aluminum Gantry Crane for Small Scale Operations PRG
This compact aluminum gantry crane is specifically designed for small-scale industrial operations, offering exceptional portability and ease of use while maintaining robust lifting capabilities.

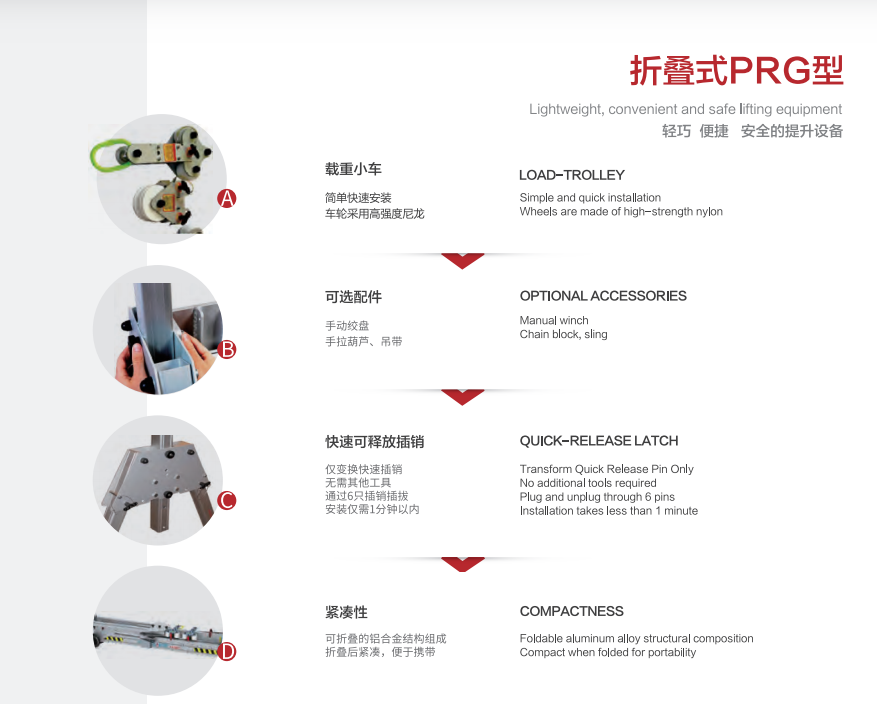

Folding Type PRG Model
Design criteria EN795 Class B » Portability Portablequick to instal » Modular design » Lifting up to500 kg » Lifting up to250 kg
Lightweight, convenient and safe lifting equipment
LOAD-TROLLEY
Simple and quick installationWheels are made of high-strength nylon
OPTIONALACCESSORIES
Manual winchChain block, sling
QUICK-RELEASE LATCH
Transform Quick Release Pin OnlyNo additional tools required
Plug and unplug through 6 pins
Installation takes less than 1 minute
COMPACTNESS
Foldable aluminum alloy structural compositionCompact when folded for portability

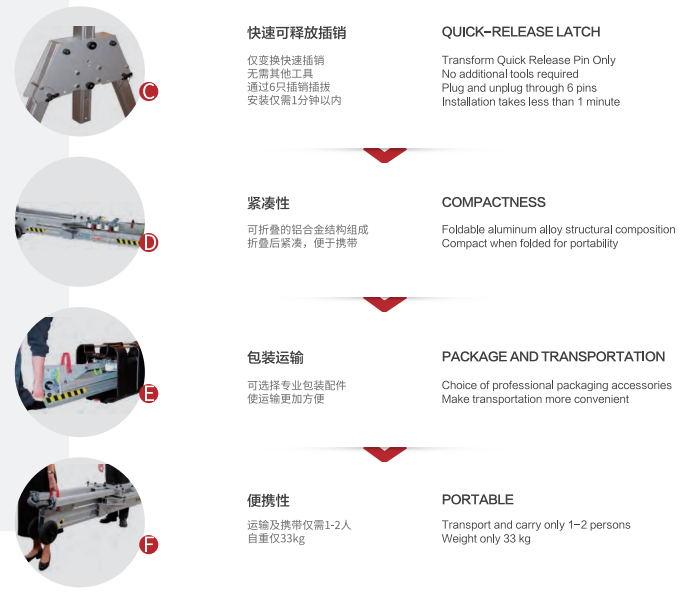

QUICK-RELEASE LATCH
Transform Quick Release Pin Only
No additional tools required
Plug and unplug through 6 pins
Installation takes less than 1 minute
COMPACTNESS
Foldable aluminum alloy structural compositionCompact when folded for portability
PACKAGE AND TRANSPORTATION
Choice of professional packaging accessoriesMake transportation more convenient
PORTABLE
Transport and carry only 1-2 personsWeight only 33 kg
Lightweight Mini Aluminum Gantry Crane with 450 kg Capacity for Small Scale Operations

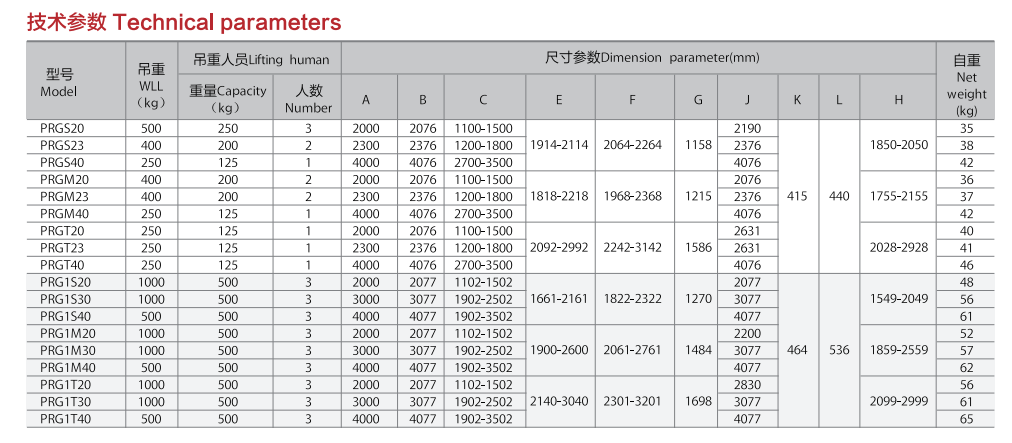

Technical parameters

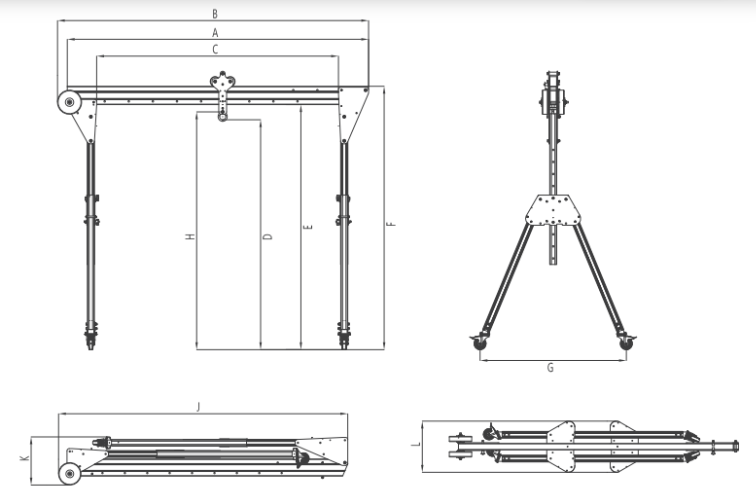

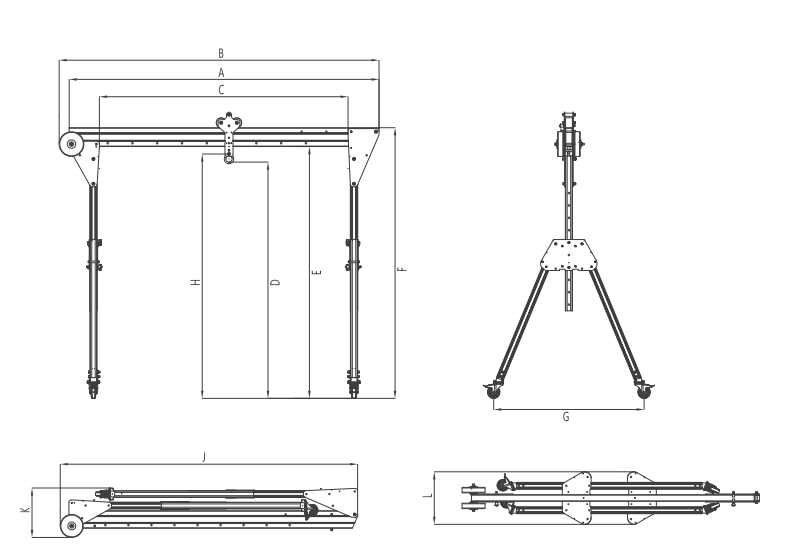

Model WLL(kg) Lifting human Dimension parameter(mm) Net weight(kg)
Capacity(kg) Number A B C E F G J K L H
PRGS20 500 250 3 2000 2076 1100-1500 1914-2114 2064-2264 1158 2190 415 440 1850-2050 35
PRGS23 400 200 2 2300 2376 1200-1800 2376 38
PRGS40 250 125 1 4000 4076 2700-3500 4076 42
PRGM20 400 200 2 2000 2076 1100-1500 1818-2218 1968-2368 1215 2076 1755-2155 36
PRGM23 400 200 2 2300 2376 1200-1800 2376 37
PRGM40 250 125 1 4000 4076 2700-3500 4076 42
PRGT20 250 125 1 2000 2076 1100-1500 2092-2992 2242-3142 1586 2631 2028-2928 40
PRGT23 250 125 1 2300 2376 1200-1800 2631 41
PRGT40 250 125 1 4000 4076 2700-3500 4076 46
PRG1S20 1000 500 3 2000 2077 1102-1502 1661-2161 1822-2322 1270 2077 464 536 1549-2049 48
PRG1S30 1000 500 3 3000 3077 1902-2502 3077 56
PRG1S40 500 500 3 4000 4077 1902-3502 4077 61
PRG1M20 1000 500 3 2000 2077 1102-1502 1900-2600 2061-2761 1484 2200 1859-2559 52
PRG1M30 1000 500 3 3000 3077 1902-2502 3077 57
PRG1M40 500 500 3 4000 4077 1902-3502 4077 62
PRG1T20 1000 500 3 2000 2077 1102-1502 2140-3040 2301-3201 1698 2830 2099-2999 56
PRG1T30 1000 500 3 3000 3077 1902-2502 3077 61
PRG1T40 500 500 3 4000 4077 1902-3502 4077 65
