Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Specifications
Filter Change Indior :
Yes
Installationtype :
Snap-in
Filter Rating :
1 - 300μm
Place of Origin :
China
Compatibility :
Universal fit for most pitchers
Condition :
NEW
Series :
10TE(N)
Filter Capacity :
10,000 Gallons
Filter Media Type :
Synthetic
Price :
80
Filter Cartridge :
Single
Payment Terms :
T/T
MOQ :
1
Pressure :
2.5 bar
Flow Rate :
2.5 GPM
Description
Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filter Cartridge Replacement for Pall/Hydac Industrial Oil Filter Cartridge Replacement for Pall/Hydac Industrial Oil Filter Cartridge Replacement for Pall/Hydac Industrial Oil Filter Cartridge Replacement for Pall/Hydac
Industrial Oil Filtration Solutions

Comprehensive hydraulic oil filter elements and purifier machines designed for optimal industrial performance.

Product Overview

This industrial oil filtration solution is engineered for hydraulic oil, lubricating oil, gear oil, and transformer oil purification. It effectively removes particulate contaminants, moisture, and oxidation byproducts to extend oil service life and protect critical hydraulic and lubrication systems.

Key Features
  • High-precision filtration: Filtration accuracy from 3μm to 20μm, achieving NAS 6 cleanliness level or better.
  • Multiple filter media options: Fiberglass, stainless steel mesh, and sintered copper available for different oil types and operating temperatures.
  • Large dirt-holding capacity: Pleated structure maximizes filtration area with low initial pressure drop.
  • Quick-change housing: Tool-free filter element replacement with integrated pressure gauge for contamination monitoring.
  • Heavy-duty construction: Corrosion-resistant and high-temperature resistant, suitable for continuous industrial operation.
Applications

Widely used in hydraulic systems, injection molding machines, CNC machine tools, power plant turbine lubrication, steel mill hydraulic stations, and transformer oil purification.

Customization & Supply
  • Filtration accuracy: 1μm-100μm customizable
  • Media: Fiberglass / Stainless steel / Copper sintered
  • OEM/ODM accepted
  • Sample testing available
  • Bulk order discounts offered

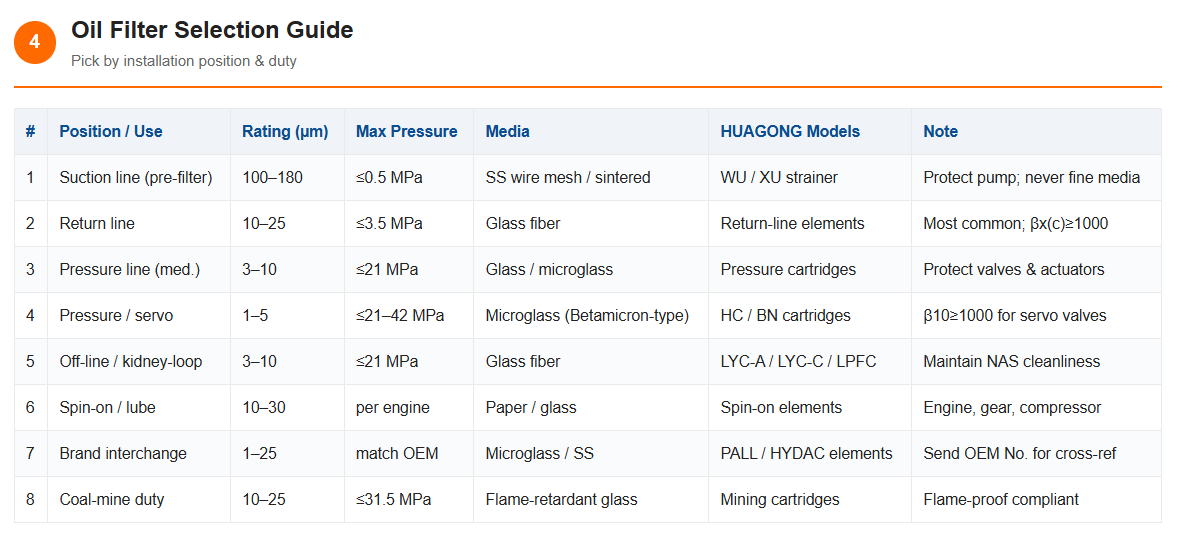

Selection Guide by Installation Position & Duty
Position / Use Recommended Rating (µm) Max. Pressure Recommended Media HUAGONG Model Family Selection Note
Suction line (coarse pre-filter) 100 - 180 ≤ 0.5 MPa (≈75 psi) Stainless steel wire mesh / sintered bronze WU / XU strainers Protect pump inlet; never use fine media on suction
Return line 10 - 25 ≤ 3.5 MPa (≈510 psi) Glass fiber (microglass) Return-line elements Most common; prefer βx(c) ≥ 1000
Pressure line (medium) 3 - 10 ≤ 21 MPa (≈3050 psi) Glass fiber / microglass Pressure-line cartridges Protect directional & control valves
Pressure / servo line 1 - 5 ≤ 21-42 MPa (collapse 210-300 bar) Microglass (Betamicron-type) HC / BN cartridges For servo & proportional valves; β10 ≥ 1000
Off-line / kidney-loop 3 - 10 ≤ 21 MPa Glass fiber LYC-A / LYC-C / LPFC purifiers Maintain oil to target NAS cleanliness
Spin-on / engine & lube 10 - 30 Per engine spec Composite paper / glass Spin-on elements Engine lube, gearbox, compressor
Brand interchange 1 - 25 Match OEM Microglass / SS mesh PALL / HYDAC / MAHLE elements Send OEM No. for cross-reference
Coal-mine duty 10 - 25 ≤ 31.5 MPa Flame-retardant glass fiber Mining cartridges Flame-proof environment compliant
Brand Interchange Reference
Original Brand Series Example HUAGONG Supply Typical Rating Seal Options
PALL HC2100 / HC2200 / HC8300 / HC9400 Direct-interchange elements 1-25 µm NBR / Viton / EPDM
HYDAC 0030 / 0060 / 0110 / 0240 / 1300 Direct-interchange elements 1-25 µm NBR / Viton
MAHLE / KNECHT PI Series Interchange elements 3-25 µm NBR / Viton
PARKER / FAIREY-ARLON Various Interchange elements 3-25 µm NBR / Viton
INTERNORMEN / MP-FILTRI Various Interchange elements 1-25 µm NBR / Viton
STAUFF / VICKERS Various Interchange elements 3-40 µm NBR / Viton
Why Choose Us

Direct factory supply, competitive pricing, and full technical support for model selection and replacement filter sourcing. Cross-reference to major brands including Pall, Hydac, and Leemin available.

Contact us for specifications, samples, and factory pricing.
