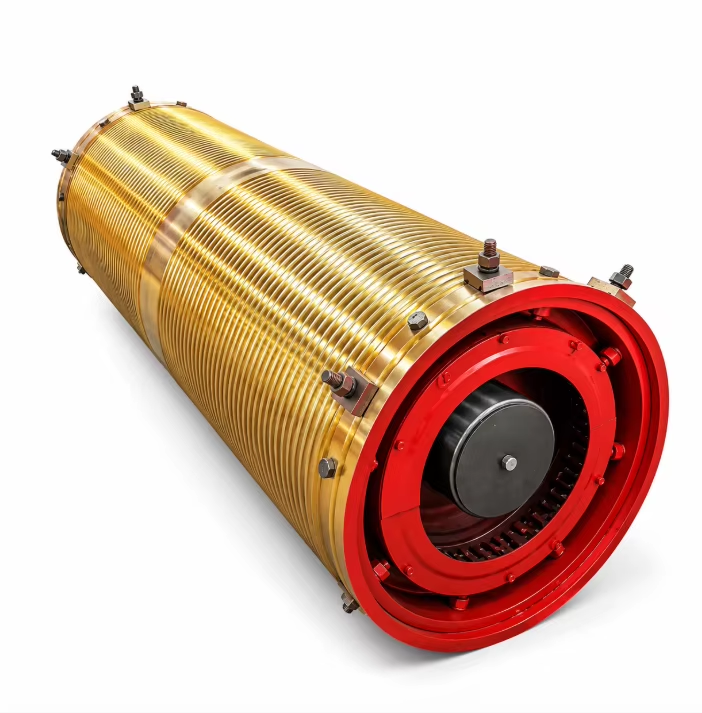

Precision Spooling Drum with Accurate Rope Positioning
Product Overview

The Precision Spooling Drum is an essential component in any crane hoisting mechanism, designed to ensure accurate rope positioning and orderly winding across multiple layers. Proper spooling is critical—irregular winding can cause rope to break through lower layers or become wedged at drum flanges, leading to severe rope damage, sudden shock loads, and potential safety hazards. Our precision-engineered drum solves these challenges by delivering consistent, reliable spooling performance that extends wire rope life and enhances operational safety in demanding industrial environments.

Key Features And Benefits
Feature Description
Precision-Machined Grooves Grooves are meticulously machined to match the specific wire rope diameter, ensuring uniform rope winding and minimizing wear on both the rope and drum
Advanced Groove Geometry Available in spiral or Lebus-type configurations—Lebus grooves use alternating straight and angled sections to eliminate rope crossover and dramatically extend wire rope life by 2–3×
Optimized Multi-Layer Spooling Engineered for smooth layer-to-layer transitions with filling inserts that support extreme coils and maintain a pyramidal rope arrangement for stability
High-Strength Material Manufactured from premium carbon steel or alloy steel (Q235B, Q345B, AISI 4140 or equivalent), delivering excellent fatigue resistance and long service life
Corrosion Protection Surface treatments including shot blasting, specialized painting, or galvanization available for harsh environments
Customizable Design Fully customizable outer diameter, drum length, groove type, and winding direction to match your specific application requirements

Applications

  • Overhead Traveling Cranes (EOT Cranes)
  • Gantry Cranes & Semi-Gantry Cranes
  • Electric Wire Rope Hoists
  • Shipbuilding & Deck Cranes
  • Mining Cranes and Hoists
  • Tower Cranes
  • Construction and Metallurgy Industries
Quality Assurance
  • Automatic welding techniques for structural integrity
  • CNC machining to maintain tight tolerances for high concentricity and balance
  • High-strength qualified steel ensuring safety factors exceeding industry standards (FEM, DIN, ISO)
  • ISO9001 and ISO14001 certified production processes

Precision Spooling Drum with Accurate Rope Positioning

Precision Spooling Drum with Accurate Rope Positioning

Precision Spooling Drum with Accurate Rope Positioning

Precision Spooling Drum with Accurate Rope Positioning

Precision Spooling Drum with Accurate Rope Positioning

Precision Spooling Drum with Accurate Rope Positioning

Get Started – Quick Quotation
To receive a tailored selection proposal and price quote, please provide us with:

  • Crane model
  • Rated hoisting capacity (tonnage)
  • Required lifting height

We respond promptly with optimized solutions to meet your project needs. Welcome to contact us for more details!
