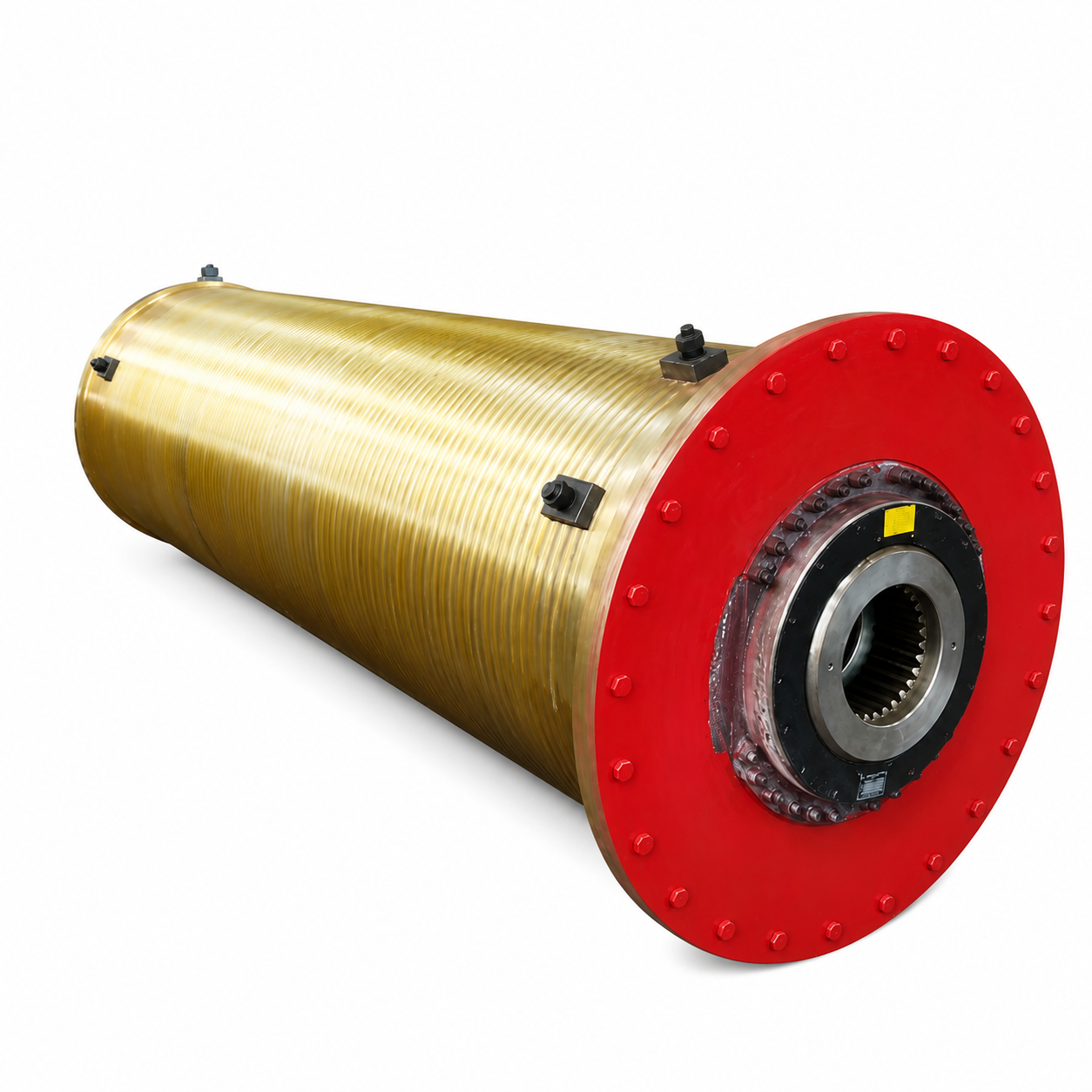

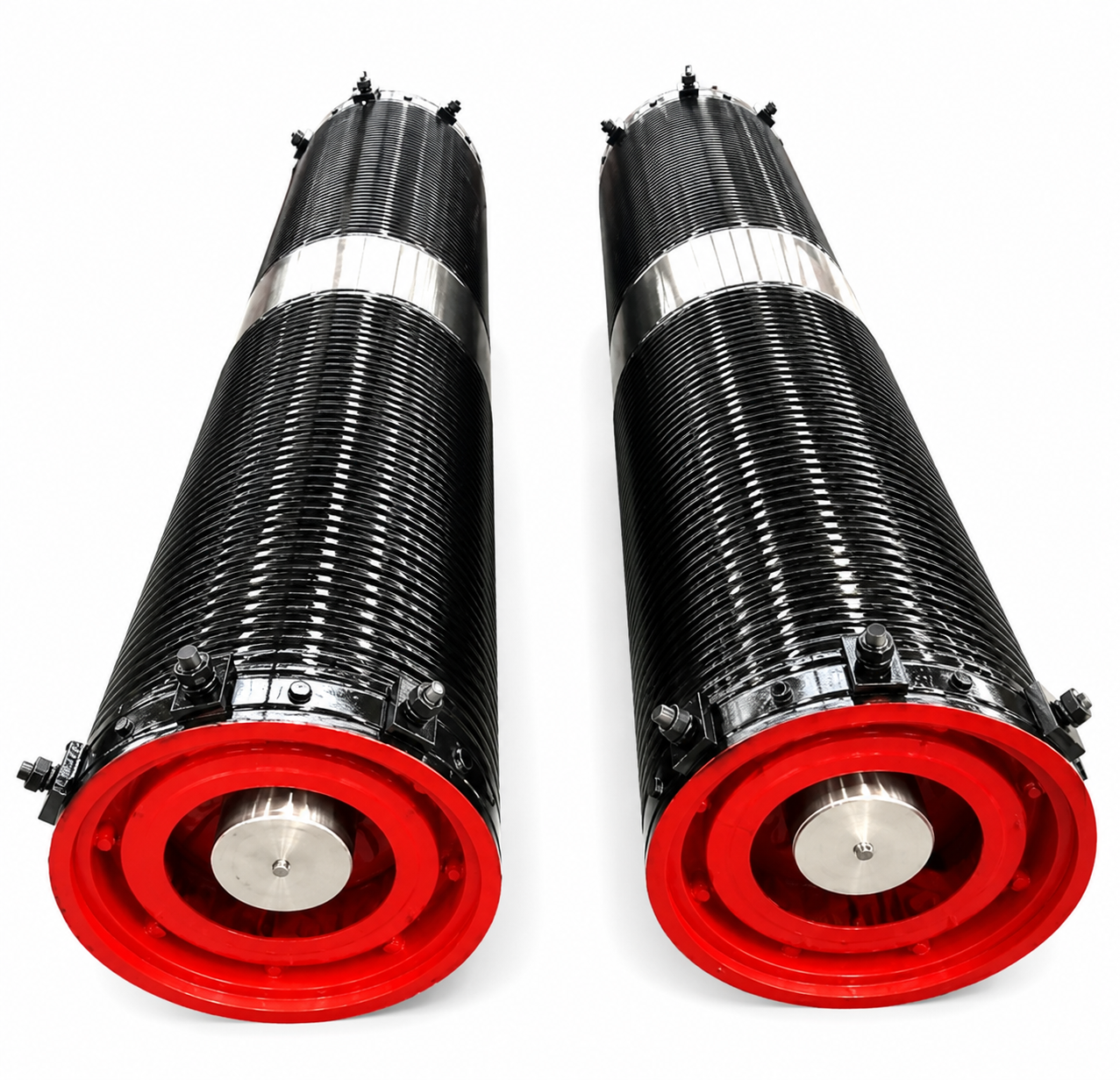

Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes
Specifications
Payment Terms :
T/T
Packaging Details :
Wooden Case
Keyword :
Crane drum, Hoist drum, Universal drum
Model Number :
ODM Hoisting Drum
Warranty :
1 Year
Place Of Origin :
China
Supply Ability :
500 set/per week
Type :
Standard drum block/ Roll drum block with roller coupling/ European style drum block
Size :
Custuestomer's Request
Price :
600
Apply to :
lifting mechanisms crane with heavy tonnage and long lifting height
MOQ :
1
Material :
Q235; Q355
Certification :
available
Color :
Custuestomer's Request
Brand Name :
HuaGong
Mountingtype :
Flange Mounted
Place of Origin :
Henan
load :
5-200T
Delivery Time :
30 Days
Description
Heavy-Duty Fabricated Steel Wire Rope Drum Assembly with Precision Grooving for 32T Overhead Cranes
Crane Wire Rope Drum Block Description

The Wire Rope Drum is a robust and reliable component designed specifically for heavy-duty applications such as cranes, hoists, and winches. Engineered with precision and durability in mind, this product serves as an essential part of the lifting and material handling industry, ensuring smooth and efficient operation under demanding conditions.

Featuring a flange mounted mounting type, the Wire Rope Drum guarantees secure attachment and optimal alignment, which is critical for maintaining the integrity and performance of the entire lifting system.

Crane Wire Rope Drum Block Technical Specifications
Heavy-Duty Fabricated Steel Wire Rope Drum with Precision Grooving for 32T Overhead Cranes

Capacity

(t)

 Reducer
Model		 C-Type Gear
(M×Z)		 Wire Rope Diameter ∅ Drum Outer
Diameter ∅		 Nominal Drum
Diameter ∅		 Length L Pitch Middle Smooth
Section		 End Center
Section		 Gear Side
Bearing Model		 Support Side
Bearing Model
3.2 ZQ400 3×56 11 ∅300 ∅308 L=1000 13 150 100 2308 1313
5 ZQ500 4×56 13.5 ∅400 ∅409 L=1500 16 150 100 1311 1313
10 ZQ500 4×56 14.5 ∅400 ∅409 L=1500 16 50 100 1311 1313
16 ZQ650 6×56 17.5 ∅500 ∅512 L=1500 20 120 85 1616 1616
20 ZQ650 6×56 17.5 ∅500 ∅512 L=1500 20 120 85 1616 1616
32 ZQ850 8×54 21.5 ∅650 ∅664 L=2000 24 150 100 22222 22222
50 ZQ1000 10×48 24 ∅800 ∅664 L=2000 28 350 100 22222 22222
5t Grab ZQ500 4×56 15.5 ∅400 ∅418 L=1500 22 250 100 1311 1313
10t Grab ZQ650 6×56 20.5 ∅500 ∅524 L=1500 26 300 100 1616 1616
16t Grab ZQ850 8×54 24 ∅700 ∅728 L=1860 32 400 100 22222 22222
20t Grab ZQ1000 10×48 28 ∅800 ∅832 L=1800 36 400 100 22222 22222
Applications of Crane Wire Rope Drum Block

The drum is primarily used in the hoisting mechanism of crane trolleys to wind the wire rope. One end of the drum is connected to a gear reducer, and the other end is connected to a bearing housing.

  • Crane accessories for reeling wire rope as a winch or electric hoist
  • Drum units are constituted by drum, shaft, gearwheel, hub, bearing body and bearing
  • Material options include HT20-40 cast iron, ZG25, ZG35 or Q235B, Q345B welding steel plate for special needs
  • Applies to large tonnage crane machinery requiring high-performance components
Crane Wire Rope Drum Block Support & Services

Our Wire Rope Drum product comes with comprehensive technical support and services to ensure optimal performance and longevity.

  • Detailed installation guidelines and maintenance instructions
  • Troubleshooting assistance and technical support
  • Product selection and customization consultation
  • On-site inspections and preventive maintenance services
  • Genuine replacement parts and accessories
  • Training sessions and comprehensive user manuals
