Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
Specifications
Place of Origin :
henan china
Material Option :
Q235B / Q345B / 45# Forged Steel / Cast Steel
Payment Terms :
T/T
Working Class :
M3-M8 (FEM / GB/T24816 Standard)
Packaging Details :
wooden box
color :
blank
Delivery Time :
25 work days
Application :
Double Girder Overhead Crane, Bridge Crane Hoist System
MOQ :
1
Product Name :
Wire Rope Drum for Overhead Bridge Crane
Brand Name :
HG CRANE
Supply Ability :
700 Set / per week
Price :
600-800 USD
Applicable Lifting Capacity :
5Ton ~ 200Ton Overhead Crane
Description

Product Description

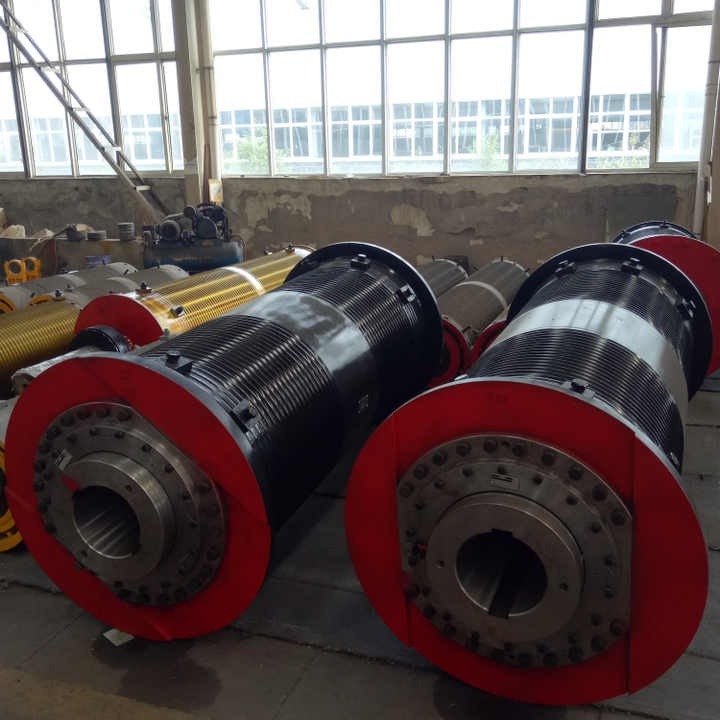

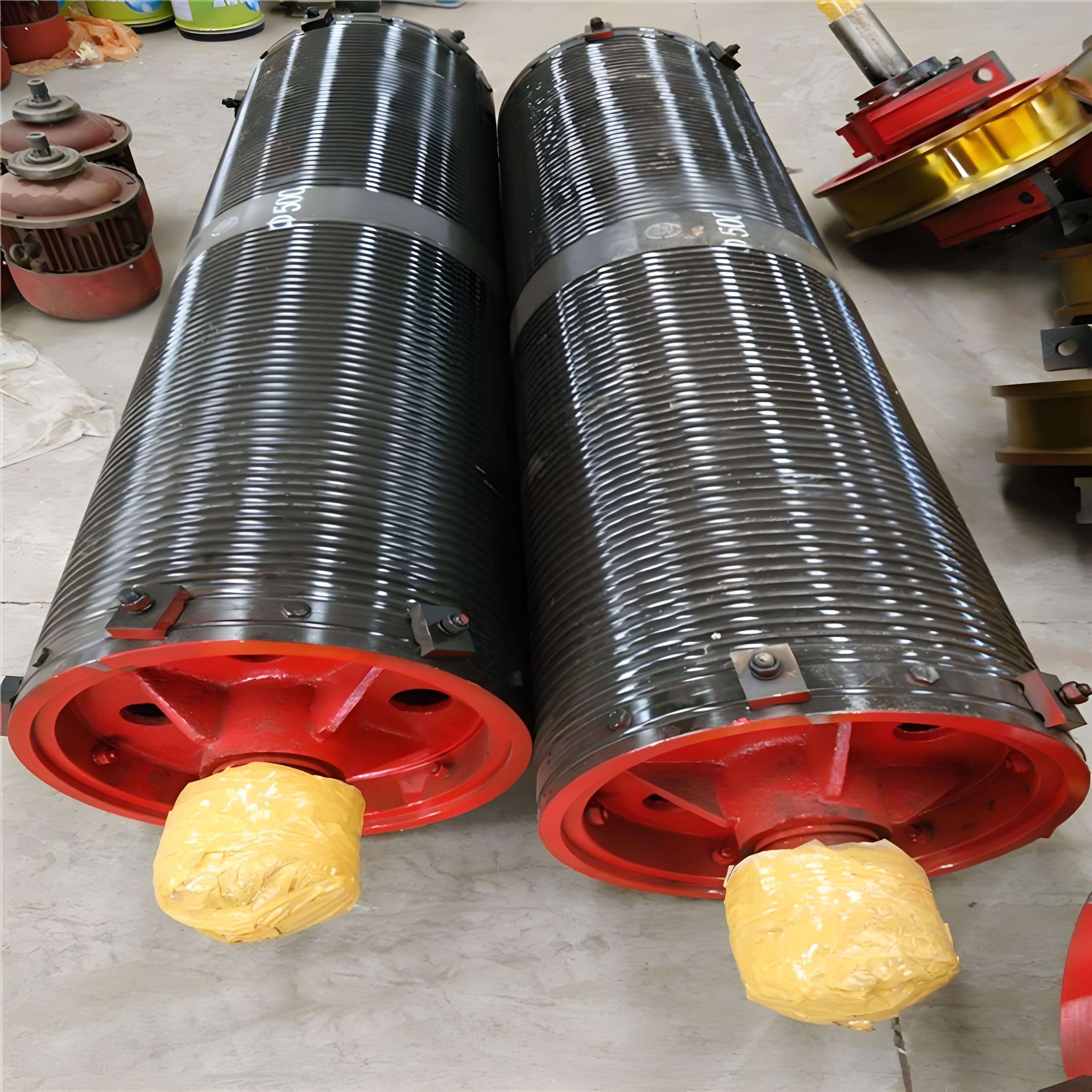

Heavy-Duty Wire Rope Drum for Overhead Bridge Crane Hoisting Mechanism

The wire rope drum is the core load-bearing component of overhead bridge crane hoisting system, used to wind, store and guide steel wire rope during lifting operation. Our crane drums are widely matched with single/double girder overhead cranes for workshop, metallurgy, logistics, machinery manufacturing and heavy engineering projects.

Core Advantages

  1. High Strength Raw Material

    Optional Q235B, Q345B, 45# forged steel and cast steel. Reasonable wall thickness design, anti-deformation under heavy load, suitable for continuous heavy-duty working conditions.
  2. CNC Precision Machined Rope Grooves

    Accurate spiral rope groove processing, effectively prevent wire rope jumping, stacking and abrasion, greatly extend wire rope service life. Manufactured comply with GB/T24816 & DIN15021 standard.
  3. Customizable Structure

    Support customized diameter, length, shaft hole, spline, flange size according to customer drawings. Welded type and integral forging type optional.
  4. Strict Quality Inspection

    Raw material inspection → rough machining → finish machining → groove processing → nondestructive testing → painting; Each product can provide test report on request.
  5. Anti-corrosion Surface Treatment

    Shot blasting + anti-rust primer + finish paint; Hot-dip galvanizing available for humid and corrosive environment.

Main Technical Specification

  • Material: Q235B, Q345B, 45# Forged Steel, Cast Steel
  • Drum Outer Diameter: φ250mm ~ φ1200mm
  • Effective Length: 500mm ~ 6000mm
  • Matching Crane Load: 5T,10T,16T,20T,32T,50T,80T,100T,160T,200T
  • Working Grade: M3, M4, M5, M6, M7, M8
  • Processing: OEM, ODM, Customized by Drawings
  • Paint: Industrial Anti-rust Coating

Application Scope

Double girder overhead crane, QD/LH bridge crane, trolley hoisting mechanism, gantry crane, electric winch, port lifting equipment.

Our Service

  1. Support drawing customization, accept non-standard size
  2. Professional engineering team provide technical parameter consultation
  3. Short lead time for standard models
  4. Third-party inspection support before shipment
  5. Complete spare parts matching service for crane whole set
    Rated Capacity Recommended Drum OD Matching Wire Rope Suggested Material Working Class Suggestion

    5T φ300~350mm φ11~13mm Q235B Welded M3-M5

    10T φ400~500mm φ14~16mm Q235B / Q345B M4-M6

    16T/20T φ500~650mm φ18~22mm Q345B Welded M5-M6

    32T φ650~800mm φ22~26mm Q345B M5-M7

    50T~80T φ700~900mm φ28~36mm Q345B / Forged Steel M6-M7

    100T~200T φ800~1200mm φ36~50mm 45# Forged / Cast Steel M6-M8


    Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
    Heavy Duty Forged Steel Wire Rope Drum Overhead Bridge Crane Hoisting Drum Custom Q345B Welded Rope Drum For Double Girder Overhead Crane
    Q1: Can you produce according to my drawings?

    A: Yes, we accept OEM & customized production based on your technical drawings.

    Q2: What information do I need to offer for quotation?

    A: Drum diameter, effective length, wire rope diameter, material requirement, inner shaft hole/spline size, working load.

    Q3: What is your delivery time?

    A: Standard models: 7~15 working days; Custom non-standard products:15~30 working days.

    Q4: What kind of packing?

    A: Packed by plastic wrap + wooden case or wooden pallet for sea transportation.
