30L Volume High Pressure Stirring Reactor Gas Liquid Gas Solid Reaction HY-GF12030
30L Volume High Pressure Stirring Reactor Gas Liquid Gas Solid Reaction HY-GF12030
30L Volume High Pressure Stirring Reactor Gas Liquid Gas Solid Reaction HY-GF12030
30L Volume High Pressure Stirring Reactor Gas Liquid Gas Solid Reaction HY-GF12030
Specifications
Brand Name :
Huaemw
Model Number :
HY-GF12030
Place of Origin :
China
Delivery Time :
1~12weeks
name :
High Pressure Heating Reactor
Heating Source :
Microwave & Electric
Heating Volume :
29.8L
Microwave Leakage Prevention :
<2mW/cm2
Working Pressure :
3MPa
warranty :
1 year
Description

30L Volume High Pressure Stirring Reactor Gas Liquid Gas Solid Reaction HY-GF12030

  • Product Features

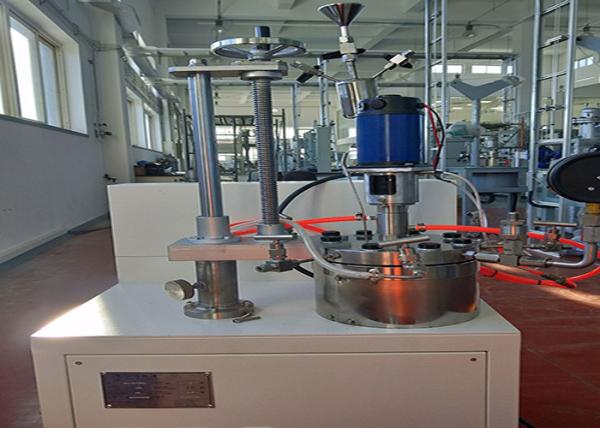

The Microwave & Electric Mixed Heating Reactor HY-GF12030 is high pressure heating reactor with complex heating elements, ie. microwave vs electric.

HY-GF12030 is with 30L volume which can be applied to mass production.

HY-GF12030 is able for pressure up to 3 MPa and temperature up to 200°C.

HY-GF12030 uses PTFE lining to guarantees an over-average resistance against highly-corrosive sample materails.

  • Applications

HY-GF12030 is stirred high pressure reacor for chemical processes like hydrogenation, oxidation, polymerization and sulphonation etc.

  • Technical Parameters
Parameters HY-GF12030
Power Voltage 380±10V, 50Hz
Rated Power 30KW
Electrical Heating Power 10KW
Microwave System Microwave Output Power 0.10~10.40KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal Insulation System Temperature ≤200°C
Heating Space(Volume) 29.8L
Atmosphere System Working Pressure 3MPa
ControlSystem Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen

40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Safety System Magnetron Alarm over temperature alarm,
over-current alarm
Furnace Door Protection furnace door shutdown sensor
Stirring System Stirring Speed 0~750 r/min
Stirring Power 250W
Overall Dimension Floor Area 2m2
