DL 1P2S Industrial Water Filtration System Purification DN40
DL 1P2S Industrial Water Filtration System Purification DN40
DL 1P2S Industrial Water Filtration System Purification DN40
DL 1P2S Industrial Water Filtration System Purification DN40
Specifications
Brand Name :
HUADING
Model Number :
DL
Place of Origin :
CHINA
MOQ :
1 Set
Price :
USD500-USD200,000 per set
Payment Terms :
L/C, T/T
Delivery Time :
30 working days
Packaging Details :
fumigation wooden case
Machine type :
Vertical
Application :
Solid liquid
Operation :
Manual
Color :
Green, blue, silver
Description

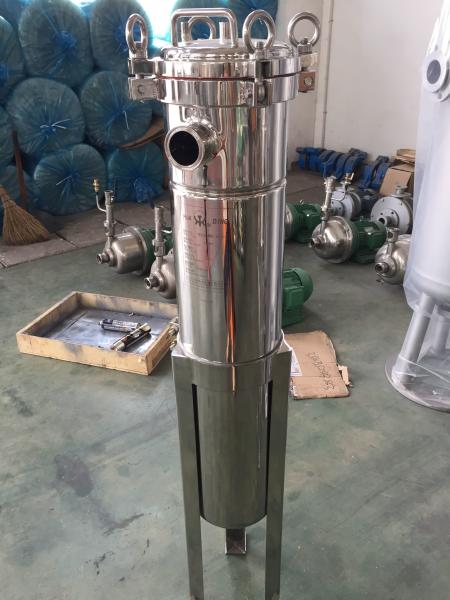

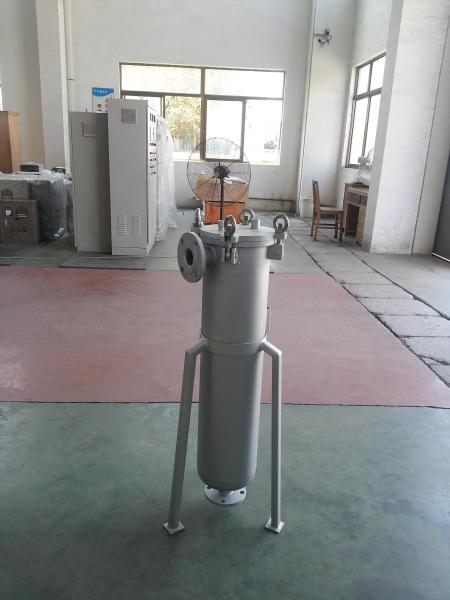

DL series stainless steel vertical bag filter for industrial production

DL series filter is widely used in bleaching and deodorization of edible oil refining from 50T/D to 100T/D. It is a new kind of safety filtration. The purpose is to reducing impurity content to zero. For deodorization stage, this filter will remove grain (eg. antioxidant), reducing impurity content to below 0.05%.

This filter is also can be used in edible intermittent refining.

The device has small size, simple operation, low cost, easy to promote, etc.

Structure and working principle

The filter consists of cylindrical shell, seal cap, screening drum , filtration bag. The edilbe oil feeded into the cylindrical shell via inlet port A, coming out from outlet port B. The residue shall be discharge at regular intervals. The material includes carbon steel and stainless steel.

DL 1P2S Industrial Water Filtration System Purification DN40

Model Filtration area ㎡ Inlet/outlet caliber mm Max flowrate ㎥/h Max work pressure Mpa Max temperature ℃ Nominal filtration precision μm
DL-1P1S 0.25 DN40 10 0.4 120 The working temperature is related to the material of filter bag . 1,5,10,15,25,40,50,65,75,80,100……1200
DL-1P2S 0.5 DN40 20
DL-4P2S 2 DN80 80
DL-8P2S 4 DN125 160
DL32P2S 16 DN200 640
