Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HUADING
MOQ :
1
Price :
$24,000-25,000
Voltage :
110 - 415V
Power :
4 - 90 Kw
Dimension :
2000*1200*1800mm
Drive :
gear / belt
Bowl speed :
4000 - 10000 rpm
Centrifugal force :
> 10,000 g
Bowl volume :
8 - 300 L
Bowl weight :
50-15000 Kg
Solids holding space :
2 - 50 L
Inlet pressure :
0-0.1 Mpa
Liquid outlet pressure :
0.2-0.6 Mpa
Starting time :
5 - 30 mins
Stopping time :
> 40 mins
Weight :
1200 Kg
Core components :
bowl
Description
Customized Crude Oil Drilling Equipment for Factory Use
As China's leading manufacturer of disc separators since 1954, Huading Separator provides customized crude oil drilling equipment engineered for industrial applications.
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Technical Specifications
Specification Details
Drive Gear / Belt
Bowl Speed 4000 - 10000 rpm
Centrifugal Force > 10,000 g
Bowl Volume 8 - 300 L
Bowl Weight 50-15000 Kg
Solids Holding Space 2 - 50 L
Inlet Pressure 0-0.1 Mpa
Liquid Outlet Pressure 0.2-0.6 Mpa
Starting Time 5 - 30 mins
Stopping Time (no brakes) > 40 mins
With over 60 years of tradition, Huading Separator is China's leading manufacturer in mechanical separating technology. Our centrifuges serve diverse industries including beverage, dairy, oil and fat processing, chemicals, , biotechnology, starch technology, marine engineering, energy, oil fields, and environmental technology. We develop and build customized centrifuges and complete process lines tailored to customer requirements.
Compliance Standards
  • JB/T 8103 standards - Chinese national standard of disc centrifuge
  • 2006/42/EC (Machinery)
  • 2014/35/EU (Low Voltage)
  • 2014/30/EU (Electromagnetic Compatibility)
  • Quality management system of ISO9001-2000
Centrifugal Separation Technology
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Disc stack separators utilize extremely high centrifugal forces to separate solids and one or two liquid phases in a single continuous process. Denser solids are forced outward against the rotating bowl wall while less dense liquid phases form concentric inner layers. The interface position between liquid phases can be adjusted for maximum efficiency. Special disc stacks provide additional surface settling area, dramatically accelerating separation. This configuration enables continuous separation of various solids from liquids, with solids removal available continuously, intermittently, or manually depending on application requirements.
2-Phase Separation Disc Stack Centrifuge
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force

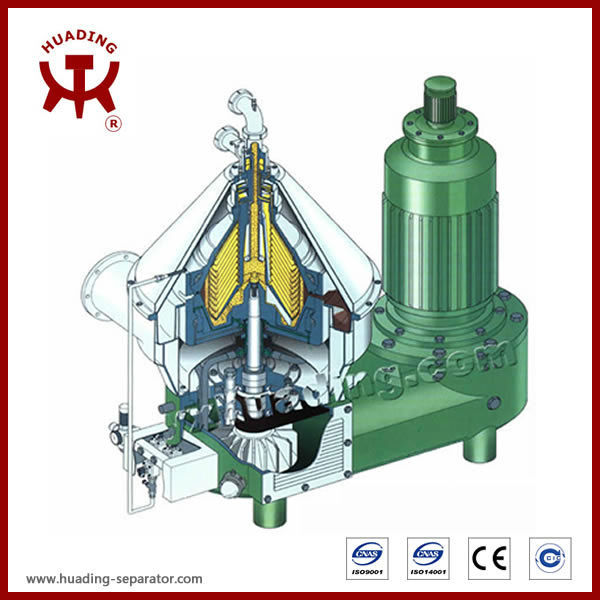

Separation occurs inside a rotating bowl where feed is introduced via a stationary inlet pipe and accelerated in the distributor before entering the disc stack. Liquid-solids separation takes place between discs, with liquid moving to the center and pumped out via a paring disc. Solids collect in the periphery and discharge intermittently through a hydraulic system that opens solids ports at preset intervals.
3-Phase Separation Disc Stack Centrifuge
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Suspension enters the separator bowl through a feeding pipe into the disc stack. Heavy phase and sludge move toward the bowl periphery while light phase flows toward the center for pumping. Heavy phase is led over a top disc into a chamber where a paring device pumps it out. Solids collect in the sludge space and discharge intermittently via hydraulic system, exiting through a cyclone.
Self-cleaning disc stack centrifuges are available as purifiers (solids and two liquid phases) or clarifiers (solids and one liquid phase).
Why Choose Huading Separator
Our Advantages
60+ Years Experience
Developing and manufacturing disc stack centrifuges for over six decades
40000+ Installations
Centrifuges installed in more than 50 countries since 1954
100+ Centrifuge Models
Comprehensive range to satisfy diverse industry requirements
Global References
Trusted by leading food and pharmaceutical manufacturers worldwide
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Certifications
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
All products meet rigorous inspection standards including CE and ISO certifications with 100% quality assurance.
Manufacturing Process
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
Packaging & Shipping
Package
Standard export carton packing
Delivery Time
30-90 days after order confirmation. Exact delivery date determined by production season and order quantity.
Customized Crude Oil Drilling Disc Oil Separator with 4000 - 10000 rpm and > 10,000 g Centrifugal Force
