Specifications
Brand Name :
Huabond
Model Number :
H-A507
Certification :
SGS, ASTM, CE & ISO
Place of Origin :
Changsha, China
MOQ :
600 sqm
Payment Terms :
T/T, L/C
Delivery Time :
18-22 days
Packaging Details :
wooden package
Description

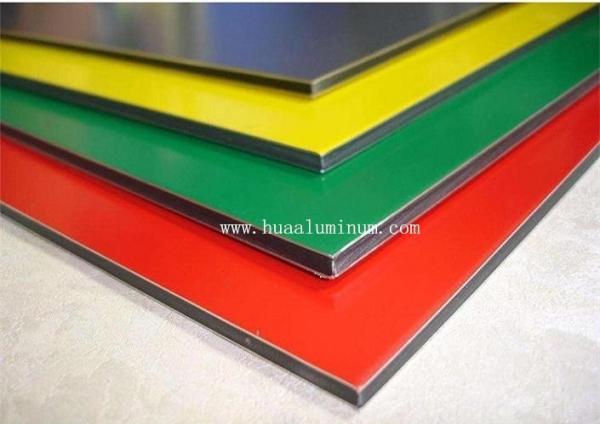

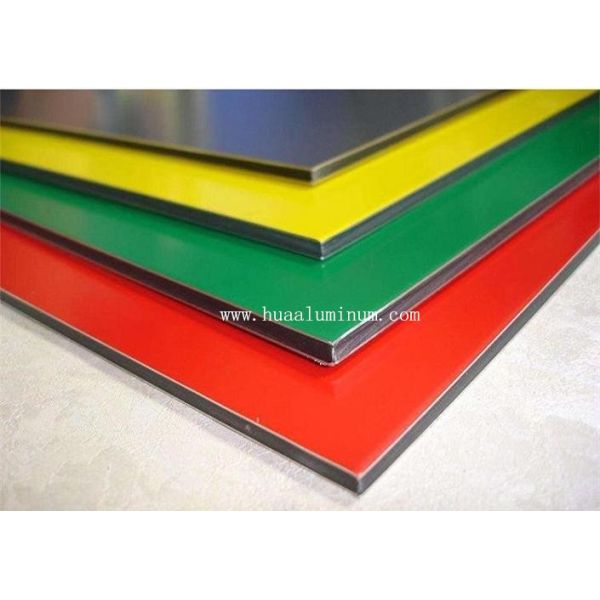

Flat Aluminium Composite Panel

Overview

Place of Origin: Hunan, China

Model Number: H-A507

Usage: Outdoor

Function: Anti-Static

Surface Treatment: Brushed

Color: Customer's Requirements

Application: Curtain Wall

Thickness: 3mm/4mm/5mm

Length: Max 11.50m

Width: Customized

Coating: PE/PVDF/FEVE

Packing: In bulk/ wooden case

Certificate: ISO, SGS, CE

Free Sample: Yes

Supply Ability: 600000 Square Inch/Square Inches per Month 600000 Piece/pieces per month

Packaging Details: wooden case or full container

Port: Shanghai port

Impact Resistant ACP Building Material 11.50m Flat Aluminium Sheet

Description Test standard Polyester
Thickness of coating Polyester paint>=16um 16um to 18um
Coating flexibility (T-bend) Polyester paint≥3T 3T
Color different ΔE<=2.0(follow color sample) ΔE<=2.0
Pencil hardness >=HB >=2H
Chemical resistance 2%HCI or 2% NaOH test in 24 hours -No change No change
Coating adhesion >=1grade for 10*10mm2 gridding test 1grade
Resist solvent 100times with dimethy benzene without change No change
Boiling water resistance 2 hours without change No change
Peeling strength/stripping strength Average >=5N/mm of 180oc peel off for panel with 0.21mm aluminum skin 5N/mm
Impact test for paint 20KG.cm impact-paint no split for panel No split
Abrasion resistance (L/Mil) NIL NIL
Temperature resistance -40ºC to +80ºC temperature without change of color difference and paint peel off, peeling strength average dropprate <=10% Change of glossy only, no paint
Peel off
Coefficient of linear Thermal Expansion 100ºC temperature difference 2.4mm/m
Detergent resistance (3%) ASTM D2248 No change
Humidity Resistance (3000hrs,100%RH,100°F) ASTM D2247 No change
Salt spray resistance (3000hrs,5% salt) ASTM B117 No change
Resistance to Staining 600h radiate in 800W/M2 in humidity condition, glossiness deviation less grade 2,color difference <=4.0 No change

Impact Resistant ACP Building Material 11.50m Flat Aluminium Sheet

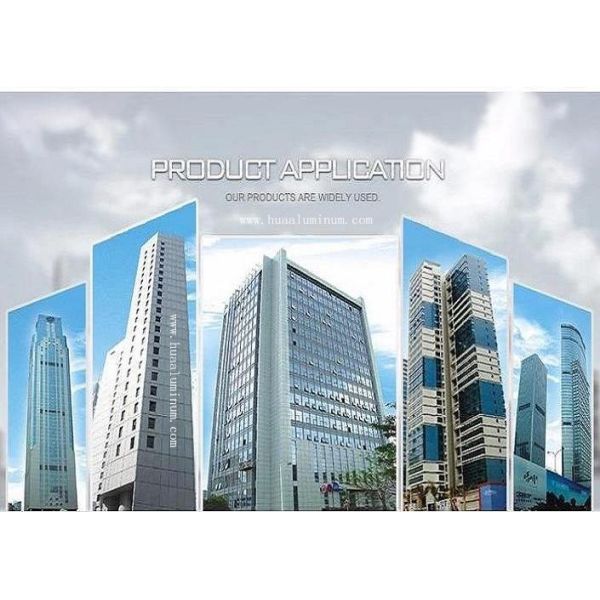

Product application:

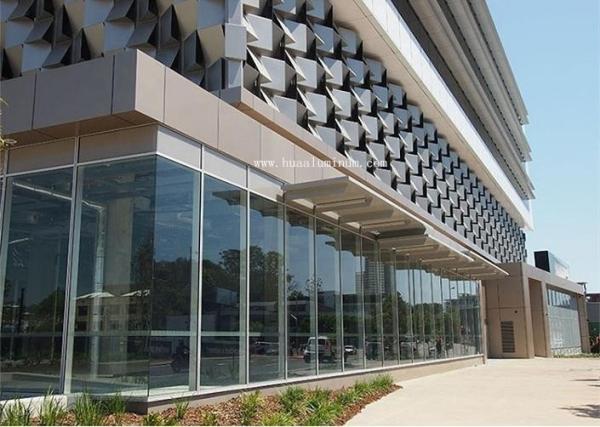

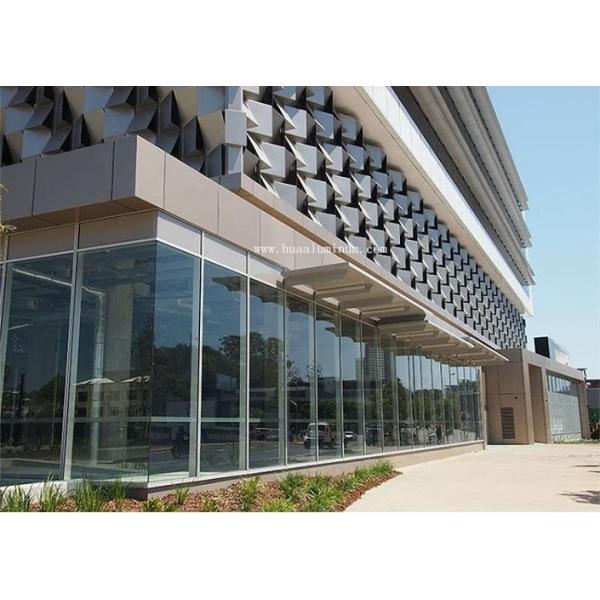

A. Building exterior curtain walls
B. Decoration and renovation additions for old buildings
C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
D. Shop door decorations
E. Advertisement board display platforms and signboards
F. Wallboard and ceilings for tunnels

Impact Resistant ACP Building Material 11.50m Flat Aluminium Sheet

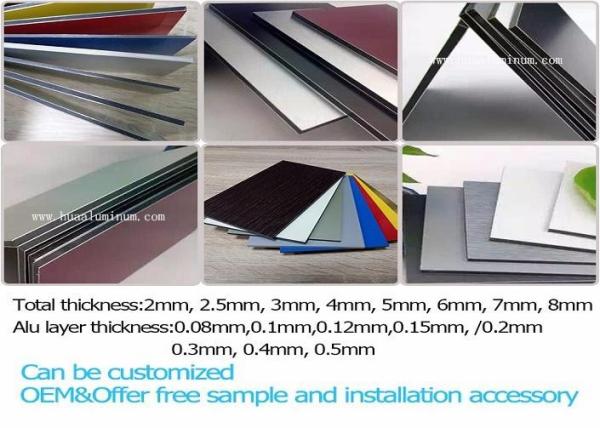

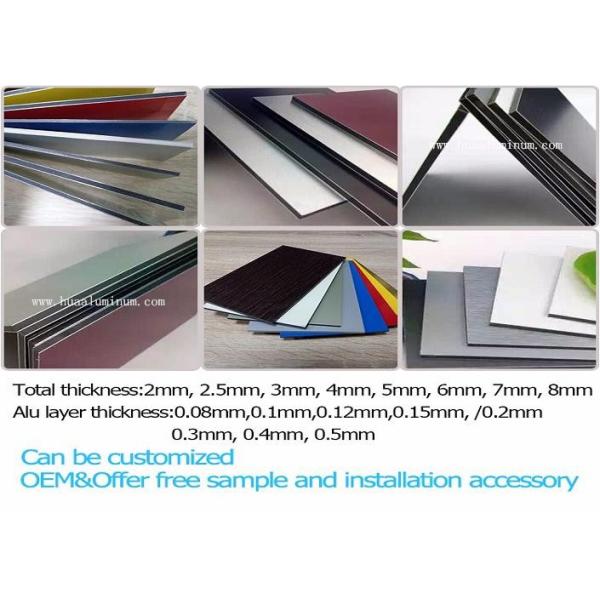

The total thickness 2mm/3mm/4mm/5mm/6mm/7mm/8mm
The Aluminum layer thickness 0.08mm/0.1mm/0.12mm/0.15mm/0.2mm/0.3mm/0.4mm/0.5mm/customized
The thickness of protective film 0.07mm/0.09mm
Width 1000mm/1220mm/1250mm/1500mm/1550mm/1570mm/2000mm
Length 2440mm/3200mm/40000mm/5000mm/6000mm/customized
Unit weight 4-6kg/sqm
Coating PE or PVDF coating
MOQ 200PCS.Offer free sample
Size/Color Customized
Packaging wooden case or full container

Impact Resistant ACP Building Material 11.50m Flat Aluminium Sheet

Impact Resistant ACP Building Material 11.50m Flat Aluminium Sheet

>>FAQ


Q1. What is your MOQ, Delivery Time, Warranty, Payment, Production capacity?
A1:1. MOQ (Minimum Order Quantity): 600 m2 PE coating common colors; 1000 m2 PVDF coating and special colors.
2. Delivery Time: within 10 to 15 days after contract confirmed and deposit payment received.
3. Warranty: PVDF KY coating – 15 years for outside use; Polyester (PE) coating –5 years for outside use, 10 years for inside use.
4. Payment: 30% TT in advance, 70% see copy of BL.
5. Production Capacity: 37,507 m2 per day basic on 1220 * 2440mm 3mm thickness.


Q2. Where have your HUABOND aluminum composite panel been export?
A3: Our factory established in 1994; have already exported to USA, Canada, Mexico, Brazil, Chile, Panama, Europe Market, Australia, New Zealand, the Mid-east Countries, Southeast Asia and Africa.


Q3. What's the available panel size and thickness?
A5: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm 2000mm are recommended.
2. Length: accept customized length, recommend 2440mm, 3050mm, 4050mm, 5000mm.
3. Panel Thickness: 2mm-16mm; recommend 3,4mm.
4. Aluminum thickness:0.10-0.5mm, such as 0.21mm, 0.30mm, 0.40mm, 0.50mm.

Q4. What is the minimum order quantity?
600 square meters for aluminum composite panel.

Q5. How can you guarantee the quality?
We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC .

Q6. Can I buy installation accessories from you?
Yes, we provide all installation accessories. please contact with our professional sales team.
