Sprial Pointed Thread HRC64 M2 HSS Machine Taps
Sprial Pointed Thread HRC64 M2 HSS Machine Taps
Sprial Pointed Thread HRC64 M2 HSS Machine Taps
Sprial Pointed Thread HRC64 M2 HSS Machine Taps
Specifications
Brand Name :
STARRY
Model Number :
M10
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
200pcs
Payment Terms :
L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
30-45days
Packaging Details :
inner plastic box, wrapped by air bubble film, outside carton box
Name :
hss spiral point taps
Material :
HSS M2
Standard :
JIS,DIN,ANSI,ISO,GB
Size :
UNC UNF BSW BSF,M2-M68
Color :
Tin
Hardness :
HRC 60-67
Tolerance :
6H
Flute type :
Spiral Point
Process :
Fully Ground
Application :
Stainless Steel,Copper,Thread Tapping
Description

HSS thread sprial pointed machine tap with tin coated machine taps

Description

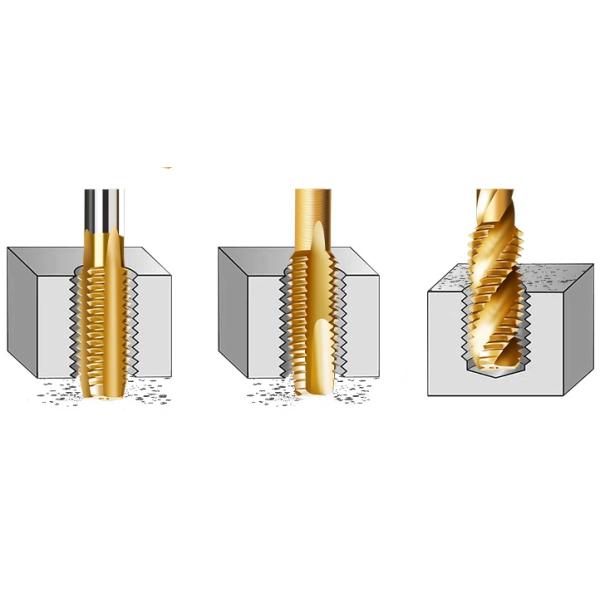

High speed steel taps are frequently called “gun taps” because they shoot the chips cut by the angular cutting edge forward.

This style is the most efficient and cost effective when tapping a through hole. The two and three flute styles of spiral point tap

allow effective chip evacuation and produce clean threads under normal production conditions.

Item Name: HSS thread sprial pointed machine tap
Standard: DIN/ANSI/JIS
Raw Material: HSS (high speed steel) M2/ M35
Flute: Spiral Pointed
Thread/Pitch Coarse/ Fine
Size: M10
Hole type: Spiral Pointed tap for through hole
Working machine Lathe, Radial Drilling machine, Bench Drill Machine, Pillar Drill machine, Vertical Milling machine

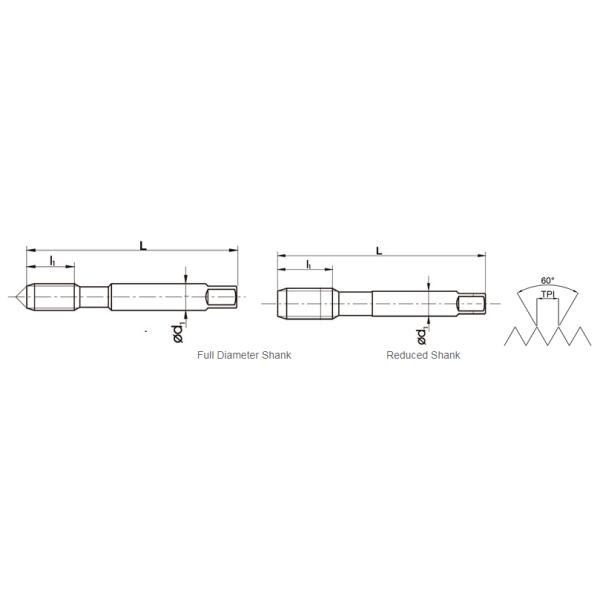

Specification of High speed steel taps :

d1 p L1 L2 d2 k
mm (pitch) mm mm mm (h12)
mm
M10 0,75 90 20 7,0 5,5
M10 1 90 20 7,0 5,5
M10 1,25 90 20 7,0 5,5

Working Material:

HSS M2 works on Steel, Alloy steel, Carbon steel, Cast iron, Cooper, Aluminum, etc.

Hss spiral point taps pic :

.

Sprial Pointed Thread HRC64 M2 HSS Machine Taps

Sprial Pointed Thread HRC64 M2 HSS Machine Taps
