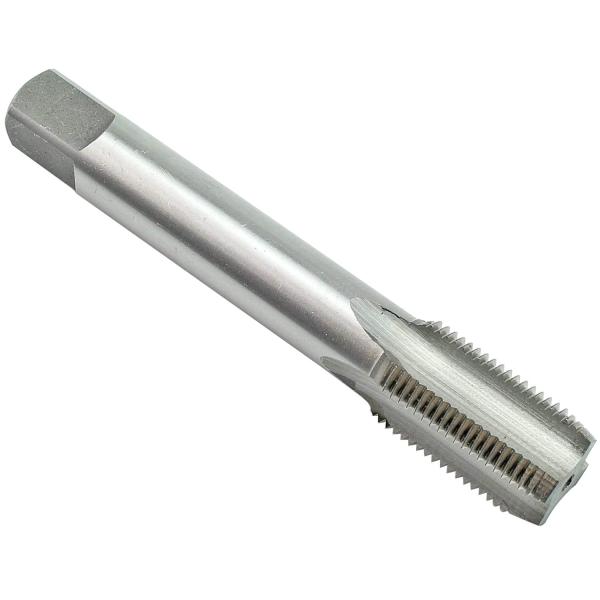

HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute
HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute
HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute
HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute
HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute
HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute
Specifications
Brand Name :
RTCRAFT OR OEM
Model Number :
M3,M4,M5,ETC
Certification :
ISO,MPA,TUV
Place of Origin :
China
MOQ :
300Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500000pieces each month
Delivery Time :
35 days after your deposite
Packaging Details :
Plastic box,metal box for set
Product Name: :
Taps and Dies
Type: :
HSS machine taps
Material: :
High Speed steel
Size: :
M3-M50
Surface: :
Bright,Ti-coated
Flute: :
Straight Flute
Description

DIN352 Metric Size HSS Machine Taps with Bright Finished Screw Taps

Description of HSS Machine Taps:

1. Material:HSS 4241,4341,M2,M35

2. Size:M3-M50

3. Processing:Fully Ground

4. Flute:Straight Flute

5. Surface:Bright Finished,Ti-coated

6. Hole type:Blind hole

7. Pitch:Coarse and Fine

Feature of HSS Machine Taps:

  • Used to make new threads or re-thread damaged and/or jammed threads
  • High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
  • High speed steel hand taps are the most versatile taps for hand use, or for tapping under power
  • Hand taps are popular for use in general machine tapping or CNC tapping
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications

Application:

For hand tapping of through or blind holes in ferrous and non-ferrous Alloys.

Size:

HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute

SIZE OVERALL LENGTH THREAD LENGTH
M2*0.4 36 8.0
M2.2*0.45 36 9.0
M2.5*0.45 40 9.0
M3*0.5 40 11.0
M3.5*0.6 45 13.0
M4*0.7 45 13.0
M5*0.8 50 16.0
M5.5*0.9 50 19.0
M6*1 50 19.0
M7*1 50 19.0
M8*1.25 56 22.0
M9*1.25 63 22.0
M10*1.5 70 24.0
M11*1.5 70 24.0
M12*1.75 75 29.0
M14*2 80 30.0
M16*2 80 32.0
M18*2.5 95 40.0
M20*2.5 95 40.0
M22*2.5 100 40.0
M24*3 110 50.0
M27*3 110 50.0
M30*3.5 125 56.0
M33*3.5 125 56.0
M36*4 150 63.0
M39*4 150 63.0
M42*4.5 150 63.0
M45*4.5 160 70.0
M48*4 180 75.0
M52*5 180 75.0
M56*5.5 200 85.0
M60*5.5 200 85.0
M64*6 220 90.0
M68*6 220 90.0

Package and Delivery:

1. Package:Plastic box

2. Delivery:35 Days after your deposite

3. Shipping:By sea,By air,if small order,we can provide the Express.

HSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight FluteHSS Machine Taps DIN352 M3-M50 Bright Ti-coated Straight Flute

Payment and Sample Policy:

1. Payment:30%T/T in advance,the balance before shipment or against the B/L

2. Other payment could be acceptable.

3. Sample poliy:We can provide samples for free for testing.

4. Samples time:About 7-10days.
