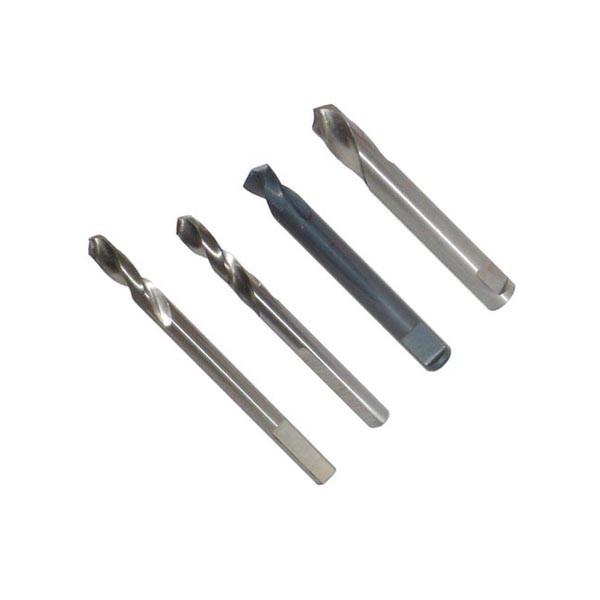

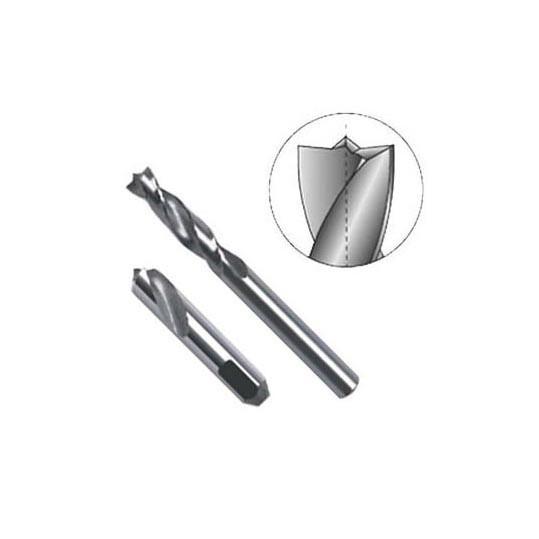

ANSI HSS Twist Drill Bits for Metal Stainless Steel
ANSI HSS Twist Drill Bits for Metal Stainless Steel
ANSI HSS Twist Drill Bits for Metal Stainless Steel
ANSI HSS Twist Drill Bits for Metal Stainless Steel
Specifications
Brand Name :
RTCRAFT or OEM
Model Number :
Inch size
Certification :
ISO,MPA,TUV
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000000pcs/month
Delivery Time :
about 20 days
Packaging Details :
pvc bag,blister card,plastic tube,plastic box
Product Name: :
HSS Drill Bits
Material: :
High Speed Steel
Type: :
Twist Drill Bit short type
Package: :
PVC Bag or others available
Processing: :
Milled,Fully Ground
Flute: :
Type N
Description

ANSI Screw Machine HSS Twist Drill Bits for Metal with Coffee Color

Description of Screw Machine HSS Drill Bits:
1. Material:HSS 4241,4341,M35,M42;
2. Process:Rolled,Polished,Fully ground
3. Surface:Ti-coated,Black Oxide,Bright finished,Amber finished,Black&Bright
4. Point:118°/135°split point
5. Shank:Straight Shank

6. Drill Bits set are available.

7. Drilling holes on Iron,Metal,stainless steel sheet.

ANSI Standard HSS Drill Bits Specification:
1. Material and Hardness of High Speed Steel:

DESCRIPTION OF HSS C W Mo Cr V Co Si Mn P S
　 % % % % % % % % % %
W2MoCr4V(F4341) 0.95-1.05 1.7-2.4 0.8-1.2 3.8-4.4 0.8-1.2 　 1.0-1.4 0.2-0.4 <=0.03 <=0.03
W4Mo3Cr4V(4341) 0.88-0.98 3.5-4.5 2.5-3.5 3.8-4.4 1.2-1.8 　 0.5-1.2 0.2-0.4 <=0.03 <=0.03
W9Mo3Cr4V(9341) 0.77-0.87 8.5-9.5 2.7-3.3 3.8-4.4 1.3-1.7 - 0.2-0.4 0.2-0.4 <=0.03 <=0.03
W6Mo5Cr4V2(M2) 0.8-0.9 5.5-6.75 4.5-5.5 3.8-4.4 1.75-2.2 - 0.2-0.4 0.2-0.4 <=0.03 <=0.03
W6Mo5Cr4V2Co5(M35) 0.9-0.95 5.5-6.5 4.5-5.5 3.8-4.4 1.75-2.2 4.5-5.5 0.2-0.4 0.2-0.4 <=0.03 <=0.03
W2Mo9Cr4V2Co8(M42) 1.05-1.15 1.15-1.85 9.0-10.0 3.5-4.25 0.95-1.25 7.75-8.75 0.15-0.65 0.15-0.4 <=0.02 <=0.025

2. Size of ANSI HSS Drill Bit:

ANSI HSS Twist Drill Bits for Metal Stainless Steel

FRACTIONAL SIZES NUMBER SIZES LETTER SIZES
Dia. Dec. Eq. L2 L1 Dia. Dec.
Eq.		 L2 L1 Dia. Dec.
Eq.		 L2 L1
3/64 0.0469 1/2 1-3/8 1 0.228 1-5/16 2-7/16 A 0.234 1-5/16 2-7/16
1/16 0.0625 5/8 1-5/8 2 0.221 1-5/16 2-7/16 B 0.238 1-3/8 2-1/2
5/64 0.0781 11/16 1-11/16 3 0.213 1-1/4 2-3/8 C 0.242 1-3/8 2-1/2
3/32 0.0938 3/4 1-3/4 4 0.209 1-1/4 2-3/8 D 0.246 1-3/8 2-1/2
7/64 0.1094 13/16 1-13/16 5 0.2055 1-1/4 2-3/8 E 0.25 1-3/8 2-1/2
1/8 0.125 7/8 1-7/8 6 0.204 1-1/4 2-3/8 F 0.257 1-7/16 2-5/8
9/64 0.1406 15/16 1-15/16 7 0.201 1-3/16 2-1/4 G 0.261 1-7/16 2-5/8
5/32 0.1562 1 2-1/16 8 0.199 1-3/16 2-1/4 H 0.266 1-1/2 2-11/16
11/64 0.1719 1-1/16 2-1/8 9 0.196 1-3/16 2-1/4 I 0.272 1-1/2 2-11/16
3/16 0.1875 1-1/8 2-3/16 10 0.1935 1-3/16 2-1/4 J 0.277 1-1/2 2-11/16
13/64 0.2031 1-3/16 2-1/4 11 0.191 1-3/16 2-1/4 K 0.281 1-1/2 2-11/16
7/32 0.2188 1-1/4 2-3/8 12 0.189 1-3/16 2-1/4 L 0.29 1-9/16 2-3/4
15/64 0.2344 1-5/16 2-7/16 13 0.185 1-1/8 2-3/16 M 0.295 1-9/16 2-3/4
184 0.25 1-3/8 2-1/2 14 0.182 1-1/8 2-3/16 N 0.302 1-5/8 2-13/16
17/64 0.2656 1-7/16 2-5/8 15 0.18 1-1/8 2-3/16 O 0.316 1-11/16 2-15/16
9/32 0.2812 1-1/2 2-11/16 16 0.177 1-1/8 2-3/16 P 0.323 1-11/16 2-15/16
19/64 0.2969 1-9/16 2-3/4 17 0.173 1-1/8 2-3/16 Q 0.332 1-11/16 3
5/16 0.3125 1-5/8 2-13/16 18 0.1695 1-1/16 2-1/8 R 0.339 1-11/16 3
21/64 0.3281 1-11/16 2-15/16 19 0.166 1-1/16 2-1/8 S 0.348 1-3/4 3-1/16
11/32 0.3438 1-11/16 3 20 0.161 1-1/16 2-1/8 T 0.358 1-3/4 3-1/16
23/64 0.3594 1-3/4 3-1/16 21 0.159 1-1/16 2-1/8 U 0.368 1-13/16 3-1/8
3/8 0.375 1-13/16 3-1/8 22 0.157 1-1/16 2-1/8 V 0.377 1-7/8 3-1/4
25/64 0.3906 1-7/8 3-1/4 23 0.154 1 2-1/16 W 0.386 1-7/8 3-1/4
13/32 0.4062 1-15/16 3-5/16 24 0.152 1 2-1/16 X 0.397 1-15/16 3-5/16
27/64 0.4219 2 3-3/8 25 0.1495 1 2-1/16 Y 0.404 1-15/16 3-5/16
7/16 0.4375 2-1/16 3-7/16 26 0.147 1 2-1/16 Z 0.413 2 3-3/8
29/64 0.4531 2-1/8 3-9/16 27 0.144 1 2-1/16
15/32 0.4688 2-1/8 3-5/8 28 0.1405 15/16 1-15/16
31/64 0.4844 2-3/16 3-11/16 29 0.136 15/16 1-15/16
1/2 0.5 2-1/4 3-3/4 30 0.1285 15/16 1-15/16
33/64 0.5156 2-3/8 3-7/8 31 0.12 7/8 1-7/8
17/32 0.5312 2-3/8 3-7/8 32 0.116 7/8 1-7/8
35/64 0.5469 2-1/2 4 33 0.113 7/8 1-7/8
9/16 0.5625 2-1/2 4 34 0.111 7/8 1-7/8
37/64 0.5781 2-5/8 4-1/8 35 0.11 7/8 1-7/8
19/32 0.5938 2-5/8 4-1/8 36 0.1065 13/16 1-13/16
39/64 0.6094 2-3/4 4-1/4 37 0.104 13/16 1-13/16
5/8 0.625 2-3/4 4-1/4 38 0.1015 13/16 1-13/16
41/64 0.6406 2-7/8 4-1/2 39 0.0995 13/16 1-13/16
21/32 0.6562 2-7/8 4-1/2 40 0.098 13/16 1-13/16
43/64 0.6719 2-7/8 4-5/8 41 0.096 13/16 1-13/16
11/16 0.6875 2-7/8 4-5/8 42 0.0935 3/4 1-3/4
45/64 0.7031 3 4-3/4 43 0.089 3/4 1-3/4
23/32 0.7188 3 4-3/4 44 0.086 3/4 1-3/4
45 0.082 3/4 1-3/4
46 0.081 3/4 1-3/4
47 0.0785 11/16 1-11/16
48 0.076 11/16 1-11/16
49 0.073 11/16 1-11/16
50 0.07 11/16 1-11/16
51 0.067 11/16 1-11/16
52 0.0635 11/16 1-11/16
53 0.0595 5/8 1-5/8
54 0.055 5/8 1-5/8
55 0.052 5/8 1-5/8
56 0.0465 1/2 1-3/8
57 0.043 1/2 1-3/8
58 0.042 1/2 1-3/8
59 0.041 1/2 1-3/8
60 0.04 1/2 1-3/8


Package and Delivery:
1. Normal Package:5/10 pcs in a plastic bag,then inner box and out carton.
2. Other package:Blister card,Plastic tube,PVC pouch,according to your requirments.
3. Samples or small order will be delivered by courier,DHL,FEDEX,TNT,etc
4. Normal order will be delivered by sea.

5. 20-30 days after your deposite.

ANSI HSS Twist Drill Bits for Metal Stainless Steel

Payment:

1. We can accep L/C,T/T,Wester Union,etc

2. 20%-30% payment in advance,the balance against copy of B/L.

ANSI HSS Twist Drill Bits for Metal Stainless Steel

ANSI HSS Twist Drill Bits for Metal Stainless Steel

Welcome to visist our factory!
