High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling
Specifications
Material :
High Carbon Steel with Heat Treatment
Use :
wood perforation
Color :
Request
Product name :
wood working drill bit
Brand Name :
XRTOOLS
Model Number :
14mm-100mm
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
500PCS
Price :
$0.45-1.5/PCS
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
20000PCS PER DAY
Delivery Time :
25-30 days
Packaging Details :
Each item will be transparent plastic box
Teeth Type :
Tungsten Carbide
FINISHED :
Ground Finish
Shank :
Round,Hex
Size :
14mm-100mm
Description

High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling

Quick Details:

1 Open tooth design for clean fast holes.
2 Designed for perfectly smooth, flat-bottomed, and splinter-free holes.
3 Ideal for drilling decorative holes for fine woodworking and hinge boring.
4 Withstand high temperatures during drilling, reducing the risk of burning.
5 Suitable for portable drills or stationary machines.


High Carbon Steel Forstner Drill Bit with Tungsten Carbide Teeth for Wood Drilling

Size

Size Middle Shank Diameter Small Shank Diameter/mm Overall Length
mm Inch mm Round Shank Hex Shank Quick Change Shank mm
10 3/8″ 8.0 8.0 6.9 6.35 90
15 19/32″ 10.0 8.0 6.9 6.35 90
20 3/4″ 10.0 8.0 6.9 6.35 90
25 1″ 12.0 8.0 6.9 6.35 90
30 1-3/16″ 15.0 8.0 6.9 6.35 90
32 1-1/4″ 16.0 10.0 6.9 6.35 90
35 1-3/8″ 18.0 10.0 8.6 6.35 90
38 1-7/16″ 20.0 10.0 8.6 – 90
40 1-9/16″ 15.0 10.0 8.6 – 90
42 1-5/8″ 15.0 10.0 8.6 – 90
45 1-3/4″ 15.0 10.0 8.6 – 90
50 2″ 15.0 10.0 8.6 – 90
55 2-5/32″ 15.0 12.7 11.0 – 90
60 2-3/8″ 15.0 12.7 11.0 – 90

Description

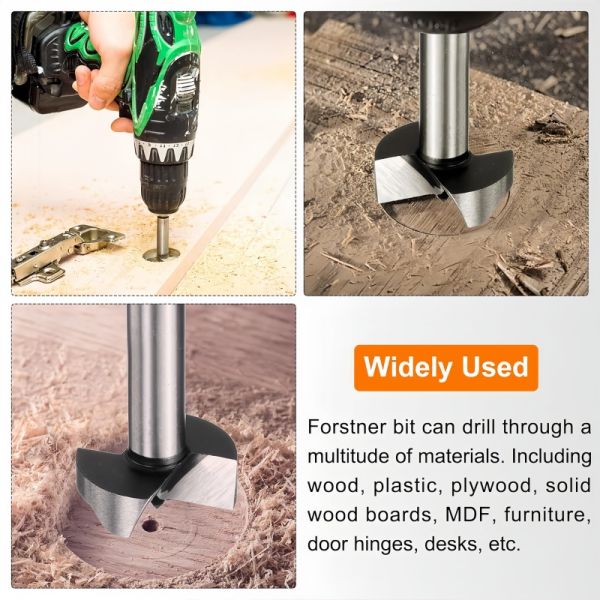

Used for wood perforation,spherical door tip installation,drawer tip,plastic products,wood,plywood,etc.

Trepanning more smooth,less noise.
Sharp edge,high hardness,accurate positioning,high precision,smooth cutting,impact resistance,high toughness.
Enable woodworkers to drill holes without passing through the material when a clean and precise bottom to a

hole.Selection of high quality alloy blade,make blade more sharp and durable,it's head adopt arc curve design,

beneficial to chip removal, perforation is more efficient.

Hex shank of the wood working drill bit Suitable for hand held electric drill,stand motor-driven drilling machine

and mobile ribbon type magnetism drilling machine.
