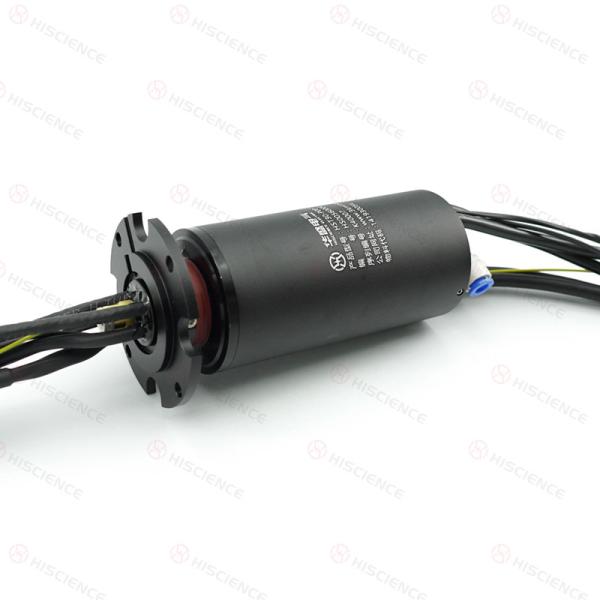

Innovative Rotary Unions for High-Performance Industrial Machinery
Innovative Rotary Unions for High-Performance Industrial Machinery
Specifications
Brand Name :
Hiscience
Model Number :
HST28-P10-S16-G02
Certification :
RoHs
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
2000 PCS/week, Stock Available
Delivery Time :
4-6 Weeks, Stock Available
Packaging Details :
Carton
Number Of Circuits :
10 Circuits 10 A+ 16 Signals+ 2 Shield
Working Temperature :
-40℃~+80℃
Operating Speed :
0-200rpm
Housing Material :
Aluminum Alloy
Contact Material :
Precious Metal
Electrical Noise :
≤10mΩ
Connection Thread Size :
M5, 4mm
Pressure :
1 Mpa
Description

Slip Rings 10 Circuits 10 A+ 16 Signals+ 2 Shield

Product Description:

Integrated Pneumatic-Electrical Design: Combines electrical circuits with a pneumatic passage in one unit, saving space and simplifying installation.

Precious Metal Contacts: Ensures reduced wear, high conductivity, and extended service life under continuous operation.

Durable Housing: Aluminum alloy construction provides strength, corrosion resistance, and a lightweight design.

Applications:

Textile Machinery: Provides power, signals, and compressed air for high-speed sewing and embroidery equipment, ensuring smooth fabric handling and precise control.

Packaging Equipment: Enables continuous rotation of sealing and labeling heads while transmitting signals and air pressure, improving efficiency in food and consumer goods packaging.


Mixers and Process Equipment: Maintains stable connections in mixers for food, chemical, and pharma industries, with low torque for smooth shaft rotation.

Specifications:

Electrical Parameter
Circuits/Current

10 Circuits 10 A+ 16 Signals+ 2 Shield
Voltage 0-380VAC/DC
Lead Wire size

AWG17#/AWG24# Teflon Insulated

RVSP-8*0.15mm² Cable
Dielectric strength ≥500V@50HZ
Insulation Resistance 500MΩ@500VDC
Dynamic Contact Resistance ≤10mΩ

Mechanical Parameter

Working Speed

 0-200RPM
Protection(lP Grade) IP51
Working Temperature -40℃~+80°C
Contact Material Precious Metal
Housing Material Aluminum Alloy

Pneumatic Parameter

Passages

 1 Passage
Connection Thread Size M5, 4mm
Pressure 1 Mpa
Transmitting Media Compressed Air

Drawings:

Innovative Rotary Unions for High-Performance Industrial Machinery

FAQ:

Q: Can this slip ring transmit power, signals, and air at the same time?
A: Yes. It supports 10 × 10A power circuits, 16 signal circuits, plus 1 pneumatic passage, making it ideal for hybrid transmission.

Q: Will the signals suffer from interference?
A: No. The slip ring features shielded wiring and precious metal contacts, ensuring low noise and stable signal transmission.

Q: Is customization available?
A: Yes. We offer customized solutions for circuit number, current rating, signal type, pneumatic or hydraulic passages, and dimensions to meet specific requirements.
