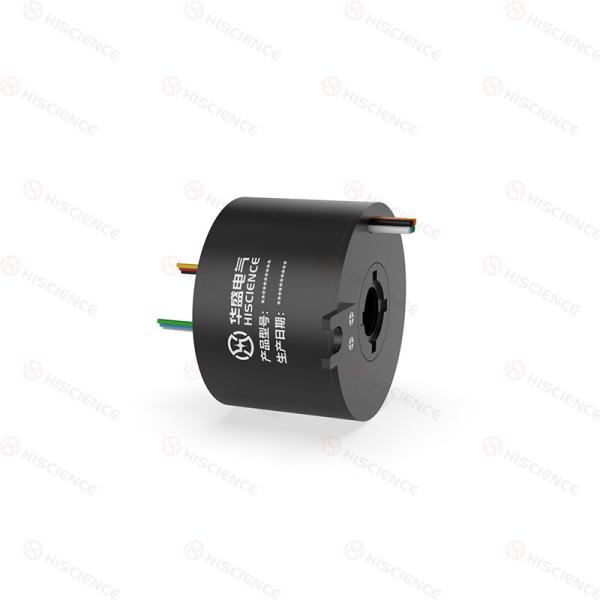

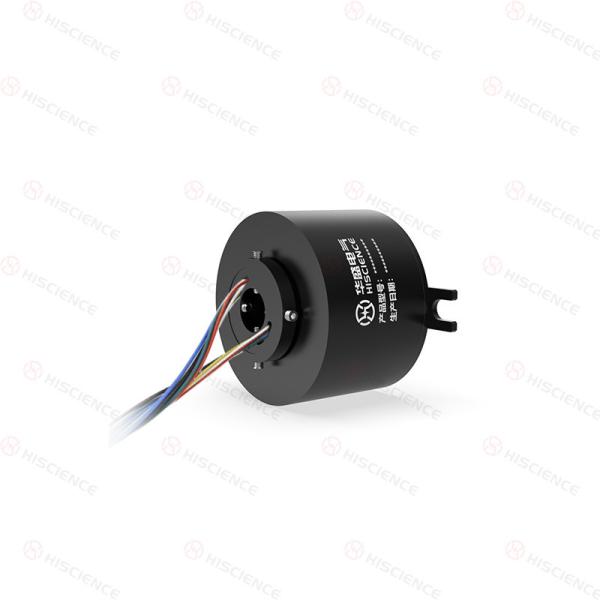

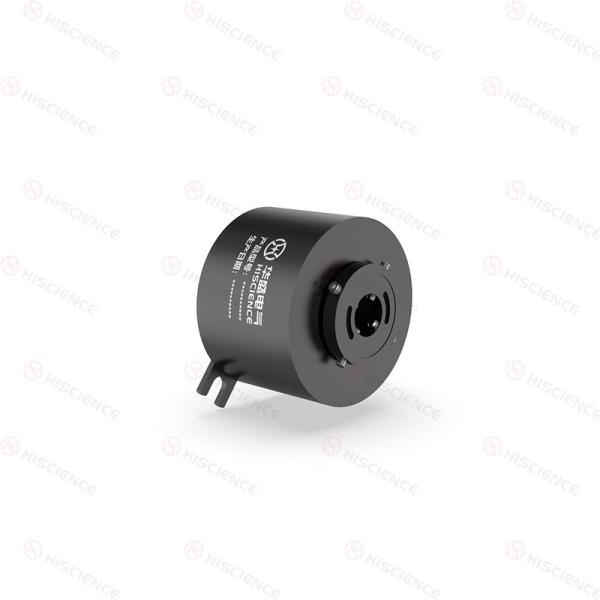

Through Bore Slip Rings 18 circuits 5 A 16 circuits signal 2 circuits shielded Hole Size 12.7mm

Product Description:

Features

• High Circuit Count: These Through Bore Slip Rings feature 18 circuits, providing ample channels for power transmission, signal transfer, and control in complex systems.

• Moderate Current Capacity: With a maximum current rating of 5 A per circuit, these slip rings are suitable for applications that require the transmission of moderate power loads.

• Signal Transmission: The 16 circuits dedicated to signal transmission ensure reliable and efficient transfer of control signals, data, and communication between rotating and stationary parts.

Typical Application:

• Communications Systems: These slip rings are used in communication systems, including satellite dishes, antennas, and tracking systems, allowing for the transmission of power and signals during satellite tracking and communication.

• Crane and Hoist Systems: Through Bore Slip Rings find applications in crane and hoist systems, enabling power and signal transmission for rotating booms, trolleys, and lifting mechanisms.

• Stage and Theater Lighting: These slip rings are employed in stage and theater lighting systems, facilitating power and signal transmission for rotating lighting fixtures, moving heads, and color changers.

Specifications:

Drawing for HT1256-P1805-S16-G02:

FAQ:

Are the slip rings compatible with different hole sizes?

These slip rings have a standardized hole size of 12.7mm. If a different hole size is required, it is advisable to consult the manufacturer for customization options.

What industries or applications are these slip rings commonly used in?

These slip rings find applications in a wide range of industries, including manufacturing, automation, robotics, packaging, industrial machinery, and any application that requires the transmission of power, signals, and control between rotating and stationary components.

Are there any specific maintenance requirements for these slip rings?

These slip rings are designed for maintenance-free operation. However, periodic inspection and cleaning may be necessary to ensure optimal performance and longevity. It is recommended to follow the manufacturer's guidelines and recommendations for maintenance.
