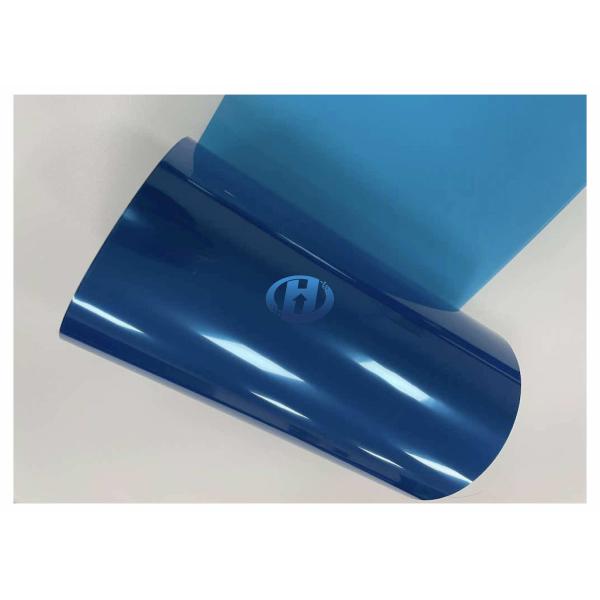

50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
Specifications
Brand Name :
HSF
Model Number :
50BLU5SF-SS-PET
Place of Origin :
China
MOQ :
1000kg
Payment Terms :
T/T, L/C
Supply Ability :
80000kg per week
Delivery Time :
within 10 days
Packaging Details :
PE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
Material :
Polyethylene Terephthalate
Color :
Blue, Customized
Thickness :
50μm ± 3%
Width :
≤2300mm
Core :
6" or 3"
Coating :
Single Side Non Silicone Coating
Release Force :
1-5gf
Subsequent Adhesion Rate :
≥75%
Length :
≤4000m
Splice :
≤1
Sample :
A4 sheet for free
Description

PET Non-Silicone Release, High temperature resistant tape, silicone protective film, labels, cellphone.

S/N Test Item Unit Standard Value Test Method
1 Thickness μm 50 ±2% 49.72 GB/T6672
2 Color - Blue - -
3 Tensile Strength MD Mpa ≥180 187 GB/T 1040.3
TD Mpa ≥190 196
4 Elasticity Modulus MD Mpa / 4144
TD Mpa / 4230
5 Elongation @ break (%)

MD

 % ≤200 148
TD % ≤200 139
6 Thermal Shrinkage MD % ≤1.5 0.96 1 150℃/30min
TD % ≤0.0 0.00 0 200℃/10min
7 Friction Coefficient F/M-US % ≤0.65 0.5 GB/T 10006
F/M-UK % ≤0.50 0.3
8 Haze % ≤5 2.99 GB/T2410
9 Luminousness % ≥86 89.4 GB/T2410
10 Glossiness % ≥100 133 GB/T8807
11 Wetting Tension mN/m ≥50 58 GB/T14216
12 Release Force gf/25mm 3-5 4 Final 10, 20min.
13 Sub-sequent Adhesion Rate % 91% 92

It is applied to high temperature resistant tape, silicone protective film, labels, cellophane, etc.

It is suitable for the release, transfer lamination and processing of various adhesive materials for punching.

Product features:

1. PET is used as the substrate for precision coating of silicone-free release agent, forming a uniform and stable coating on the surface.

2. Class 1000 dust-free workshop, strict appearance management.

3. No silicon pollution.

4. Customized material thickness, color, etc. according to customer requirements.

50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry

50 μm Blue Polyester Film N Release High Temperature Resistant used as waste discharge films in 3C industry
