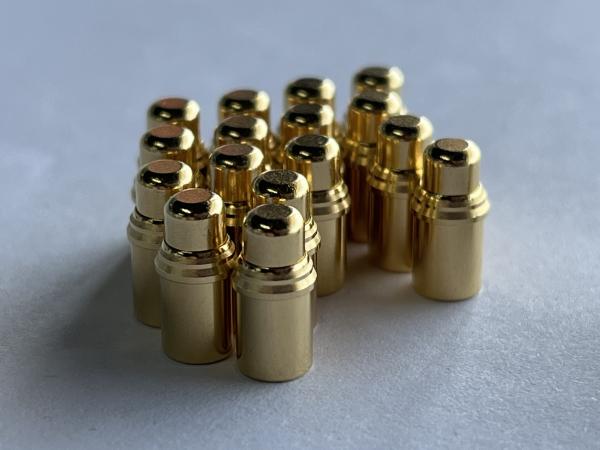

High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution
Specifications
Brand Name :
HONSHI
Model Number :
A30500XXSVX01
Certification :
ISO9001/ISO14001/CE/ROHS/REACH
Place of Origin :
CHINA
MOQ :
100 pieces
Price :
Negotiates
Payment Terms :
T/T,Paypal
Supply Ability :
990000pcs
Delivery Time :
7~10Day
Packaging Details :
PE Bag,Tube,Reel Packaging
Specification: :
Spring pogo pin
Type :
SMT Type
Pin Length :
4.5mm or can be custom
Material :
Brass(C3604,C6801)
Spring :
SUS304
Plated :
Gold palted(3U") can customized
Salt Spray Test :
72H
Applications :
PCB,power ,charging equipment
Sample :
Support samples with 1weeks
Description

Customized Smd pcb pogo pins High Precision Spring Loaded Pogo Pin Connector

Charging Spring Pin

Specific material electrical parameters
Electrical Performance: Mechanical Performance:
Rated Current: 1.5AMP Spring force: 100g±20g or Customized
Contact Resistance: 50mΩ Max Work Stroke: 0.5mm or Customized
Rated Voltage: DC 12V Maximum Working stroke: 0.8mm or Customized
Operation Temperature: -40°c to +105°c Mechanical Life 100,000 cycles
Resistance To Solder Heat: 260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double

head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

High Precision Spring Loaded Pogo Pin Connector Customizable Smd Pcb Charging Solution

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
