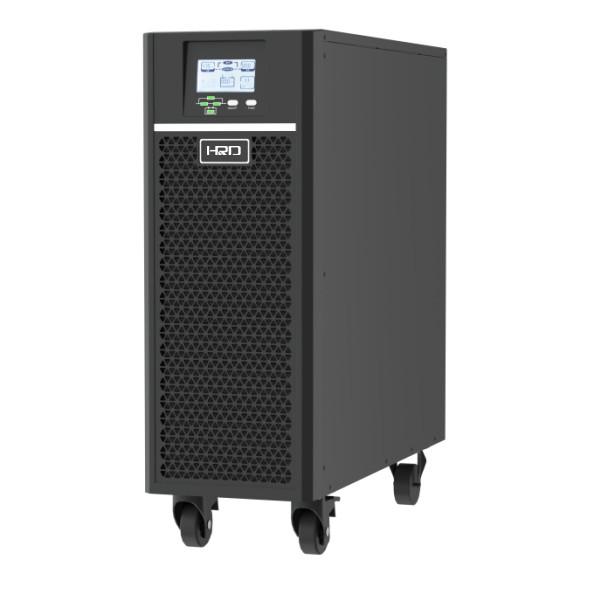

PC MAX 10-20KVA 3/1PHASE
PC MAX 10-20KVA 3/1PHASE
Specifications
Brand Name :
OEM/HRD
Model Number :
PCM3310L ,PCM3115L,PCM3120L
Certification :
ISO9001,CE
Place of Origin :
CHINA
MOQ :
5
Price :
650-1200USD/PCS;
Supply Ability :
500PCS /WEEK
Delivery Time :
5-6weeks after deposit
Packaging Details :
standard for export
PF :
1.0
Efficency :
95%
Charger :
1-12A
Warranty :
18months
Description


Power Capacity

10~20KVA,1.0PF

Operation:

3P/1P and 1P/1P, Online double conversion

Perfect Application:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc.

Main Features:

  • Online double conversion, full digital control.
  • 3/1phase and 1/1phase convertiable.
  • Input PF above 0.99, THDi less than 3%
  • Output PF=1, super strong load capability.
  • Online 3-level topology, efficiency 95% in normal mode.
  • ABM fast charger 1-12A settable
  • Wide range of input voltage and frequency tolerance.
  • Adapt to half-wave load and compatible with generator.
  • Auto fault waveform recording.
  • Self-aging test function,

Model PCM3110L PCM3115L PCM3120L
Rate Power 10kVA 15kVA 20kVA
Cold start Default output 50/60Hz
Input voltage range 190~499VAC(L-L)
Input power factor ≥0.99
Frequency range 40-70Hz
Output frequency 50/60Hz,self adaption
Output power factor 1.0
Rate output 220/230/240VAC
Load regulation ±1%
Output THDu ≤1%,Linear load
≤3%,non-linear load according to IEC62040-3
Transfer time-INV to BYP 0ms
Efficiency- normal mode Max 95%
Efficiency- ECO mode 98%
Noise (1 meter) <55dB <62dB <62dB
Overload (normal mode) 110%:10mins；125%:1min；150%:30 seconds
Battery Model External batteries,16-24 settable
Quantity
Max charging 5A
Rate voltage Default 192VDC,settable
Crest factor 3:1
Standard RS232&USB, RS485, EPO
Option AS400, SNMP card, Parallel kit, Air filter, Maintenance bypass kit
Dimension, W*D*H(mm) 190*564*500
Weight(kg) 30
Statement: Specification may updates without further notice.
