Introduction:

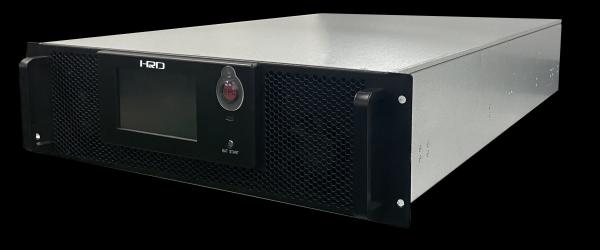

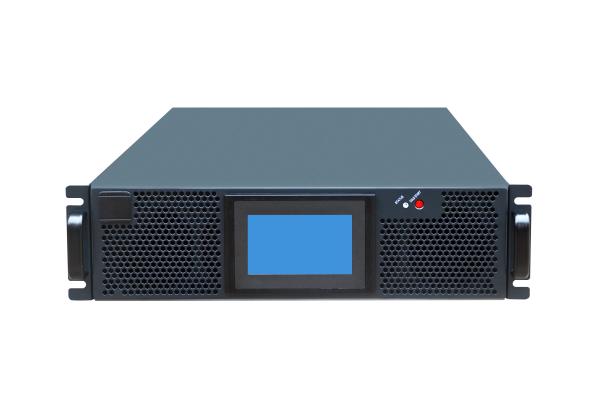

This PWR series Rack mount 3phase UPS10~40KVA is online double conversion online UPS with fully DSP controlled technology.It’s convertable 3/3phase or 3/1phase with high effiecny compact design,an ideal choice for small and medium data center.
Perfect Applications
Small and medium data center, network servers and workstation, control system, communication system, office, PC etc
Characteristics
Model | PWR3310 | PWR3315 | PWR3320 | PWR3320 | PWR3340 | ||
Rate Power | 10kVA/10kW | 15kVA/15kW | 20kVA/20kW | 30kVA/30kW | 40kVA/40kW | ||
Main input | Input | 3P5W (3P+N+PE) | |||||
Rate Voltage | 380/400/415VAC(L-L);220/230/240VAC(L-N) | ||||||
Rate Freq. | 50/60Hz | ||||||
Input PF | >0.99 | ||||||
Current distortion | THDi<3%(100% Linear load) | ||||||
Voltage range | 304~478VAC(L-L)full load;304~228VAC (L-L) power derate from 100% to 75% | ||||||
Freq. range | 40-70Hz | ||||||
Battery | Rate voltage | ±240VDC(32-44 batteries settable) | |||||
Charging capacity | 20%*Pout | ||||||
Charging accuracy | ±1% | ||||||
Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||
Voltage range | Range: -40%- +25% , Settable, default -20%~+15% | ||||||
Frequency range | 50/60Hz,Settable:±1Hz,±3Hz,±5Hz | ||||||
Inverter | Rate voltage | 380/400/415VAC(L-L);220/230/240VAC(L-N) | |||||
Rate Freq. | 50/60Hz | ||||||
Output PF | 1 | ||||||
Voltage accuracy | ±1.0% | ||||||
Load response | <5% (20% - 80% -20% step load) | ||||||
Recovery time | < 20ms (0% - 100% -0% step load) | ||||||
Output THDu | <1%(linear load),<5% (non-linear load according to IEC 62040-3) | ||||||
Overload | 110%,1 hour;125%,10 mins;150%,1 min;>150%,200ms | ||||||
Frequency accuracy | 0.1% | ||||||
Synchronize window | Settable,±0.5Hz-±5Hz,default ±3Hz | ||||||
Slew rate | Settable,0.5Hz/S-3Hz/S,default 0.5Hz/S | ||||||
Crest factor | 3:1 | ||||||
Phase Accuracy | 120°±0.5° | ||||||
System | Efficiency | Normal Mode≥96%;Battery Mode≥96% | |||||
Display | LED + 5.5 inch touch LCD | ||||||
Certification- Safety | IEC62040-1, IEC60950-1 | ||||||
Certification- EMS | IEC62040-2;IEC61000-4-2(ESD);IEC61000-4-3(RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge) | ||||||
IP degree | IP20 | ||||||
Configuration | USB, RS232, RS485, Dry contact | ||||||
Option | SNMP card, AS400 card, Parallel kit, LBS, Air filter, Cold start | ||||||
Environment | 0-40℃(operation);-25℃~70℃(storage);0-95% (Humidity, non-condensing ) | ||||||
Dimension (W*D*H) mm | 440*700*130*130 (3U) | 440*700*130*130 (3U) | |||||
Statement:The subject is to be updated without further notice. |
