Specifications
Place of Origin :
Guangdong China
Brand Name :
HRD/OEM OR ODM
Certification :
CE, TUV, ISO9001-2008
Model Number :
6K,10K
MOQ :
20ft
Price :
1000USD/PCS;
Packaging Details :
with wooden pallet
Delivery Time :
3 weeks after down payment
Payment Terms :
TT or LC
Supply Ability :
2000pcs/ month
Warranty :
18months after shipment with 1.5% spare parts with consigment
Description

PC Plus TX 2 Phase 8kva Online High Frequency Ups With Dual Input AC

Quick Detail:

1)SNMP/AS400/USB/Smart RS-232 Optional

2) Capacity: 6KVA/5.4kW 10KVA/9kW

3) Charge voltage:275Vdc

PC plus TX 2 phase Online UPS 6-10KVA, No breaks

1.DSP control ,with excellent performance and comprehensive protections for load and UPS ;

2. Output power factor 0.9,offering more stronger load capability;

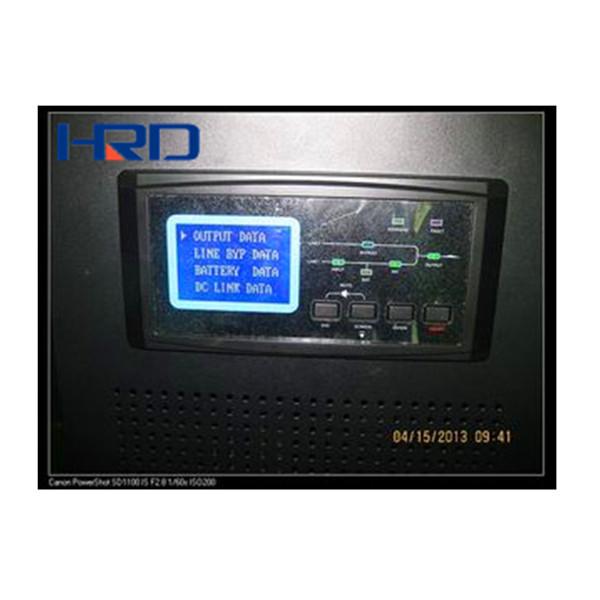

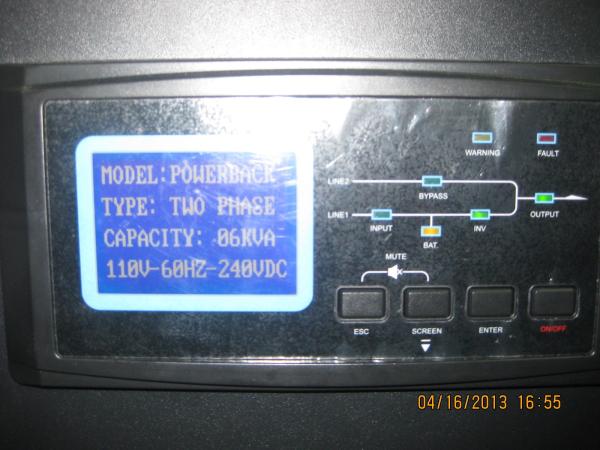

3. Large LCD ,multi language display(English, Spanish, Portuguese…),plenty of information

4.Wide input range ,support kinds of generator;

5.Dual input AC source supportable

5. EPO(emergency power off);

6.Event log up to 100 events, recording UPS running time and critical memories ;

7.Configuable output both 120/ 208/240Vac

8.N+X parallel redundancy, up to 6units

9.AC and cold start function;

10. ECO function

11. Conformal coating PCB for more critical operation environment

12. Frequency convertor mode(input 60Hz, output 50Hz,vice versa)

13.Intelligent fan running, varying according to load and temperature, 4 levels;

14. Multiple communication ports (optional)

15. Intelligent 10A DSP charger (optional)

Technical Specification:

Model

PCP6K -TX

PCP6KS -TX

PCP10K -TX

PCP10KS -TX

Capacity(Kva/kW)

6KVA/5.4kW

10KVA/9kW

Input PF

≥0.99

Input

voltage

Phase

2Lines

Low

transfer

L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load

Low back

L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load

High transfer

L-L 286 VAC ± 3%

High back

L-L:270 VAC ± 3%

Input frequency

40-70hz

Battery

quantity

external battery

20PCS*12V*7Ah

external battery

20PCS*12V*9Ah

Back up time

depend on external Battery

6mins @ full load

depend on external Battery

4mins @ full load

DC voltage

240Vdc

Charge voltage

275Vdc

Recharging current

4A(8A optional)

1A

4A(8A optional)

1A

Output

Output P.F

0.9

Output voltage

120/208/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2%(linear load), Less than 4% Non-linear load

Over load

105%<load<125% for 1 mins ,125%<load<150% for30sec

Efficiency

89%(Line mode)

88%(AC mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt,Load VA,Battery level, Input/Output voltage, output current,Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 60dBA @ 1 Meter

Physical

Net Weight (KG)

62

120

160

206

Gross Weight(KG)

74

132

180

249

UnitDimension

(D*W*H)mm

509*250*530

600×300×810

600*300*742

600*300*892

Packing (D*W*H)mm

650*363*765mm

680*360*960

720*420*920

720*420*1070

Note:All specifications subject to change without further notice; customized specifications are acceptable
