Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized
Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized
Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized
Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized
Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized
Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized
Specifications
Brand Name :
HYX
Model Number :
BS 3059
Certification :
CE
Place of Origin :
China
MOQ :
1Ton
Price :
$550-$650
Payment Terms :
T/T,L/C
Supply Ability :
30000Tons/Month
Delivery Time :
7-15days
Packaging Details :
Standard package
Application :
Machinery, Automobile, etc.
Inner Diameter :
Customized
Length :
Customized
Material :
Steel
Outer Diameter :
Customized
Package :
Standard Export Package
Shape :
Tube
Size :
Customized
Standard :
ASTM, DIN, etc.
Surface Treatment :
Polishing, Galvanizing, etc.
Tolerance :
Customized
Wall Thickness :
Customized
Ends Treatment :
Threaded, Beveled, etc.
Packing :
Bundles, Wooden Cases, etc.
Processing Technology :
Hot Rolled, Cold Rolled, etc.
Welding Line Type :
ERW, LSAW, etc.
Description
  • Standards of seamless steel pipe
  • BS
    Product Name Executive Standard Dimension (mm) Steel Code / Steel Grade
    Seamless Steel Tubes for Machine Structure BS 970 Ø10~762 x WT1.0~120 Carbon Steel
    Seamless Steel Tubes for Boiler and Heat Exchangers BS 3059 Ø10~762 x WT1.0~120 360, 410, 440, 460, 490

  • BS 3059 ST320 CFS 320 Boiler Tube/Pipe

    1) Standard: BS 3059
    2) Certificate: ISO 9001: 2000, PED, API, TS16949, EN10204/3.1
    3) OD: 17.1-114.3mm
    4) WT: 2-14mm
    5) Equivalent Standard: ASTM A179/ A192, DIN17175 ST35.8
    6) Surface treament: Balck painting or oiled. Vanish coating.
    7) Application: Boiler, Petrochemical, power, light industry, oil and gas transport etc.

    size 1/8" to 48''
    wall thickness SCH10-SCHXXS
    length 1.8m, 5m, 5.8m, 6m, 9m, 11.8m; 1.8m to 11.8m
    material Gr.A, Gr B, X42-X80,Q235 etc
    standard ASTM A252, API5L,JISG3444,DIN17172

    Specifications BS 3059 Gr.360/440
    Dimensions ASTM, ASME and API
    Size 1/8″NB TO 30″NB IN
    Thickness 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
    Type Seamless - Hot Rolled / Cold Drawn
    Form Round, Square, Rectangular, Hydraulic Etc
    Length Single Random, Double Random & Cut Length.
    End Plain End, Beveled End, Coupling

    Types of BS 3059 Gr.360/440 Tubes

    CS BS 3059 Gr.360 Carbon Tubes BS 3059 Gr.440 Superheater Tubes
    BS 3059 Gr.360 Cold Drawn Tubes Carbon Steel BS 3059 Gr.440 Polish Tubes
    BS 3059 Gr.360 Seamless Tubing BS 3059 Gr.360 Boiler Tubes
    BS 3059 Gr.440 Polish Seamless Tubes BS 3059 Gr.360 Rectangular Tubes Supplier
    BS 3059 Gr.360 Square Tubing CS BS 3059 Round Tubes
    Carbon Steel BS 3059 Superheater Tubes BS 3059 Gr.440 Boiler Tubing
    BS 3059 Gr.360 Carbon Tubes BS 3059 Gr.440 Tubing
    BS 3059 Seamless Tubing Exporter BS 3059 Cold Drawn Tube Dealer
    Carbon Steel BS 3059 Gr.440 Plain End Tubes BS 3059 Gr.360 Beveled End Tube
    CS BS 3059 Gr.440 Single Random Tube BS 3059 Gr.360 Double Random Tubes

    BS 3059 Gr.360/440 Seamless Tubes Chemical Composition

    Grade BS 3059 Gr.360/440
    360 440
    C 0.17 0.12-0.18
    Mn 0.40-0.80 0.90-1.20
    Si 0.10-0.35 0.10-0.35
    P 0.035 0.035
    S 0.035 0.035

    BS 3059 Gr.360/440 Tubes Mechanical Properties

    Grade BS 3059 Gr.360/440
    360 440
    Tensile Strength (MPa) min 360-500 440-580
    Yield Strength 0.2% Proof (MPa) min 235 245
    Elongation (% in 50mm) min 24 21

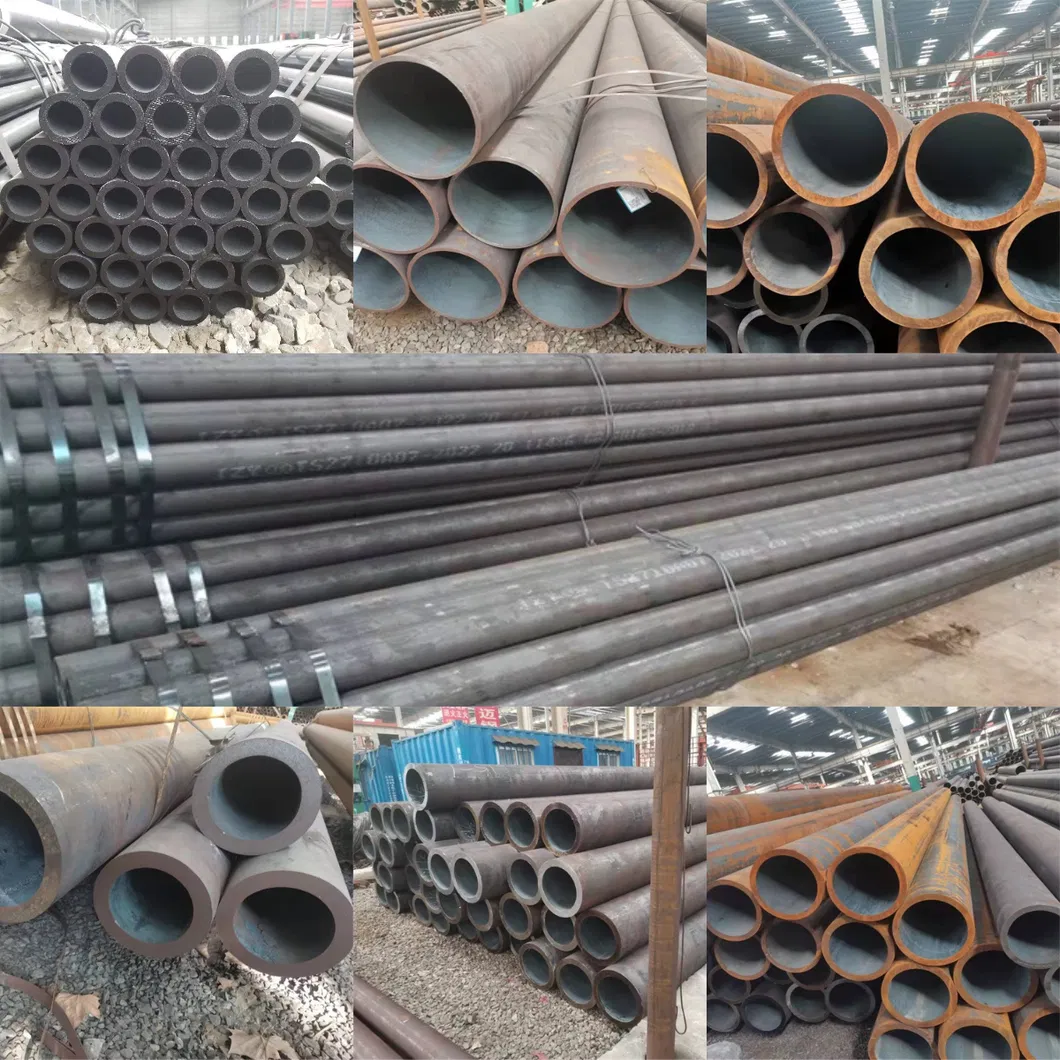

    Detailed Photos

    Standard BS-3059-1-320 Boiler Grade Steel Cold Drawn Seamless Pipe Tube Customized

FAQ
1. How can I get a quotation from you?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager. And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course.Usually our samples are free. we can produce by your samples or technical drawings. We can build the molds and fixtures.
3. What is your delivery time ?
The time of delivery is usually around 1 month(1*40FT as usual).We can send out in 2 days, if it has stock.
4.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble. Exw,FOB, CFR, CIF, DDU.
5. How can you garantee what I got will be good ?
We are factory with 100% predelivery inspection which garantee the quality.And as golden supplier on . assurance will make garantee, which means will pay your money back in advance if there is any problem with the products.
6. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them?
