Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Specifications
Smt And Dip :
Support
Size :
Customized
Number Of Layers :
Single-layer and double-sided boards
Min. Line Spacing :
0.1mm
Insulating Resin :
Polyimide resin (PI)
Copper Thickness :
2oz
Plate Thickness :
0.25mm±0.05
Insulation Resistance :
500MΩ
Cri :
80
Model :
FPC
Material :
Flexible Printed Circuit
Product Model :
HQ010
Min. Line Width :
0.1mm
Min. Hole Size :
0.2mm
Rohs Compliant :
Yes
Brand Name :
HQ
Model Number :
HQ00537
Certification :
UL E477885 IATF16949 GB/T
Place of Origin :
GuangDong,China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
L/C,D/A,T/T,D/P
Supply Ability :
200000 Pieces per month
Delivery Time :
negotiable
Packaging Details :
Packed with strong Paper cases
Description
Medical Equipment FPC Precision Flexible Printed Circuit Board

High-quality flexible printed circuit board specifically designed for medical beauty devices and LED lighting applications.

Product Specifications

Model: HQ00537

Name: Infrared Health Care FPC

Features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant

Key Advantages

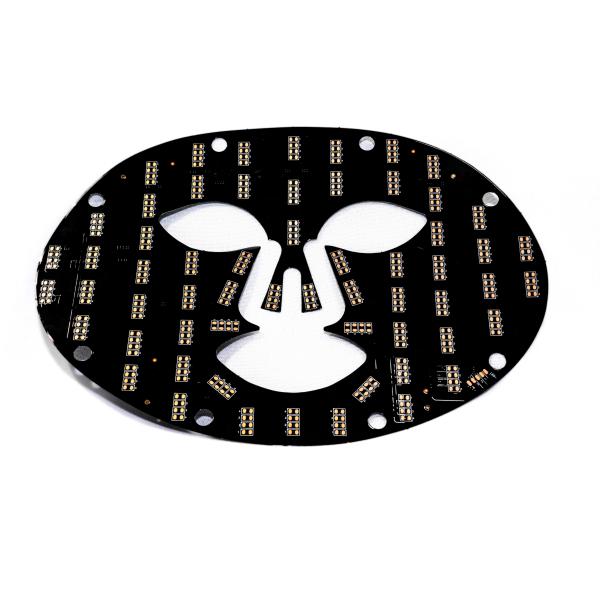

  • Customizable material thickness and process requirements for infrared health care FPC and LED flexible mask circuit boards
  • Single and double-sided multi-layer wiring capabilities
  • Excellent flexibility and resistance to bending
  • Professional bending testing with tens of thousands of tests conducted before mass production
Technical Design Parameters
Dimensions
Board Type Maximum Size
Precision FPC 240mm x 500mm (max 250mm x 500mm)
Roll Material Board 240mm width x 100 meters length
Layer Configuration
Layer Type Applications
Single-Layer Boards Industrial control and electronic instruments with straightforward circuitry
Double-Layer Boards Mobile phones, automotive instruments, and complex applications
Solder Mask Color Options
Color Recommended Applications
Yellow Most products, including various cable products
Black High-end or light-sensitive applications (cars, mobile phones, LED displays)
White Products requiring reflection (lighting fixtures, medical beauty devices)
Copper Foil Thickness
Board Type Thickness Options
Precision FPC Single Panel 18um (0.5oz) or 35um (1oz)
Precision FPC Double-Layer Board 12um (0.33oz), 18um (0.5oz), or 35um (1oz)
Ordinary FPC Single Panel 18um/25um/35um (1oz) or 50um
Ordinary FPC Double-Layer Board 18-25um, 25-25um, 35-35um, or 35-70um
Minimum Line Width/Spacing

Recommended minimum of 3mil to reduce manufacturing difficulty and defect rates.

Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size Medical Equipment FPC Circuit Board with 0.1mm Min. Line Width, Polyimide Resin (PI), and Customized Size
Certifications and Quality Assurance

GongDong HongQi is a professional circuit board manufacturer with 16 years of experience in China, specializing in FPC sample making and customization services.

Important Note

All photos on this site are authentic. Minor color variations may occur due to lighting conditions, shooting angles, and display resolution differences.

We offer comprehensive services including substrate production, wiring, principle design, mold creation, patch, and plug-in assembly. Contact our professional sales team for one-on-one consultation and customized solutions.
