Specifications
Brand Name :
HONGQI
Model Number :
HQ40040
Certification :
UL E477885 IATF16949 GB/T13485
Place of Origin :
GuangDong,China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
L/C,D/A,T/T
Supply Ability :
100000 Pieces per month
Delivery Time :
8-15 working days
Packaging Details :
Packed with strong Paper cases
Copper Foil Thickness :
1oz
Ip Rating :
IP65
Copper Thickness :
35um
Power Consumption :
4.8W/m
Size :
Customized
The Min Hole :
0.1mm
Processing Technology :
rolled foil
Led Color :
White
Smp :
Support
Soldmask :
White
Waterproof :
Yes
Width :
10mm
Insulating Material :
organic resin
Voltage Rating :
12V
Flexibility :
Flexible
Description
FPCB - BARE - 2835-120D-40R-5MM-12V-0805 Flexible LED Strip Circuit Board
Product Overview
  • Model Number: HQ40040
  • Product Name: Flexible LED Strip Circuit Board
  • Features: Double-layer board with double-sided white film, black character OSP anti-oxidant
Specifications
  • LED Type: 5050
  • Quantity per Unit: 30 LEDs/PC
  • Dimensions: 10mm x 503mm
  • Voltage: 24V
  • Board Type: Double-sided FPCB with white film
FPC Design Parameters
Dimensional Precision
  • Precision FPC: Maximum size of 240mm (width) × 500mm (length), with no minimum size constraint
  • Roll Material Board: Maximum width of 240mm, maximum length of 100 meters
Number of Layers
  • Single-layer boards: Suitable for simple circuits commonly used in industrial control and electronic instruments
  • Double-sided boards: Feature two layers of copper foil, increased vias, and conductive pathways, ideal for applications such as mobile phones, automotive instruments, and other complex products
Solder Mask Color Options
Color Applications
Yellow Film Suitable for general-purpose products (e.g., cable products)
Black Film Preferred for high-end or light-absorbing applications (e.g., cars, mobile phones, LED displays)
White Film Includes additional white coating layer, ideal for products requiring reflection (e.g., lighting fixtures, medical devices)
Copper Foil Thickness
Board Type Thickness Options
Precision FPC Single Panel 18μm (0.5oz) or 35μm (1oz)
Precision FPC Double-layer Board 12μm (0.33oz), 18μm (0.5oz), or 35μm (1oz)
Ordinary FPC Single Panel 18μm/25μm/35μm (1oz)/50μm
Ordinary FPC Double-layer Board 18-25μm, 25-25μm, 35-35μm, or 35-70μm
Minimum Line Width/Spacing
  • Recommended minimum line width and spacing: 3mil (0.076mm)
  • Smaller dimensions may increase production difficulty and defect rates
Technical Services
  • Custom Design Support: Tailored solutions for specific application requirements
  • Sample Testing: Free sample testing available upon request
  • Quick Turnaround: Fast production and delivery to meet urgent project deadlines
Quality Assurance
  • All products are rigorously tested to ensure compliance with industry standards
  • We provide a 100% satisfaction guarantee for our products, with a focus on quality and reliability
  • Flexible circuit board dual panel samples can be completed within 5-7 days

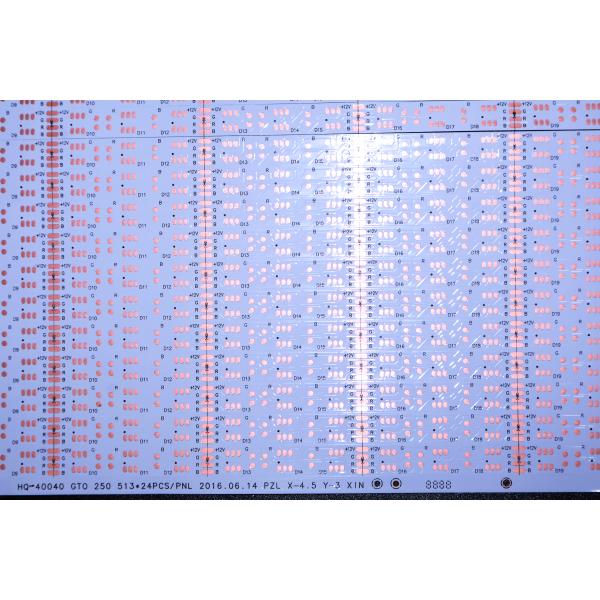

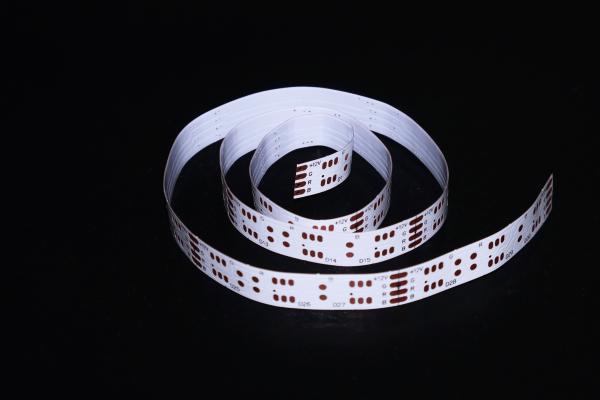

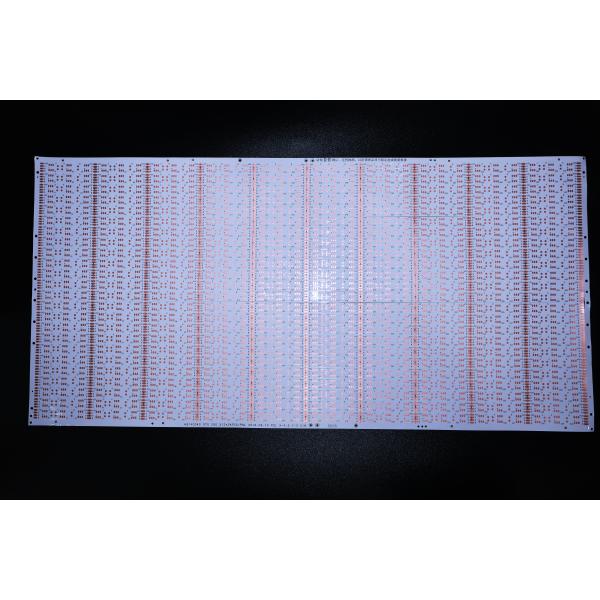

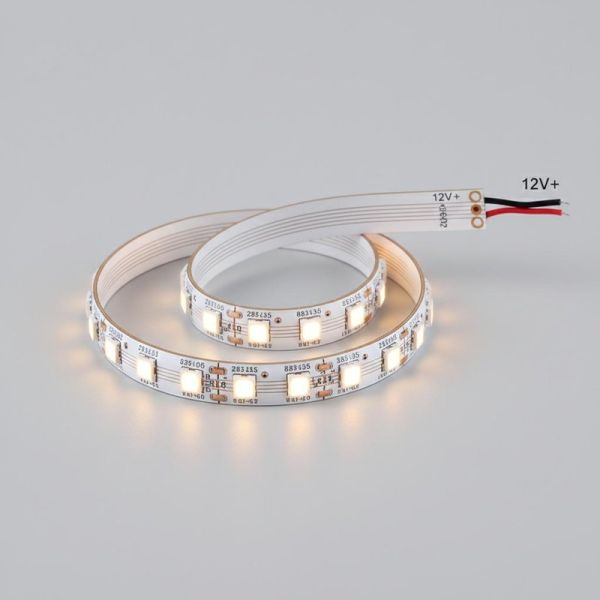

Product Images

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

2835 LED LIGHT 12V Flexible LED FPCB with Double-sided White Film for LED Strip Circuit Board

Certificates and Honors
Please note: All photos on this site are real. Due to changes in lighting, shooting angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded every year and we specialize in all kinds of FPC sample making and customization services. If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, substrate production, wiring, principle design, mold, patch, plug-in and others one-stop service. Please contact us online or email us, and we will provide you with one-on-one service from our professional sales team. Thank you for your time.
