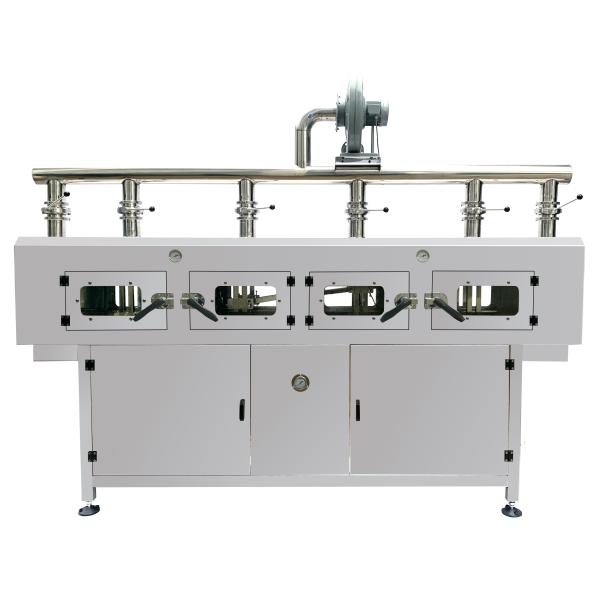

Introduction to Energy Saving Steam Shrink Tunnel with Temperature Controller

This energy-saving steam shrink tunnel is an efficient packaging machine designed for heat-shrink wrapping applications. It uses steam heating with optimized circulation structure to greatly reduce energy consumption and lower production costs compared with traditional models.

Equipped with a precise digital temperature controller, it enables real-time monitoring and stable adjustment of temperature, ensuring uniform and perfect shrink effects for various packaging films without wrinkles or damage.

Made of stainless steel, the machine is durable, easy to clean and maintain. It features stable performance, safe operation, and wide compatibility with bottles, cans, boxes and other products, making it ideal for food, beverage, cosmetics and daily chemical production lines.

high quality steam shrink tunnel for jar containers, used for high speed production line or some speical bottles.

(1) Superb shrink finish with filled or cold bottles

(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.

(3) Steam tubes are made of SS316 with rubber wrapping.

(4) Low running cost, 50~60kg steam/0.3~0.4Mpa.

(5) 6 Steam spray tubes are adjustable for complex shapes of bottles.

(6) Exhausting blower is on the top of tunnel, its speed is adjustable.

(7) Simple manual adjustment, and completed control.

(8) Precise steam control by 3 digital handles for 3 areas, and saving steam.

(9) Cancel outer water collection tray, sealed. Can be used for high speed applications.

(10) Full body of tunnel is made of SS304 stainless steel

(11) Strong and easy 0perational handles on windows.

(12) steam tubes are hided under tunnel, simple and generous

(13) water outlet/water collection tray to avoid getting ground wet.

Parameter for continuous working steam shrink tunnel
