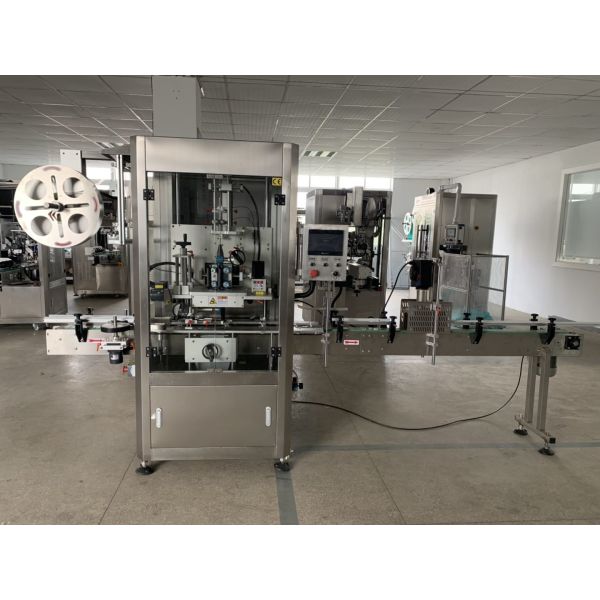

Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Neck bander with Shrinker for Bottle Cap and Neck Sealing
Specifications
Brand Name :
HOWFOND
Model Number :
HF-250M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD11000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 sets/month
Delivery Time :
10-15days
Packaging Details :
export palletized wooden case
material :
304 stainless steel
label material :
PVC PET OPS
speed :
250 bottles per minute
sleeve height :
5-10cm
certificate :
CE
delivery time :
25 days
packing :
export packing
program words :
english
Description

Neck bander with Shrinker Brief Introduction

Sleeve labeling machine, also called sleeves labels applicator or sleeves labels inserting machine ,

which cut sleeves piece by piece and insert the sleeves to bottles , and then shrink the sleeves labels by steam shrinking tunnel or electrical heating tunnel to bottles tightly .

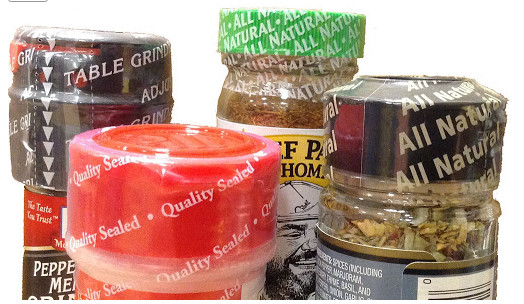

The sleeves can label bottles’ body or seal bottles’ caps and necks.The sleeve labels can be PVC, PET or OPS material,

but the shrink ratio of PET, OPS is much bigger than PVC material, PVC sleeves labels are not degradative material, not good to environment protection.

Instead, PET, OPS sleeves can be degradative.

HF-250M is single head and single driving machine, the max speed 250bottles per minute (by sleeve height 5~10cm) are common used,

meet most user’s requirement.

(1) The frame is made of 304 stainless steel.

(2) Servo system drives the machine.

(3) The applicable bottle on this machine can be around, square flat, curved cup-shaped

(4) Easy to change mandrels and bottles separating worms to suit different bottles.

(5) Unique cutter design, cut mark smoother, quick and easy blade replacement

(6) No bottles, no sleeve inserting.

(7) Mature program makes machines working steady.

(8) Innovative machine structure design ensures excellent durability and unmatched structural quality.

2.Neck bander parameters :

Machine

 Machine model HF-250M
Capacity 250bpm (sleeve height 5~10cm)
Size L*W*H 2000*850*2000mm
weight 600Kgs
Powder supply AC3-Phase 220/380V
Eligibility percent ≥99.5%
Total powder 1.5KW

Shrinkable labels

 Materials PVC,PET,OPS
Thickness 0.03~0.13mm
Labels height 40~200mm
Flat width Max210mm
Inner Dia. Of Labels roll 76mm

Bottles to pack

 Height Max320mm
Diameter Ø28- Ø125mm
Material Glass,Metal ,Plastic
Shapes Round , square, flat , curved cup-shaped bottles

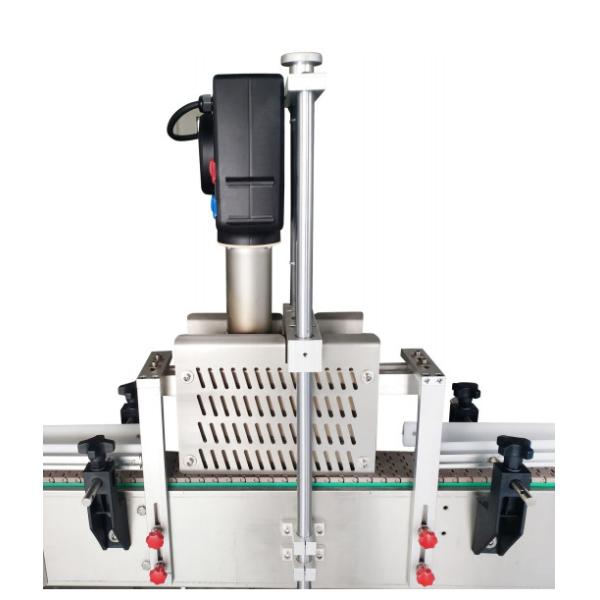

3.Small heat tunnel for bottle cap and neck sealing

4.Packing details for the neck bander with shrinker

Neck bander with Shrinker for Bottle Cap and Neck Sealing

kunshan Howfond Machinery Co.,Ltd.

Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
