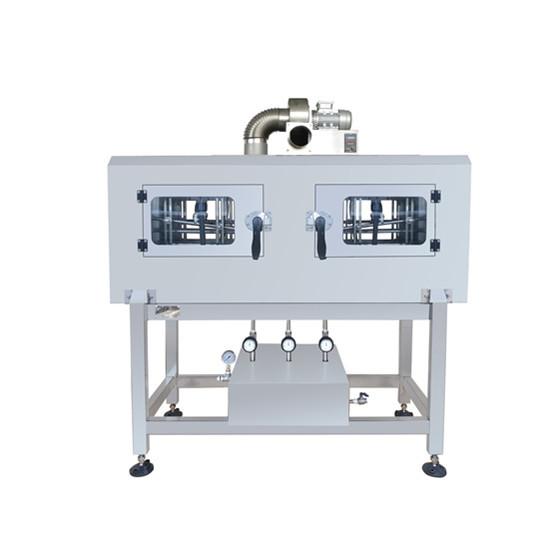

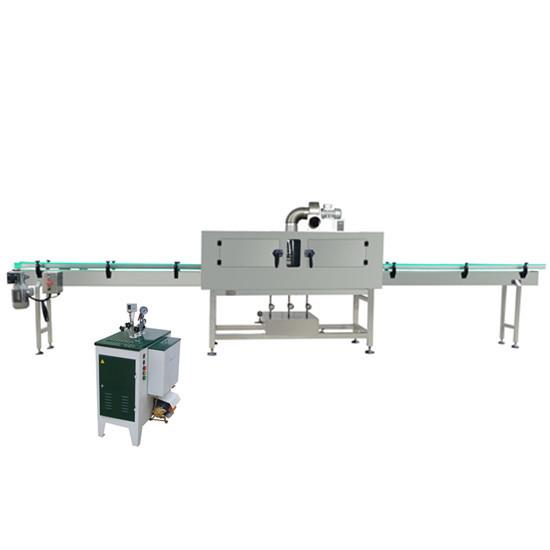

Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Industrial Steam Shrink Tunnel for Plastic Bottles
Specifications
Brand Name :
Howfond
Model Number :
HF-1500M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2200
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50 sets per month
Packaging Details :
export wooden case
material :
stainless steel
length :
1500mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
200kg
Description

1. Industrial Steam Heat Tunnel for Shrink Sleeves​ Brief Introduction :

This industrial steam shrink tunnel is designed for continuous long-time working in factories. It can handle various plastic bottles, containers and packages with high efficiency and stability. The heavy-duty structure ensures reliable performance and long service life under heavy production load.

Industrial Steam Shrink Tunnel for Plastic Bottles

Industrial Steam Shrink Tunnel for Plastic Bottles

Industrial Steam Shrink Tunnel for Plastic Bottles

2.Advantage of Howfond’s Dual Zone Steam Heat Tunnel for Shrink Sleeves :

Uniform Heat: Multi-stage steam manifolds provide 360° consistent heat distribution.
Complex Shapes: Adjustable steam nozzles to fit irregular bottle profiles perfectly.
Energy Saving: Double-layer insulation design reduces steam consumption by 20%.
Quality Control: Integrated water separator and dry steam system for a clean finish.
Safety: UL/CE certified components with automatic pressure relief valves.
Application: Perfect for high-end juice, craft beer, and cosmetic packaging.

3. Steam Shrink Tunnel with Water Cooling System Parameters :

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5
