Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Wrap-Around OPP Labeling Machines with Speed 3000-24000bph
Specifications
Brand Name :
HOWFOND
Model Number :
RRJ012P
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
25000USD
Payment Terms :
Western Union
Supply Ability :
50 sets/month
Delivery Time :
20-35 days
Packaging Details :
export wooden case
color :
gery
speed :
12000bph
label material :
OPP or BOPP／PCV/PET
packing :
export packing
material :
stainless steel
Label sizes :
Length 125-325mm, height 20-190mm
bottle :
Round D40-100mm, Height80-350mm
power supply :
380V/480V±10％
total power :
5kw
air consumption :
0.2M³/min
weight :
1000kg
Description

Brief Introduction

Hot melt glue labeling machine is also called OPP/BOPP labeling machine. RRJ012P is our 3rd generation inline hot glue labeler, with 4 labeling positions, the machine can work at the speed 3000~12000 bottles per hour (500ml). It is widely used for round shape and 0.1~2 liters bottles for juice, soda/mineral water, carbonated drink etc.

This machine can cut OPP,BOPP,plastic and paper labels to meet different requirements.

Wrap-Around OPP Labeling Machines with Speed 3000-24000bph

Advantage of RRJ012P hot melt glue labeling machine

(1) High labeling precision 0.5~1mm.

(2) Steady and constant labeling.

(3) Reliable and Simplicity gluing system, safety and good performance.

(4) Reliable and steady labels cutting system, no need to adjust the cutter again and again.

(5)The cutter is available for OPP,BOPP,plastic and paper labels,

(6) Each piece of labels cost much lower than sleeves labels and sticker labels.

(7) Good look of labeling, and higher class

(8) Simplicity design, good appearance.

RRJ012P PARAMETER

Items Full Auto Linear Hot Melt Glue Labeling Machine
Model RR6000P
Power supply 380V±10％
Total power 5KW
Labeling type Wrapping round, labels in roll
Bottles Round ∮45-100mm , Height80-300mm
Label sizes Length 135-300mm, height 20-140mm
Glue coating Two ends of the labels, 10mm
Labeling precision ±0.5~1mm
Capacity 6000BPH(500ML)
Glue consumption 30~40Thousands bottles need about 1kg(labels height 50mm)
Compressed air MIN5.0bar MAX8.0bar
Air consumption 0.2M³/min
Total weight 1000kg
Machine sizes L=2000 W=1300 H=1800 mm

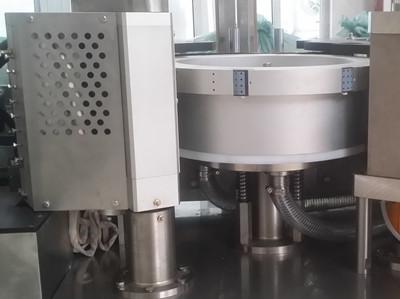

Glue Melt System

  • Reliability
  • High quality heating element, long working life to 10 years.
  • A compact, ergonomic design and corner mounted hose connections make this very versatile, working steady on the machine
  • Simplicity
  • Just need set melt temperature on the operation panel and put solid glue in the hopper

Wrap-Around OPP Labeling Machines with Speed 3000-24000bph

Glue Coating system

Good Performance

Accurate, proportional temperature control for hopper, hoses and applicator. The glue coating is smooth and well distributed to labels’ ends

Safety

The whole glue system is covered inside by protecting device to protect operator away from hot water and running roller.

Reliability and steady

Ergonomic design& simplified access

Wrap-Around OPP Labeling Machines with Speed 3000-24000bph

Wrap-Around OPP Labeling Machines with Speed 3000-24000bph

Parameters of glue system

System Function
Hopper capacity 2kg/30minutes
Operation temperature 150~200℃
Glue melt rate (per hour) 3~4kg/hour
Piston Pump No need
Compressed Air No need
Pump rate 0.4~0.6kg/min
Gear pump 1.5cc/rev
Gear pump motor 0.25kw
Hose output 1
Temperature control accuracy ±1℃
Control signal voltage 24VDC
Glue viscosity 500~50000cps

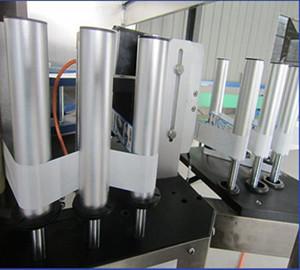

Labels cutting system

The cutter is formed by two blades: moveable blade and unmovable blade, when the roller is running,

the movable blade on the roller is also rotary running, so the movable blade will touch the unmovable blade every circle,

at the same time labels will be cut down while the labels go through the two blades.

The whole cutter is design by considering of avoid shaking which do harms to cutting and labeling precision

As well as cutter’s life. so, the cutter is made bulk metal and high manufacturing precision.

By the design and outstanding manufacturing, the machine always works steady.

Packing details :

wooden case size L2020 *W1320 *H1820 mm
gross weight 1030kg
