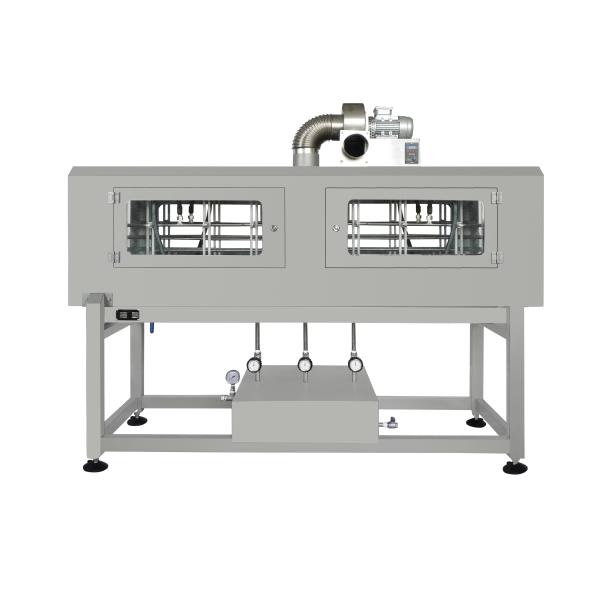

2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
Specifications
Brand Name :
Howfond
Model Number :
HF-2000M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
2300/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50 sets per month
Packaging Details :
plastic film with PET belts and export wooden case
material :
stainless steel
length :
2000mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
220kg
steam spray tubes :
SS316
Description

1. 2m Sleeves Steam Shrink tunnel with Adjustable Conveyor Brief Introduction

This steam shrink sleeve tunnel equipped with adjustable conveyor belt, suitable for various sizes of bottles, jars and containers. Users can adjust speed and temperature according to different products, achieving wrinkle-free and tight shrink labels. Widely used in daily chemical, food and beverage industries.

2m Sleeves Steam Shrink tunnel with Adjustable Conveyor

2m Sleeves Steam Shrink tunnel with Adjustable Conveyor

2m Sleeves Steam Shrink tunnel with Adjustable Conveyor

2m Sleeves Steam Shrink tunnel with Adjustable Conveyor

2.Advantage of Howfond’s steam shrink tunnel with temperature controller.
(1) Superb shrink finish with filled or cold bottles

(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.
(3) Steam tubes are made of SS316 with rubber wrapping
(4) Low running cost, 50~60kg steam/0.3~0.4Mpa.
(5) 6 Steam spray tubes are adjustable for complex shapes of bottles.
(6) Exhausting blower is on the top of tunnel, its speed is adjustable.
(7) Simple manual adjustment, and completed control.
(8) Precise steam control by 3 digital handles for 3 areas, and saving steam.
(9) Cancel outer water collection tray, sealed. Can be used for high speed applications.
(10) Full body of tunnel is made of SS304 stainless steel
(11) Strong and easy 0perational handles on windows.
(12) steam tubes are hided under tunnel, simple and generous

3. steam shrink tunnel for jar containers Parameters

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5

2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
2m Sleeves Steam Shrink tunnel with Adjustable Conveyor
