Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
Specifications
Brand Name :
Howfond
Model Number :
HF-1500M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2100
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50 sets per month
Packaging Details :
export wooden case
material :
stainless steel
length :
1500mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
200kg
Description

1.Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles Brief Introduction

Our stainless steel steam heat shrink tunnel provides uniform and stable heating performance. It is widely used in food, beverage and cosmetic industries. Compact structure, small footprint, ideal for factories with limited space. The machine is durable, corrosion-resistant and easy to clean, meeting international packaging standards.

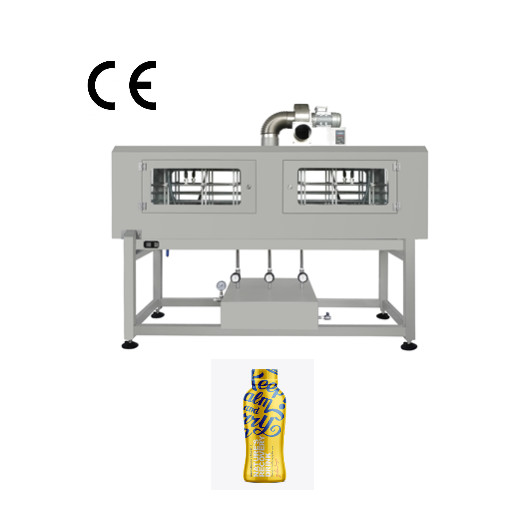

This is a high efficiency automatic steam shrink tunnel machine specially designed for plastic bottles, beverage bottles and cosmetic containers.

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles

Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles

Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles

2.Advantage of Howfond’s steam shrink tunnel for full body shrink labels

(1)Full body of tunnel is made of SS304 stainless steel.

(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.
(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out.

3.steam shrink tunnel for high speed packaging line Parameters

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5

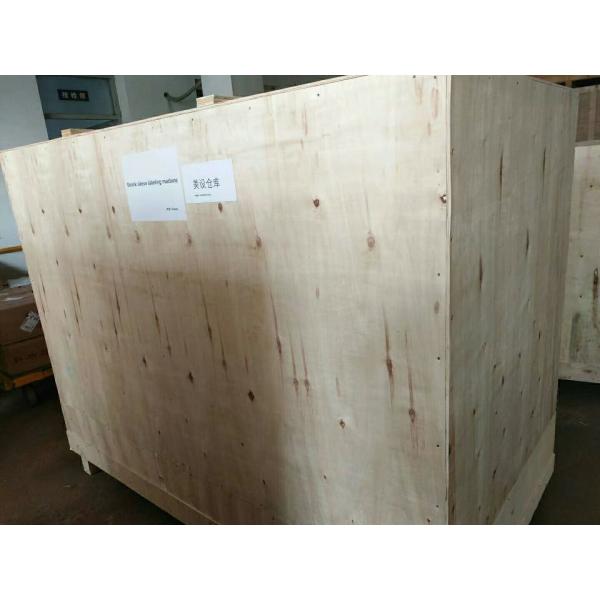

Stainless Steel Steam Heat Shrink Tunnel Machine wooden case :
Stainless Steel Steam Shrink Tunnel Machine for Beverage Bottles
