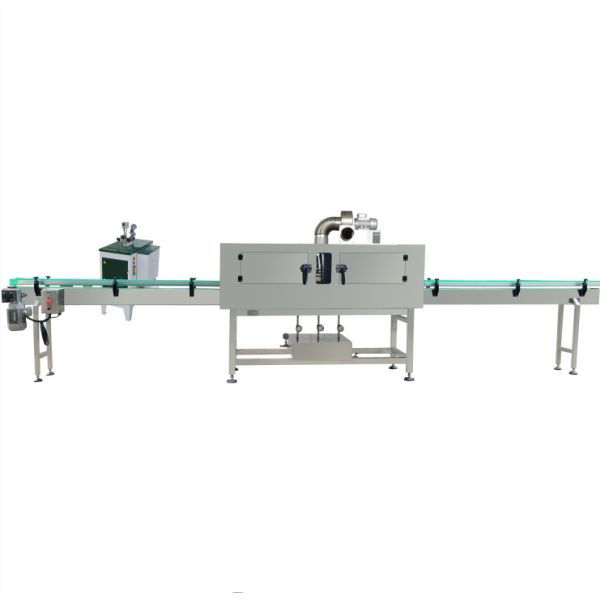

Small Steam Shrink Tunnel for Cosmetic Containers
Small Steam Shrink Tunnel for Cosmetic Containers
Small Steam Shrink Tunnel for Cosmetic Containers
Small Steam Shrink Tunnel for Cosmetic Containers
Small Steam Shrink Tunnel for Cosmetic Containers
Small Steam Shrink Tunnel for Cosmetic Containers
Specifications
Brand Name :
Howfond
Model Number :
HF-1500M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2000
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500 sets per month
Packaging Details :
export wooden case
material :
stainless steel
length :
1500mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
200kg
Description

Keywords :


small steam shrink tunnel, cosmetic steam tunnel, mini steam shrink machine, cream jar steam tunnel, small bottle steam tunnel, compact steam packaging machine

1. Small Steam Shrink Tunnel for Cosmetic Containers Brief Introduction:

This small steam shrink tunnel is perfect for cosmetic bottles, cream jars and small plastic containers. It features compact design, easy operation and stable performance. Ideal for small businesses, laboratories and cosmetic workshops with low to medium production capacity.

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of steam shrink tunnel for bottled drinking water

. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

Small Steam Shrink Tunnel for Cosmetic Containers

Small Steam Shrink Tunnel for Cosmetic Containers

Small Steam Shrink Tunnel for Cosmetic Containers

2.Advantage of steam shrink tunnel for juice bottles :

(1)Full body of tunnel is made of SS304 stainless steel.

(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.
(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out.

3. Parameters FOR Economic steam shrink tunnel

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5
