Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Specifications
Brand Name :
Howfond
Model Number :
HF-1500M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2300
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50 sets per month
Packaging Details :
export wooden case with plastic film and PET belts
Delivery Time :
7-10 days
material :
stainless steel
length :
1500mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
200kg
entrance width :
130-210mm
conveyor speed :
0-35m/minute
power :
0.25kw
steam consumption :
24kg/hour
Description

Keywords :
dual zone steam tunnel, double zone steam shrink tunnel, thick sleeve steam tunnel, professional steam shrink machine, large bottle steam tunnel

Dual Zone Steam Shrink Tunnel for Shrink Sleeves introdcution :

This dual zone steam heat tunnel provides two-stage heating for better shrink effect. It is especially suitable for thick shrink sleeves, large bottles and irregular containers. Strong steel structure, long service life, widely used in professional packaging factories with high requirements.

Dual Zone Steam Shrink Tunnel for Shrink Sleeves

Dual Zone Steam Shrink Tunnel for Shrink Sleeves

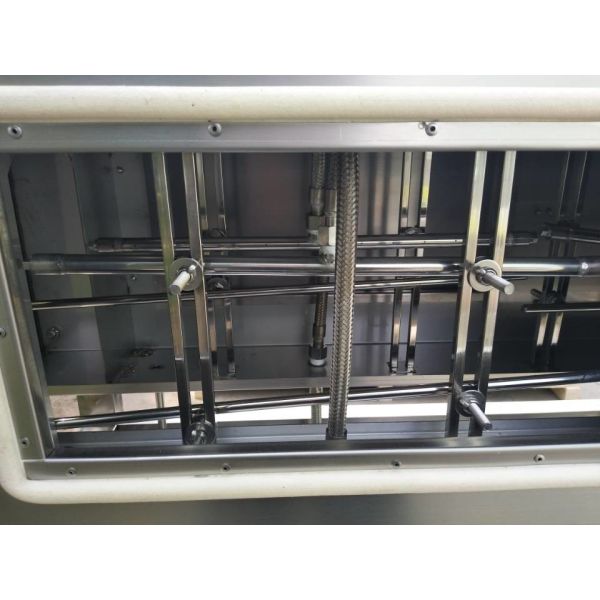

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel.

Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

Dual Zone Steam Shrink Tunnel for Shrink Sleeves

Conveyor , steam generator and air blowing dryer which used together with steam tunnel

Dual Zone Steam Shrink Tunnel for Shrink Sleeves

Dual Zone Steam Shrink Tunnel for Shrink Sleeves

Dual Zone Steam Shrink Tunnel for Shrink Sleeves

As one part of sleeve applicator ,steam tunnel quality is very important , low quality will rust soon and make bad shrinking
our steam pipes is SS316 are with Electrolytic polishing which will make the steam pipes not rust .
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves

2.Advantage of Howfond’s Steam shrink tunnel.

(1)Full body of tunnel is made of SS304 stainless steel.

(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.
(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out.

3. Parameters

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5

Packing details:
Dual Zone Steam Shrink Tunnel for Shrink Sleeves
Dual Zone Steam Shrink Tunnel for Shrink Sleeves

kunshan Howfond Machinery Co.,Ltd.

Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
