Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Automatic Cap Feeding Machine and Cap Screwing Machine
Specifications
Brand Name :
HOWFOND
Model Number :
HF-C150
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD9500/set
Supply Ability :
20 sets/month
Delivery Time :
15-25 days
Packaging Details :
wooden case
material :
ss304
size :
1.1mx0.9mx1.7m
weight :
250kg
bottle material :
glass/plastic
Power supply :
AC220V 1 phase 50/60Hz
capping method :
screw capping
Description

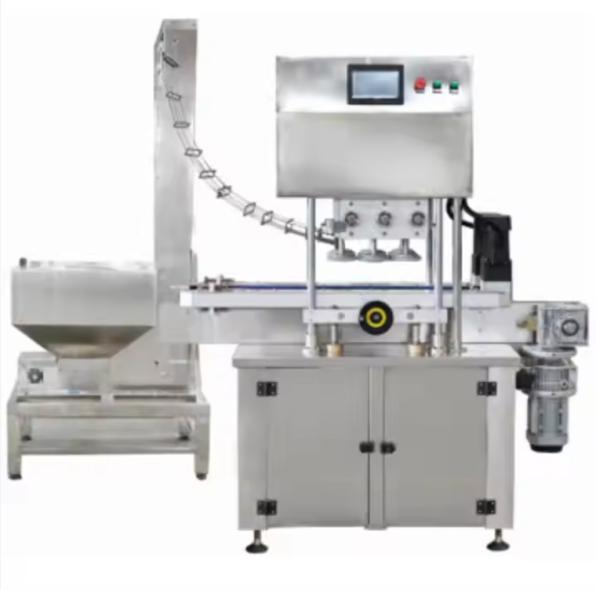

1.Automatic Cap Feeding Machine and Cap Screwing Machine Introduction :

Automatic Cap Feeding Machine and Cap Screwing Machine is widely used for glass bottle steel caps/screw plastic caps and plastic bottle thread caps . It equips positioning plate for interval running, capped by one , two or three magnetic moment rotating heads. The machine has practicability in field of chemical, foodstuff etc. It is real ideal equipment for bottle capping. It also applied to seal aluminum cap, theft proof cap, screw- thread cap etc.

Rotating disc realize location ,it is easy to change specifications and has big adjust range.

Adopt dividing bottle plate fix position.

Come in and out bottles is smooth, frequency conversion adjusting speed and easy to connection.

The structure for Servo Motor Capping Machine is simple ,the operation is convenient and easy to maintain.

Automatic Cap Feeding Machine and Cap Screwing Machine


Automatic Cap Feeding Machine and Cap Screwing Machine

Automatic Cap Feeding Machine and Cap Screwing Machine

Automatic Cap Feeding Machine and Cap Screwing Machine

Automatic Cap Feeding Machine and Cap Screwing Machine

2. Automatic Cap Feeding Machine and Cap Screwing Machine Parameters :

material ss304
operation PLC
Size 1.1mx0.9mx1.7m
weight 250kg
cap size Diameter: 12--120mm
Capping speed 30-40b/min
power 0.35-0.75Kw
Power supply AC220V 1 phase 50/60Hz
Compressed air 0.4-0.6MPa
bottle material glass/plastic
capping method screw capping

Automatic Cap Feeding Machine and Cap Screwing Machine

Automatic Cap Feeding Machine and Cap Screwing Machine

Automatic Cap Feeding Machine and Cap Screwing Machine

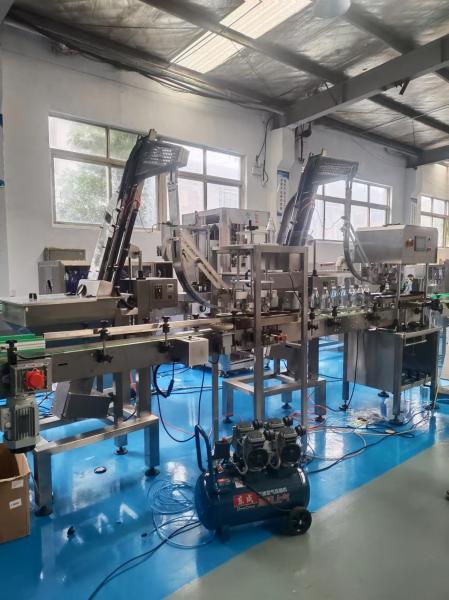

we can provide the whole line from turntable + Automatic Round Bottle Magnetic Pump Liquid Filling + Automatic Cap Feeding Machine and Cap Screwing Machine

cap feeding machine with two sets cap feeding mold and a set customized machine which has screw capping and pressing cap

Automatic Cap Feeding Machine and Cap Screwing Machine

Automatic Cap Feeding Machine and Cap Screwing Machine

welcome to send us inquiry about Automatic Cap Feeding Machine and Cap Screwing Machine
