Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
Specifications
Brand Name :
HOWFOND
Model Number :
DB-100s
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2500
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 sets/month
Delivery Time :
10-15days
Packaging Details :
export wooden packing
Air tubes :
15~20 pieces
certificate :
CE
Powder supply :
AC 3Phase :220V~480V
Entrance width to suit conveyor :
100mm or customized
Length of main tube :
0.7~0.8m
Blowing motor :
1 set/5.5kw
size :
1.1m*0.72m*1.7m
Description

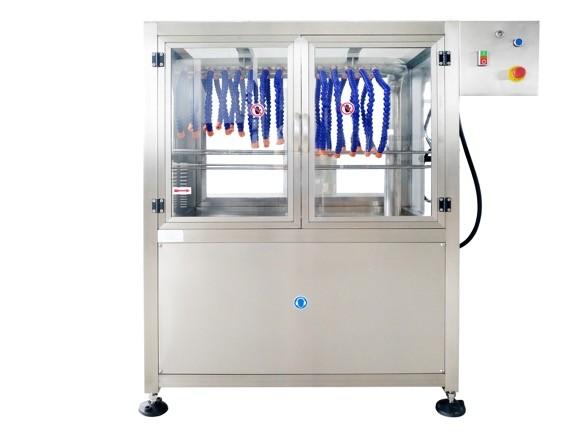

Spider blowing dryer Introduction :
BD-100S Blowing Dryer is made as CE standard.
It is used to remove water after sleeves shrinking by steam tunnel for easy packing or inkjet codes printing on bottles.
The dryer can remove 80~90% water on the surface of bottles.
BD-100S Blowing Dryer have following Features:

Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel

Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
1 . Made as CE standard,
(1) High–performance 5.5 kw blower.
(2) Fame material: SUS 304 stainless steel.
(3) Overload protection, for safety.
(4) Simple and clean appearance
(5) 15 pieces tubes at different length, one main steel tube with 70~80cm
(6) Inlet air protection to prevent debris
(7) wind dosage is adjustable.
(8) wind knife position is adjustable at all directions.
(9) there is 1.1m rails bars inside.
(10) water collection tray has an angle, so that water leak to the ground.
(11) Noise shelter

Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel

Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel
2. Blowing Dryer Machine For Sleeve Labeling Machine






Machine

Machine modelBD-100s
Powder supplyAC 3Phase :220V/380V/440V
Total powder5.5KW
Entrance width to suit conveyor 100mm or customized
Length of Blowing knifes0.5m
Blowing motor 1 set/5.5kw~7.5kw
Overload protectionYES
Frame material SS304 steel
Weight250Kgs
Size L*W*H 1.1m*0.85m*1.7m
















3. Noise shelter


4.Wooden box sizes

ModelsBlower dryer
Packing wooden case (L×W×H) m1.6×0.9×1.75m
Volume (m3 )2.6
Weight(kg) wooden box included250kg

Air Blowing Dryer Machine For Sleeve Labeling Machine or Steam Shrink Tunnel

kunshan Howfond Machinery Co.,Ltd.

Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
