JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
Specifications
Brand Name :
CF STEEL
Model Number :
1.2083 SUS420J2 420 S136 4Cr13
Certification :
ISO/Mill Certificate/SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000t/Month
Delivery Time :
7-30 days
Packaging Details :
standard export packing or customers' request.
Standard :
DIN,ASTM,AISI,GB,JIS
Surface treatment :
Black / Milling / Turned
Hardness :
Pre-hardened HRC 30-36; Annealing <235
Test :
SGS / Ut 100% / Element Testing
Heat Treatment :
Annealing +Q+T
Technology :
Forged or Hot Rolled
Description

1.2083 420 4Cr13 S136 Stainless Steel Round Bar of Alloy Steel

1.2083 mould steel is a kind of plastic mould steel with high chromium element which is up to 13%.1.2083 mould steel has good wear resistance and good polishing, it widely used for acid proof plastic mold.
Similar grade:DIN 1.2083/X42Cr13/X40Cr14, AISI 420, JIS SUS420J2,Gost 4Cr13

JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar
1,Equivalent grades:

GB DIN AISI JIS
4Cr13 1.2083 420 S136


2,Chemical composition (%)

Steel Grade Chemical Composition(%)
C Si Mn P S Cr
1.2083 0.36-0.42 ≤1.00 ≤1.00 ≤0.030 ≤0.030 12.50-13.50
SUS420J2 0.26-0.35 ≤1.00 ≤1.00 ≤0.035 ≤0.030 12.00-14.00
420 0.26-0.40 ≤1.00 ≤1.00 ≤0.040 ≤0.030 12.00-14.00
S136 0.38 0.9 0.5 ≤0.040 ≤0.030 13.6
4Cr13 0.36-0.45 ≤0.60 ≤0.80 ≤0.035 ≤0.030 12.00-14.00

3,Features:
1) Excellent corrosion resistance;Excellent abrasion resistance and elasticity;
2) Excellent high-temperature abrasion resistance;
3) medium toughness,dimensionally stable,high compressive strength;
4,Application:
1) highly stressed cutting and punching tools for thin sheets;
2) stone processing tools and knives for paper and plastics,shear knives
3) Chemical Resistance plastic mold,Corrosion of thermoplastic plastics;
5,Heat Treatment:
Annealing : 810 - 830 °C
Hardness after annealing : Max.230 HB
Stress relieving: Approx.650 °C
Hot forming: 1050 - 850 °C
Hardening: 970 - 990 °C
Quenching media: Oil, Vacuum
Hardness after quenching: 30 - 36 HRC

6,Hardness:Prehardened 30-36 HRC
7,Available size(mm):
Flat Bar Size(mm) Round bar Size(mm)
Thickness Width Length Diameter Length
10-300 155-2200 2000-6000 20-300 3000-6000


8,Package:We provide standard export packing or according to customers' request.
9,Delivery:For abundant stock, 7-15 days.For customized products, 30-50 days


Strict Quality Control
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar

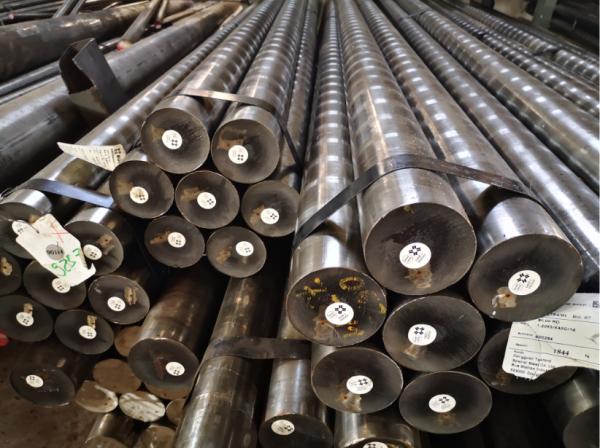

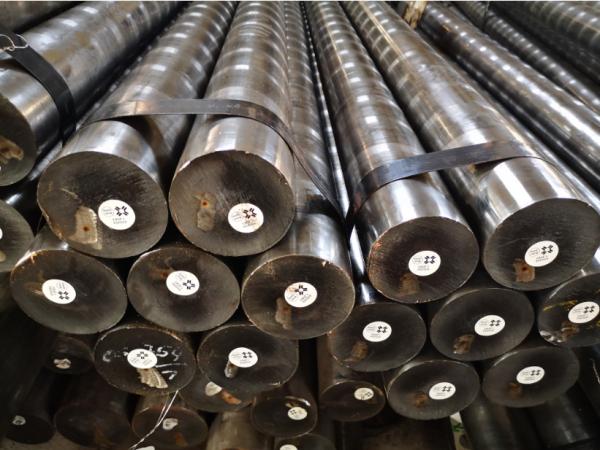

Loading Photo
JIS Standard Hot Rolled Steel Bar 1.2083 420 4Cr13 S136 SS Round Bar

Our Service For You
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for your choices.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
4. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
